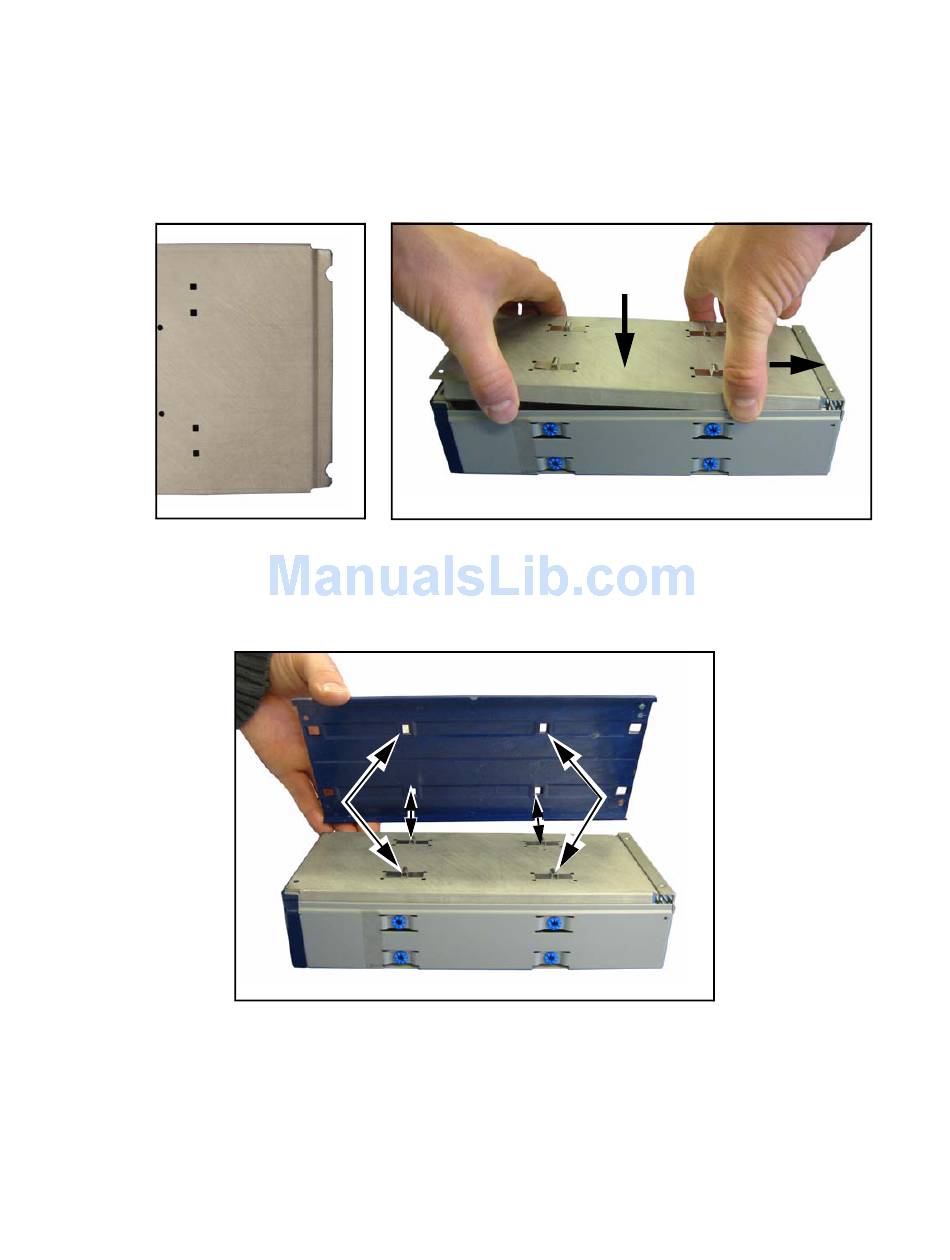

8. Replace the ESD panel:
• Slide the end with the cut-outs (Figure 3-16) into its place at the pogo-pad
end of the pack (A in Figure 3-17).
• Pinch the sides of the panel in (B in Figure 3-17) while pushing down (C in
Figure 3-17) until the entire ESD panel lays flat in the pack.
Figure 3-16
The cut-outs.
9. Replace the bottom plate on the pack, making sure that it matches up with the
tabs on the ESD panel (Figure 3-18).
Figure 3-18
10. Use a #1 Phillips screwdriver to tighten the four or six screws that secure the
bottom plate to the media pack.
11. Proceed to Finish on page 36.
Chapter 3. Troubleshooting RXT Media
B
Figure 3-17
Replacing the ESD panel.
Matching the bottom plate to the ESD panel.
33
B
C
A
