Replacing a Disk Drive in
Silver and Green RXT Media
Use this process to replace a 3.5-inch disk drive in Silver and Green RXT media.
Opening the Media Pack
1. Carefully turn the RXT media pack upside-down.
2. Use a #1 Phillips screwdriver to remove the screws that secure the pack's bottom
(Figure 3-3 and Figure 3-4).

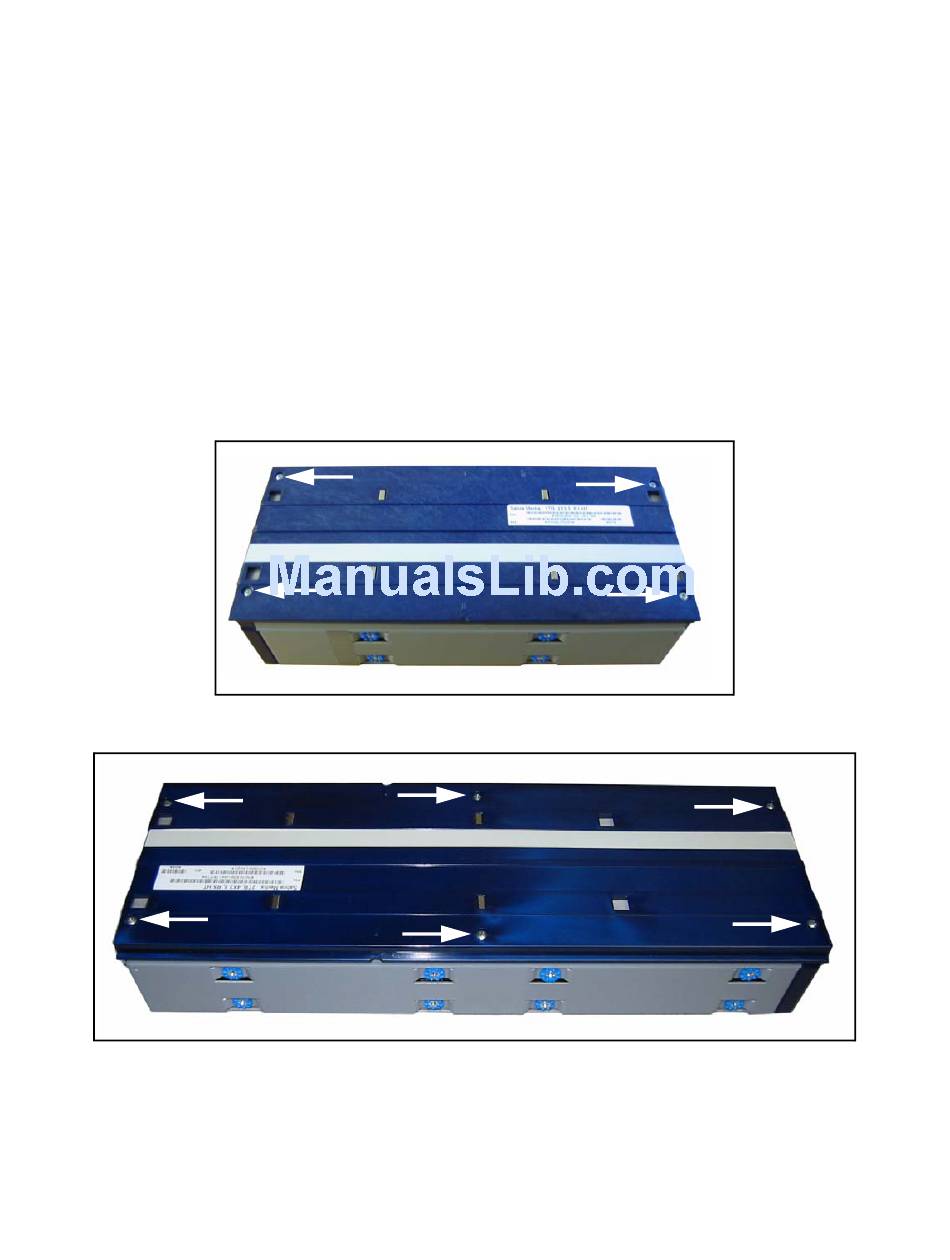

Figure 3-3
Figure 3-4
An Green RXT media pack with six screws to remove.
3. Remove the bottom panel and set it aside.
Chapter 3. Troubleshooting RXT Media
An Silver RXT media pack with four screws to remove.
