Spectra Logic Spectra RXT Media Troubleshooting Manual page 26

4. Remove the electro-static discharge (ESD) panel (Figure 3-5) by lifting up first
from the end with the overlapping tab (A), then sliding the panel out from the
other end of the media pack (B).
Figure 3-5
5. Carefully turn the RXT media on its side so that you have access to one side of
the pack.
6. Proceed to Disconnecting the Disk Drive on page 27.
Chapter 3. Troubleshooting RXT Media
A

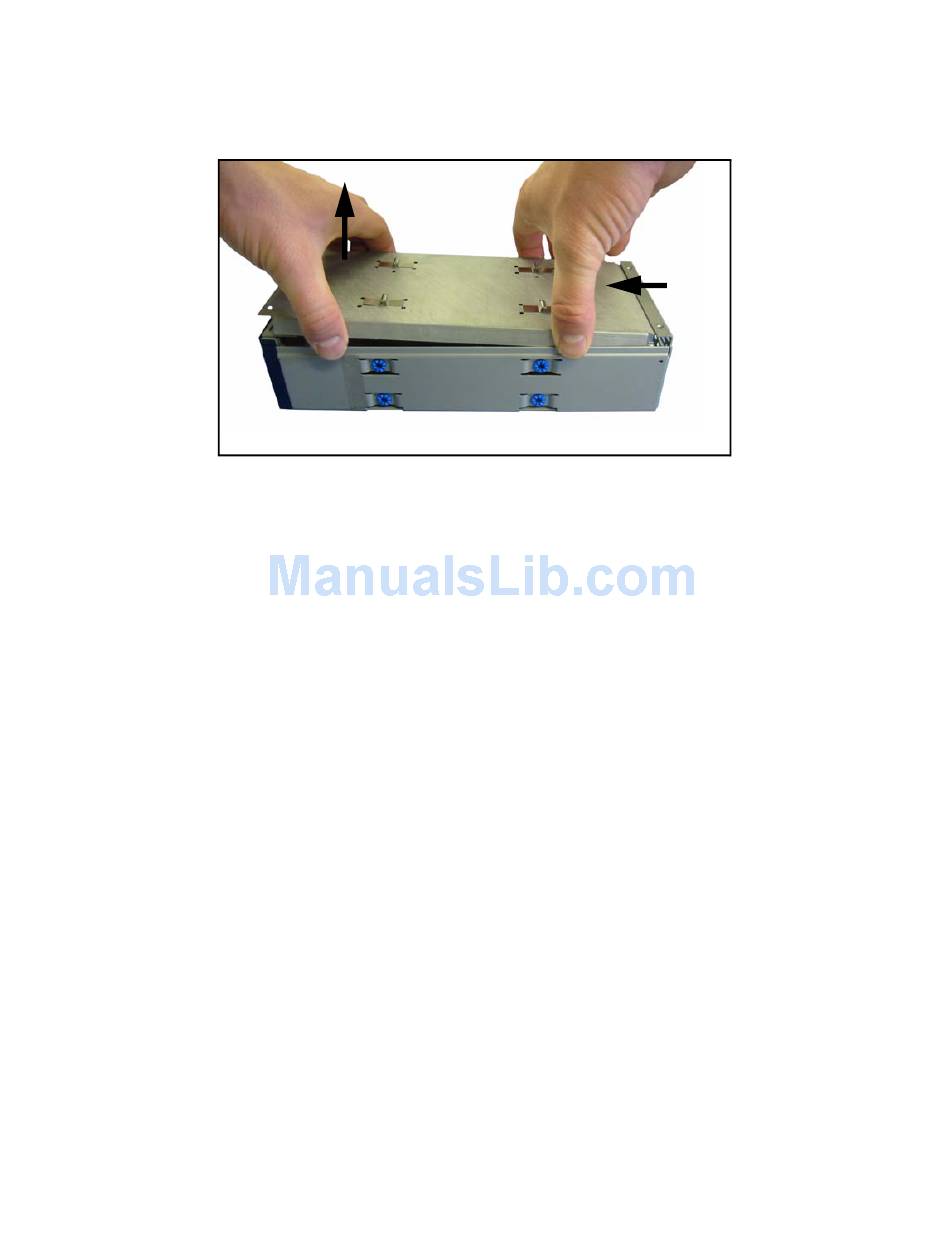

Removing the ESD panel (Silver media pack shown).
26
B
