5. Use a #2 Phillips screwdriver to loosen the screw on the bracket that secures the
connector to the disk drive (Figure 3-10).

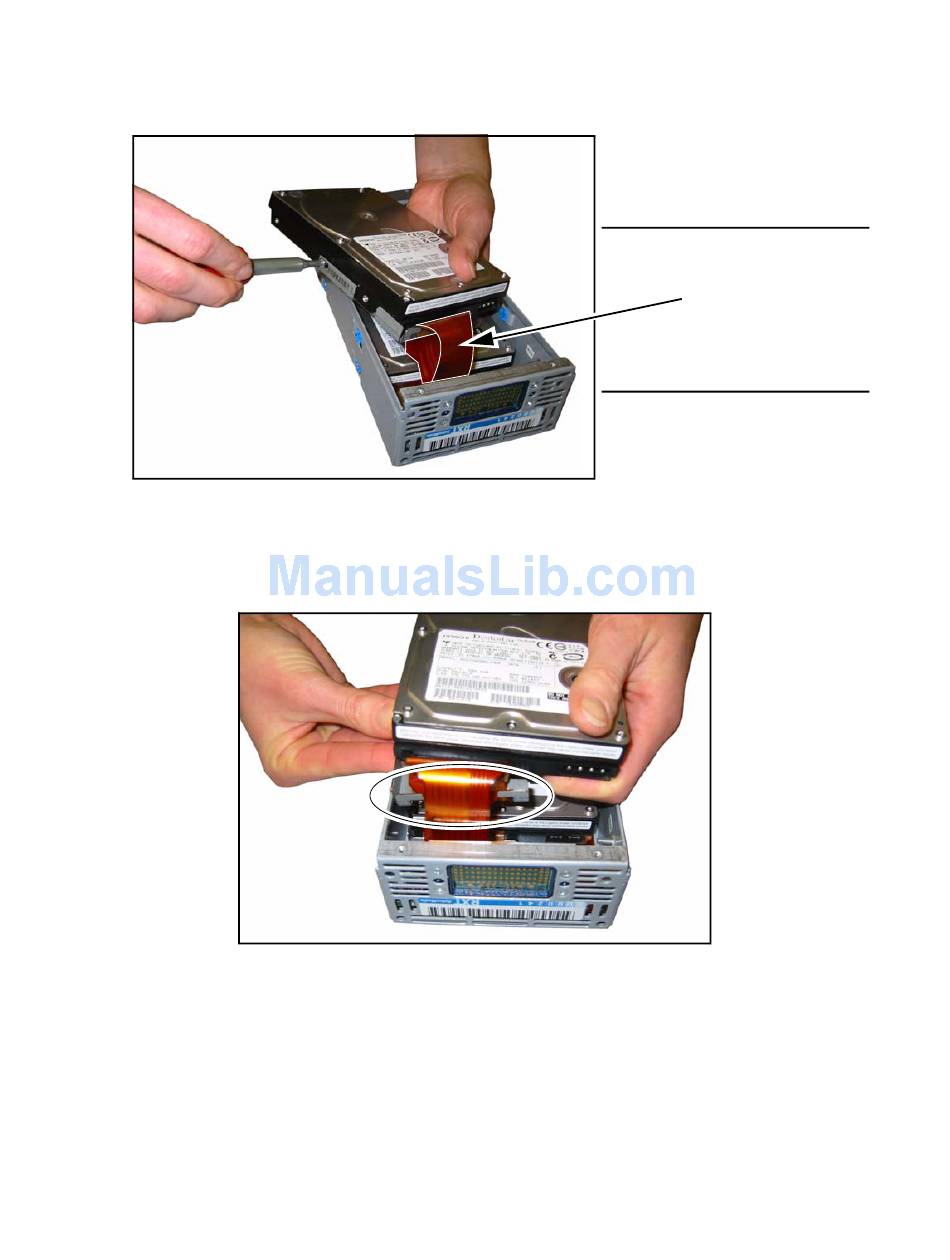

Figure 3-10
The bracket screw (Silver media shown).
6. Carefully remove the bracket from the disk drive, sliding it first down the cable,
then off (Figure 3-11).
Figure 3-11
Chapter 3. Troubleshooting RXT Media
o
Sliding the bracket off the connector.
29
Caution: Take care not to
damage the
flex circuit;
keep the cable
as straight as
possible.
