Installing the New Disk Drive in Silver and Green RXT Media
1. Replace the failed disk drive with the new disk drive and plug in the disk drive
connector.
2. Carefully replace the bracket that secures the connector to the disk drive, sliding
it first up the cable, then into place. It must sit flush against the disk drive
(Figure 3-13).

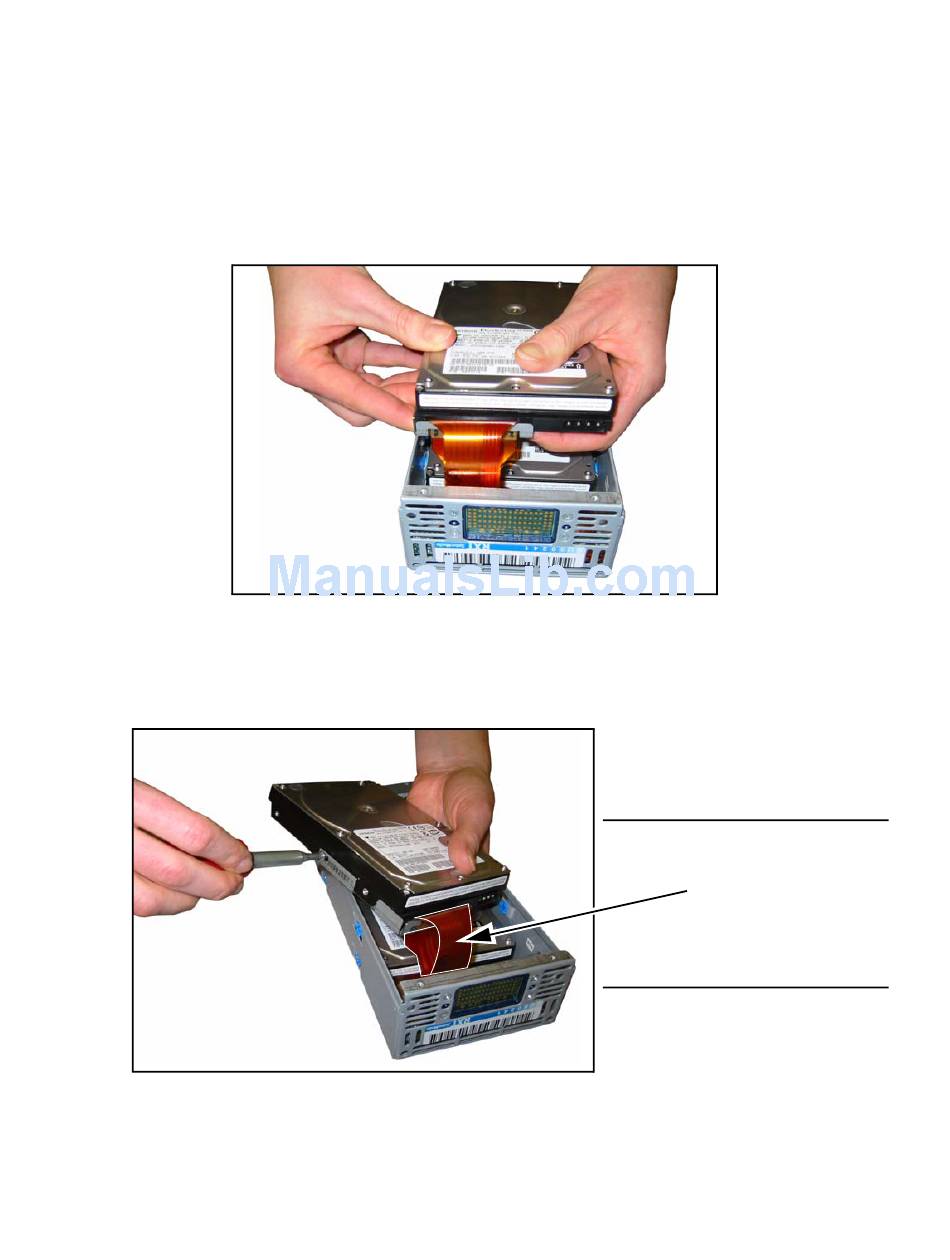

Figure 3-13
3. Use a #2 Phillips screwdriver to tighten the screw that secures the bracket to the
disk drive (Figure 3-14).
Figure 3-14
Securing the bracket to the disk drive.
Chapter 3. Troubleshooting RXT Media
o
Replacing the bracket on the connector.
31
Caution: Take care not to
damage to the
flex circuit;
keep the cable
as straight as
possible.
