EVAL-M7-D112T user guide
iMOTION™ evaluation board for smart driver
System and functional description
2.1.2 iMOTION
To test and evaluate EVAL-M7-D112T, users need to calculate the variable parameters for the motor using the
configuration wizard in the iSD tool. They can then move to the dashboard window to tune the motor. For this,
the iMOTION Solution Designer tool must be installed on the computer. The software can be downloaded
TM
from Infineon's website.
Note: Please note that the iMOTION
package version V5.01.17. Some features may change in different versions. Please refer to the user
guide of iMOTION

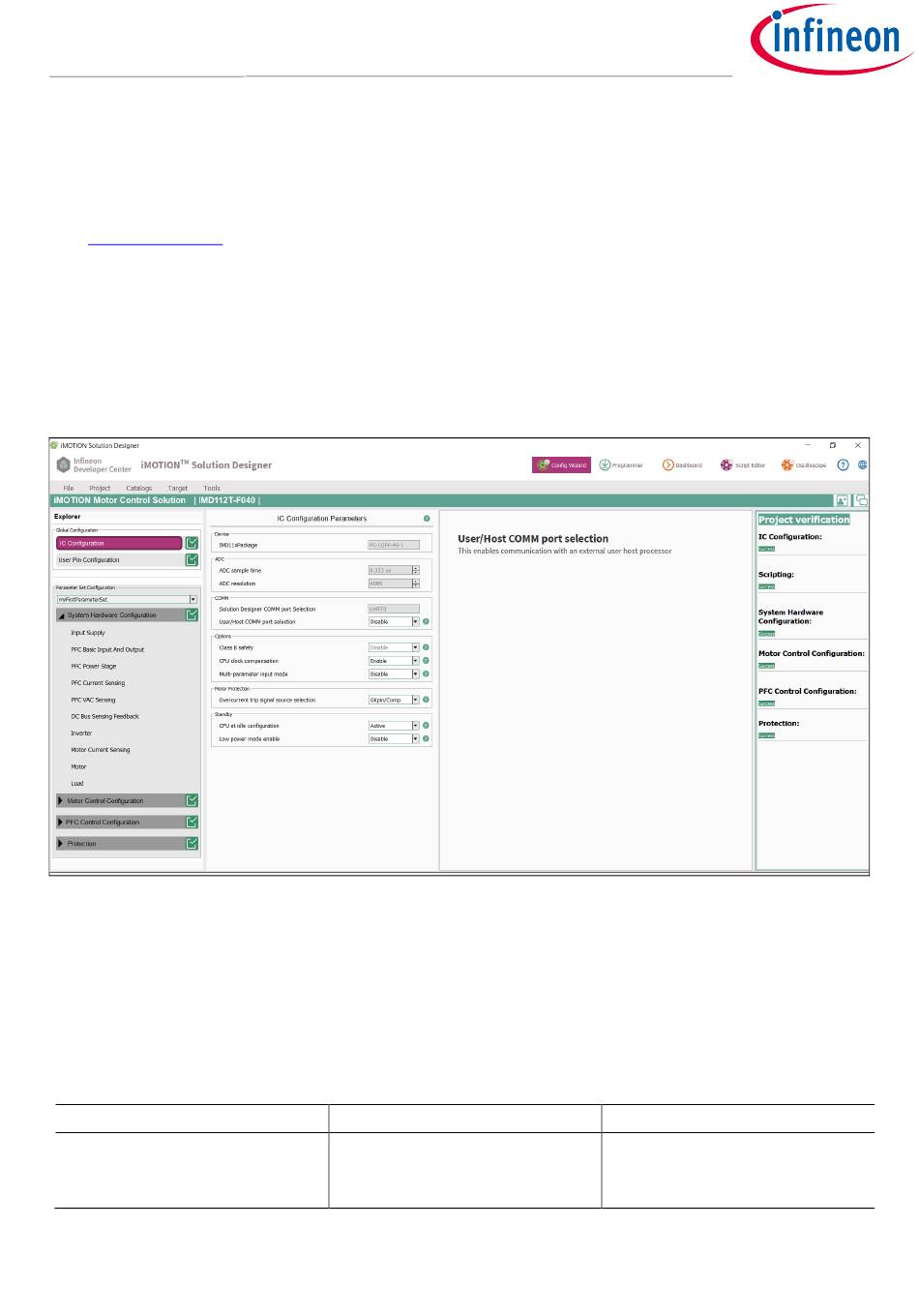

Figure 4 shows the parameter configuration page of the wizard. Users need to set all parameters related to
system hardware design and motor under test. Please refer to [2] for details.
Figure 4 iSD Configuration page
Table 3 lists key parameters that need to be set in the configuration wizard to set up the system based on the
evaluation board. The remaining group of parameters also need to be set by users in wizard of iSD, such as
Overvoltage/Undervoltage protection, fault conditions, startup setting, and so on.
Please note that some values listed in Table 3 are based on the power board, EVAL-M7-HVIGBT-PFCINV4. These
values should be changed if a different power board is used.
Overview table for parameter configuration in the wizard
Table 3
Parameter
Motor control configuration
development tool
TM
TM
development tools described here are based on the released iSD
TM
Solution Designer's relevant version.
Value
Fc < 20 kHz
Comment
Key parameter for selecting IC
working status
9 V1.0
2023-6-30
