System design

3 System design
3.1

Schematics

The schematics of IMD112T control board, EVAL-M7-D112, include digital Hall feedback inputs and analog
position feedback input terminals. The onboard debug circuitry is placed on the control board and users can
conveniently tune the board using a USB cable. The onboard debug circuitry has an isolation function between
the computer's USB port and the IMD112T control board. An optional communication interface, iMOTION
connector (J5) is also on the board. The two resistors, R110 and R111, should be removed when using the
iMOTION Link debug tool.
TM
IMD112T supports boost PFC topology. Figure 8 shows the boost PFC topology of the EVAL-M7-HVIGBT-
PFCINV4 board.

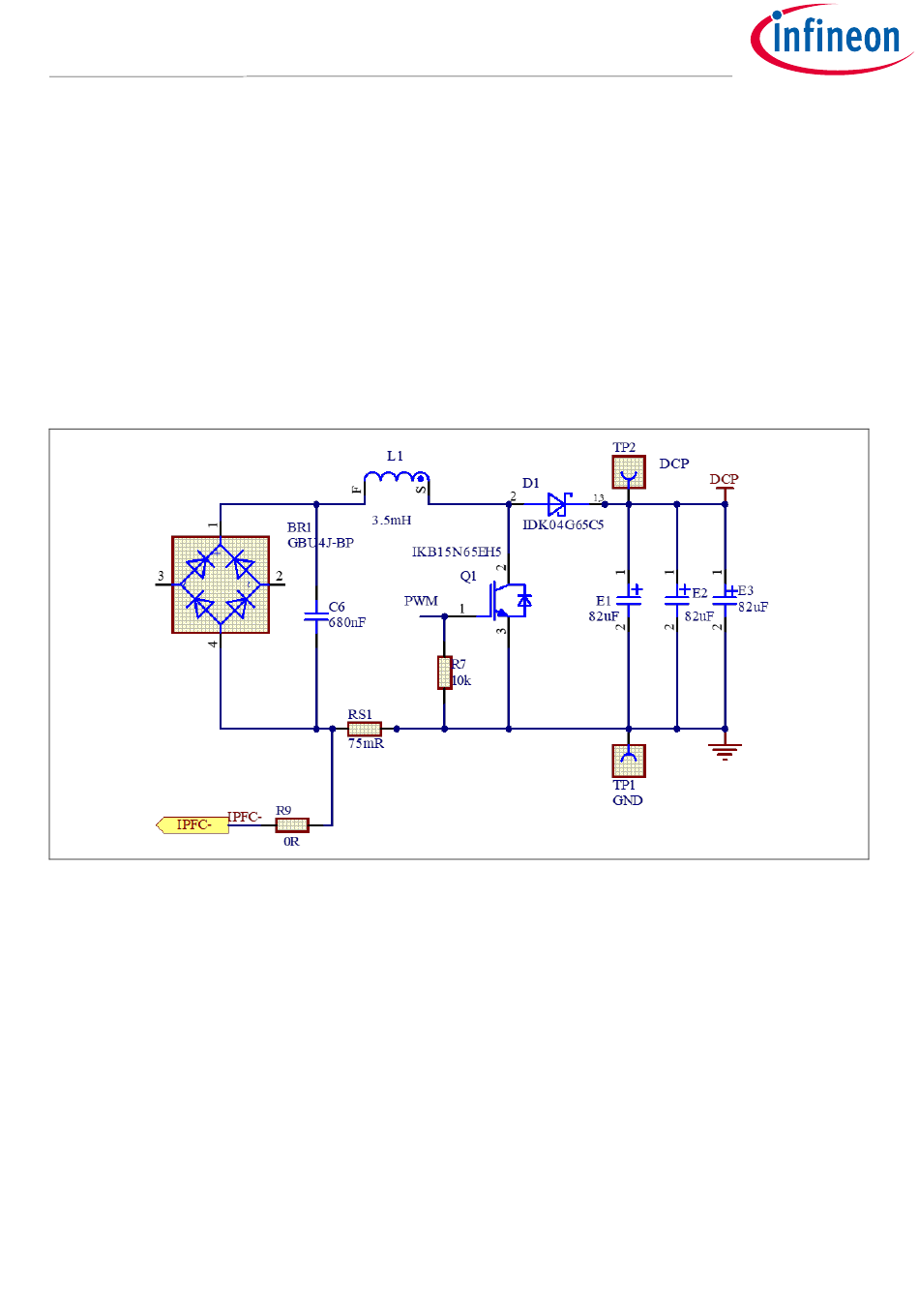

Figure 8 Boost PFC circuitry
Figure 9 shows the schematic of the smart driver, IMD112T. The complete schematics are available in the
download section on the homepage of Infineon's website. Login credentials are required to download this
material.
