Summary of Contents for Hermle Z 207 H
- Page 1 HERMLE Z 207 H User Manual...
-
Page 3: Table Of Contents
Pre-Selection of Running Time ........................16 2.4.3 Pre-Selection of Brake Intensity and Acceleration..................16 Radius Correction ............................17 Program ................................18 2.6.1 Storage of Programs ............................. 18 2.6.2 Recall of Stored Programs ..........................19 2.6.3 Leaving Program Mode ..........................19 © Hermle Labortechnik GmbH Z207H_V1.22_eng... - Page 4 EG – Conformity Declaration ........................... II Table 1: Technical Data ............................III Table 2: Error Messages ............................IV Table 3: Radius Correction ............................. IV Table 4: Symbols- / Abbreviations........................... IV Redemption Form: Decontamination Certificate ...................... V Z207H_V1.22_eng © Hermle Labortechnik GmbH...
-
Page 5: Product Description

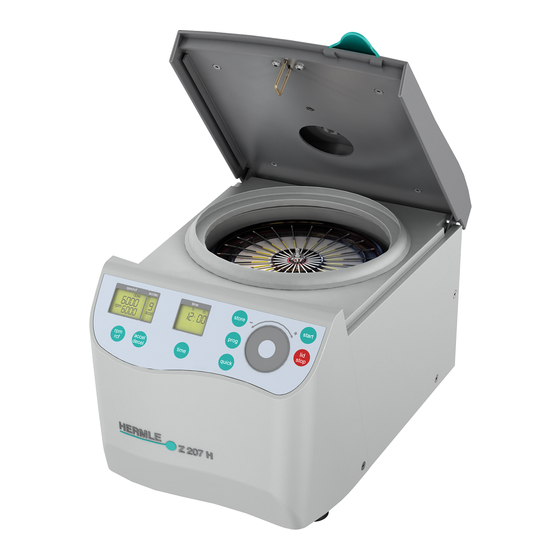

For any resulting damage, the company, Hermle Labortechnik, is not liable. 1.3 Brief Description The unit type Z 207 H is a non refrigerated hematocrit centrifuge, which we offer in two voltage variations 230 V or 120 V. The centrifuge can only be used with one angle rotor. -
Page 6: Installation Of The Centrifuge
Installation of the Centrifuge 1.5.1 Unpacking the Centrifuge Model Z 207 H is supplied in a carton. Remove the strap retainer, open the carton and remove the centrifuge. The instruction manual must be kept with the centrifuge at all times! 1.5.2 Space Requirements... -
Page 7: Signs- And Indication Of The Centrifuge
PRODUCT DESCRIPTION 1.6 Signs- and Indication of the Centrifuge 1.6.1 Product Nameplate (Example) Company Address: Hermle Labortechnik GmbH, Siemensstr. 25, D-78564 Wehingen In-Vitro-Diagnostic Medical Device TYPE: Type Designation of the Product REF: Order No. of the Product Serial No. of the Product... -
Page 8: Warning And Information Signs
Attention! Check the fastening of the rotor nut before each run Take off mains plug before opening the housing or the emergency release Power Input Fuse 2.5 AT Direction of Rotation – clockwise rotation for the rotor drive Biohazard Warning Z207H_V1.22_eng © Hermle Labortechnik GmbH... -
Page 9: Operating And Display Elements
Green Run complete, lid is closed Yellow Lid opened, no sleep mode Red flashing fast Error message Red flashing slow Centrifuge runs Yellow flashing slow Sleep mode Red – Green flashing slow Standard settings menu Z207H_V1.22_eng © Hermle Labortechnik GmbH... -
Page 10: Lcd-Display
EN 61010-2-020. • The HERMLE Z 207 H is non "explosion-proof" and must not be operated in explosion- endangered areas or locations. Centrifugation of flammable, explosive, radioactive, or such substances, which chemically react with high energy, is strictly prohibited. If used in such environment, this is at the users own expense. -
Page 11: Following Rules Must Strictly Be Adhered To
Do not run the centrifuge, if mechanical or electrical assembly groups have been tampered with, by unauthorized personnel. • Do not use accessories such as rotors and adapters, that are not approved by HERMLE Labortechnik GmbH, except commercially available centrifuge tubes, made of glass or plastic. -
Page 12: Warranty
/ or accessories or unauthorized modification of the unit. Technical modification rights are reserved, by the manufacturer, in regards to technical improvement! Z207H_V1.22_eng © Hermle Labortechnik GmbH... -
Page 13: Basic Adjustment
Open the centrifuge lid and shut off the main switch. Now switch on again the main switch.For approximately 3 seconds “Z 207 H“ will be shown in the display. Press during this time the keys “time“ (6) and “lid“ (10) simultaneously. As a result, a display test is administered for approx. 3 seconds. -
Page 14: Signal Turn On / Off
"rpm/rcf" (4), turn the keyboard sound (On) or (Off), with the rotorary field (1), (see Figure After the settings have been stored by user, the normal program mode can be changed back again by switching off the centrifuge, for a short period. Figure 3 Z207H_V1.22_eng © Hermle Labortechnik GmbH... -
Page 15: Sleep Mode On / Off
(see Figure 4). The first two numbers indicate the appeared errors ongoing from 00 to 99, the last two numbers indicate the error code. Please refer to, "table 2: error messages" (see APPENDIX IV). Switch off the centrifuge, to return to the normal program mode. Figure 4 Z207H_V1.22_eng © Hermle Labortechnik GmbH... -
Page 16: Operating
For safety, always ensure that the rotor nut is tightened before each run! Do not operate the centrifuge with rotors or adapters that show any signs of corrosion or mechanical damage. Do not operate with extremely corrosive substances, which could damage the rotor and the centrifuge Z207H_V1.22_eng © Hermle Labortechnik GmbH... -
Page 17: Loading The Angle Rotor
In case of a faulty fuse, first disconnect the power cord from the mains supply. Then open the fuse drawer and replace the fuse with 2.5 AT. If the fuse triggers again after mains connection, please search the cause of the error and eliminate Z207H_V1.22_eng © Hermle Labortechnik GmbH... -
Page 18: Lid
“221.57“ (11) along with all rotor specific data, for example: max. speed, acceleration etc., are available. For all number marked text, please refer to Figure 10. ATTENTION: Before closing the lid, please check if the rotor is tightened. Z207H_V1.22_eng © Hermle Labortechnik GmbH... -
Page 19: Pre-Selection
It is the same with the pre-selection of the RCF-Value. The setting range is between 20 xg and the maximum permissible centrifugal force of the rotor. The permissible max. speed of the Z 207 H with the rotor 221.60 V01 is 13,000 rpm or 16,058 xg. ATTENTION: Please notice the maximum permissible revolutions of the test tubes (Producer Indication)! See also chapter 3.1.5... -
Page 20: Pre-Selection Of Running Time
"decel" (M8). Now the desired brake intensity can be pre-selected, with the control field (1). The value 9 is equivalent to the shortest possible brake time and the value 0 to longest possible brake time. For all number marked text, please refer to Figure 13. Z207H_V1.22_eng © Hermle Labortechnik GmbH... -
Page 21: Radius Correction
As soon as the radius correction is set, the word "radius" (M9) appears. This text remains visible until the radius correction is set back to 0. For all number marked text, please refer to Figure 14. Figure 14 Z207H_V1.22_eng © Hermle Labortechnik GmbH... -
Page 22: Program
(M10) disappears. As soon as the key "store" (12) is no longer displayed, the word "programm xx" (M10) reappears, (the xx stands for the chosen program place). If all program numbers are occupied, take an old number that is not needed any longer and replace it with the new parameters. Z207H_V1.22_eng © Hermle Labortechnik GmbH... -
Page 23: Recall Of Stored Programs
In the display "time" (A-3), the passed running time is indicated from the moment the "quick" key (8) is pressed. By releasing the "quick" key (8), the centrifuge stops and the running time is indicated, until the lid is opened. For all number marked text, please refer to Figure 19. Z207H_V1.22_eng © Hermle Labortechnik GmbH... -
Page 24: The "Stop" Key
Load the rotor as described in Chapter: 2.1.2 When inside the display "time" (A-3), the word "error" along with the number "02" appears, (see Figure 21). Potential reason for this error can be: The imbalance switch is defective. Z207H_V1.22_eng © Hermle Labortechnik GmbH... - Page 25 OPERATING Figure 21 Z207H_V1.22_eng © Hermle Labortechnik GmbH...
-
Page 26: Maintenance
The maintenance procedure has to be repeated every 10 to 15 runs, but at least once at week! Connect the unit to the power supply, after the equipment is completely dry. Do not implement disinfection with UV-, beta- and gamma-rays or other high energy radiation. Z207H_V1.22_eng © Hermle Labortechnik GmbH... -
Page 27: Cleaning And Disinfection Of The Unit
Adapters, bottles and rotors may be gas sterilized, with Ethylenoxyd. According to the duration of the application, allow items to properly air out, after the sterilization and before usage. ATTENTION: The temperature may rise during the sterilization; rotors, adapters and bottles should not be fully closed, keep completely unscrewed. Z207H_V1.22_eng © Hermle Labortechnik GmbH... -
Page 28: Glass Breakage
Transparent rotor lids and caps, made of PC or PP, as well as rotors, tube racks and adapters of PP, have a maximum operating time of up to 3 years, from first time use. Conditions for the operating time: Proper use, damage-free condition, recommended care. Z207H_V1.22_eng © Hermle Labortechnik GmbH... -
Page 29: Trouble Shooting
Remove this stopper. Fastened to it, is a string which is connected to the lid lock.. • Pull the string slightly and the lid will open. • Open the lid of the centrifuge. • Switch the centrifuge on again, to proceed with regular function. Figure 22 Z207H_V1.22_eng © Hermle Labortechnik GmbH... -
Page 30: Description Of The Error Message System
4.2.2 Description of the Error Message System The error message, "error" (M11), is shown in the "time" (A-3) display, (see Figure 23). For more detailed information, refer to Table 2: "Error Messages", (see Appendix P. IV). Figure 23 Z207H_V1.22_eng © Hermle Labortechnik GmbH... -
Page 31: Receipt Of Centrifuges To Repair
Health risk from contaminated equipment, rotors and accessories In case of returning the centrifuge for repairing to the manufacturer, please know the following: The centrifuge must be decontaminated and cleaned, before shipment to Hermle Labortechnik, for the protection of persons, environment and material. -
Page 32: Transport, Storage And Disposal
RoHS II Compliance HERMLE Labortechnik GmbH, Siemensstraße 25, 78564 Wehingen, hereby declares and certifies that all components manufactured are RoHS II compliant, according to the definition and restrictions given by the European Parliament Directive 2011/65/EC. This restricts the use of certain hazardous substances in electrical and electronic equipmen Z207H_V1.22_eng... -
Page 33: Appendix
APPENDIX APPENDIX EG – Conformity Declaration ....................II Table 1: Technical Data...................... III Table 2: Error Messages .....................IV Table 3: Radius Correction ....................IV Table 4: Symbols- / Abbreviations ..................IV Redemption Form: Decontamination Certificate .............. V © Hermle Labortechnik GmbH Z207H_V1.22_eng... -
Page 34: Eg - Conformity Declaration
Typ Designation Z 206 A; Z 207 A; Z 207 H; Z 167 M; Z 207 M; Z 216 M; Z 287 A; Z 306; Z 307; Z 326; Z 327; Z 366; Z 446; Z 207 MK; Z 216 MK; Z 32 HK; Z 326 K; Z 327 K;... - Page 35 APPENDIX Table 1: Technical Data Manufacturer HERMLE Labortechnik GmbH, 78564 Wehingen Z 207 H Type Dimensions 28 cm Width 35 cm Depth 24 cm Height 12,5 kg Weight without rotor 13,000 rpm Max. Speed 24 x capillaries Max. Volume 16,058 x g Max.
- Page 36 Angle Rotor 221.60 not available Table 4: Symbols- / Abbreviations Symbol / Unit Describtion Abbreviations n (=rpm) revolutions per minute [min RZB(=rcf) [x g] relative centrifugal force Polypropylen Polycarbonat accel Acceleration decel Deceleration Prog Program Z207H_V1.22_eng © Hermle Labortechnik GmbH...
-
Page 37: Redemption Form: Decontamination Certificate
Have these substances reached the equipment/assembly? ………………………….. Yes No If so, which ones: ________________________________________________________________ Description of the measures for the decontamination of the listed parts: I confirm the proper decontamination: Company/Dept ._____________ Place and Date: ______________________________ Signature of the authorized person: ________________________________________ © Hermle Labortechnik GmbH Z207H_V1.22_eng... - Page 38 Z207H_V1.22_eng © Hermle Labortechnik GmbH...
- Page 39 NOTES © Hermle Labortechnik GmbH Z207H_V1.22_eng...
- Page 40 HERMLE Labortechnik GmbH Siemensstraße 25 78564 Wehingen Tel: +49 (0) 74 26 96 22-17 Fax: +49 (0) 74 26 96 22-49 Email: vertrieb@hermleLT.de Internet: http://www.hermle-labortechnik.de Technical rights reserved ©HERMLE Labortechnik GmbH 2019 Z207H_V1.22_eng © Hermle Labortechnik GmbH...
