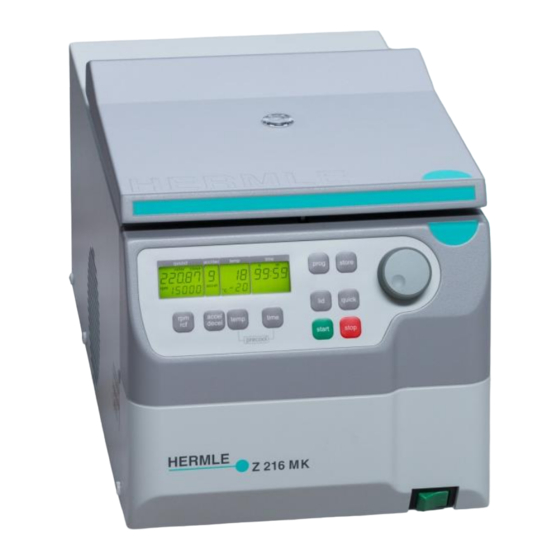

Refrigerated micro centrifuge
Table of Contents

Advertisement

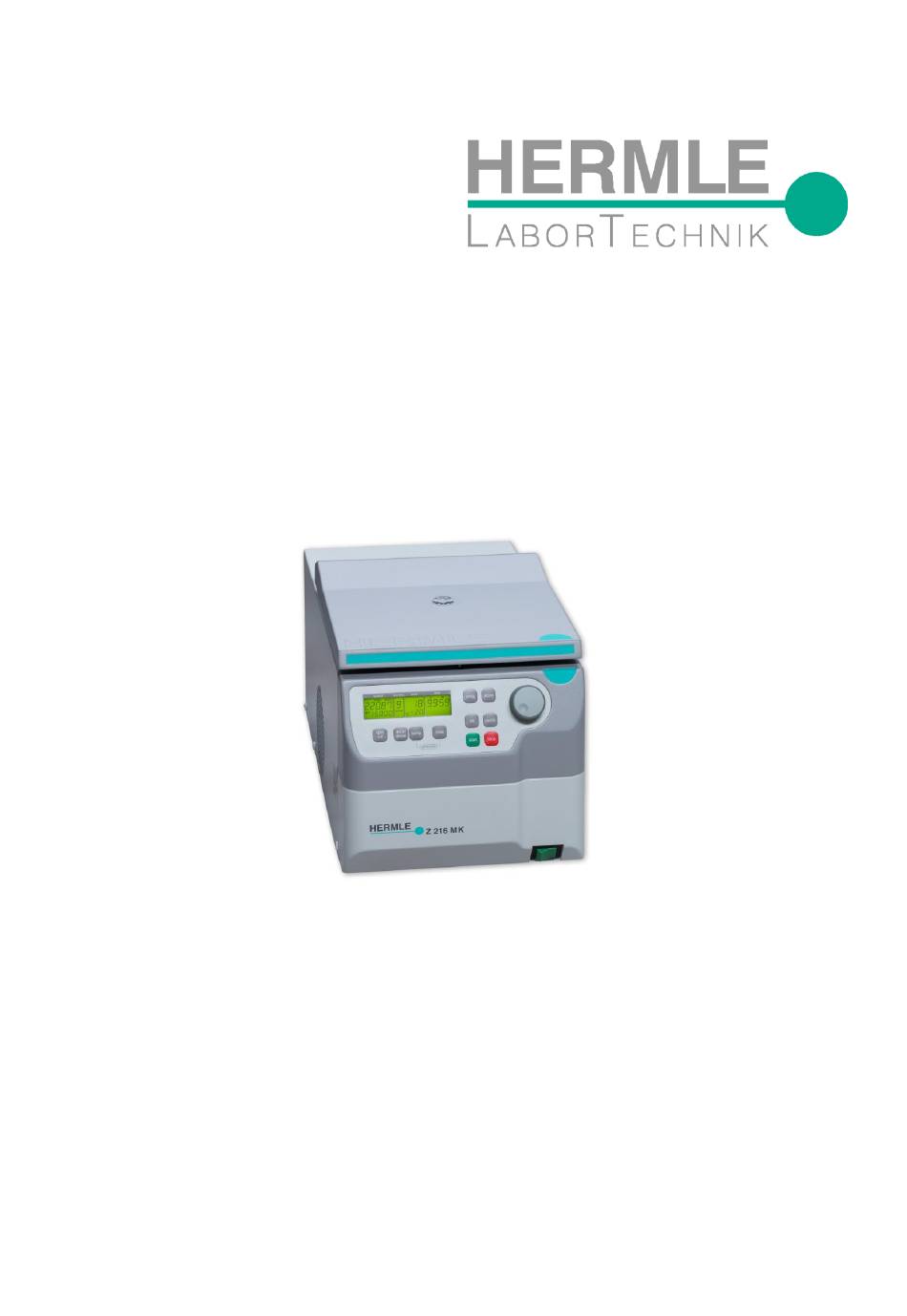

Operating Manual
for
Refrigerated Micro Centrifuge
Z 216 MK
© Hermle Labortechnik GmbH
Z216MK_V1.19_eng

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z 216 MK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hermle Z 216 MK

  • Page 1 Operating Manual Refrigerated Micro Centrifuge Z 216 MK © Hermle Labortechnik GmbH Z216MK_V1.19_eng...
  • Page 3: Table Of Contents

    Pre-Selection of Speed / RCF-Value ......................19 2.3.2 Pre-Selection of Running Time ........................20 2.3.3 Pre-Selection of Brake Intensity and Acceleration ..................21 2.3.4 Pre-Selection of Temperature ........................22 2.3.5 Pre-Cooling ..............................22 Radius Correction ............................. 23 Program ................................24 © Hermle Labortechnik GmbH Z216MK_V1.19_eng...
  • Page 4 Table 5: Acceleration and Deceleration Times ......................V Table 6: Error Messages ............................VI Table 7 (Part 1): Radius Correction......................... VII Table 8: Abbreviations used ............................ VII Redemption Form / Decontamination Certificate ....................VIII 8. NOTES ..........................9 Z216MK_V1.19_eng © Hermle Labortechnik GmbH...
  • Page 5: Product Description

    Hermle Centrifuges are intended exclusively for indoor use and for the use of qualified personnel. Only Hermle original rotors and accessories should be used. Any other use or intended use is strictly prohibited. For any resulting damage, the company, Hermle Labortechnik, is not liable.
  • Page 6: Operating And Display Elements

    Control Panel Display rpm/rcf Speed/ g-force accel/decel Acceleration / Deceleration Intensity time Centrifugation Time Lid Release quick Short Running start Start Centrifugation stop Stop Centrifugation prog Retrieving Stored Programs store Program Store temp Temperature Indication Z216MK_V1.19_eng © Hermle Labortechnik GmbH...
  • Page 7: Lcd-Display

    "error" "rpm" "service" "rcf" h m s "accel" "temperature" Indication: After switching on the centrifuge, the display, "rpm/rcf"(A-1) shows the loading status, the current software version and finally the model type (e.g. Z 36 HK). © Hermle Labortechnik GmbH Z216MK_V1.19_eng...
  • Page 8: Signs And Indications Of The Centrifuge

    Instructions for Disposal (see P. 34) Direction of Rotation – clockwise rotation for the rotor drive Reference for Loading Rotors 1.6.2 Product Nameplate(Example) Company Address: Hermle Labortechnik GmbH, Siemensstr. 25, D-78564 Wehingen TYPE: Type Designation of the Product REF: Order No. of the Product...
  • Page 9: Warning And Information Signs

    EN 61010-2-020. • The HERMLE Z 216 MK, is a non "explosion-proof" and must not be operated in explosion- endangered areas or locations. Centrifugation of flammable, explosive, radioactive, or such substances, which chemically react with high energy, is strictly prohibited. If used in such environment, this is at the users own expense.
  • Page 10: Following Rules Must Strictly Be Adhered To

    Do not run the centrifuge, if mechanical or electrical assembly groups have been tampered with, by unauthorized personnel. • Do not use accessories such as rotors and buckets, that are not approved by HERMLE Labortechnik GmbH, except commercially available centrifuge tubes, made of glass or plastic.
  • Page 11: Installation Of The Centrifuge

    1.7 Installation of the Centrifuge 1.7.1 Unpacking the Centrifuge Model Z 216 MK is supplied in a carton. Remove the strap retainer, open the carton, and remove the padding. Lift the centrifuge on both sides (see Figure 1) with an appropriate number of helpers and place it on the laboratory table.
  • Page 12: Basic Adjustments

    Now, all important rotor parameters are stored. Figure 2 Attention: Set rotor must always match with the used rotor, otherwise damage may occur to the unit. The rotor type can be checked, during the run, by pressing the key, "lid" (7). Z216MK_V1.19_eng © Hermle Labortechnik GmbH...
  • Page 13: Access To Mode: "Operating Data

    All changed settings must be confirmed by the key, "start" (9). A confirmation screen will appear with the word; "store" in the display box, "rpm/rcf"(A-1) - Only then, the pre-selections are valid, (see Figure 4)! Figure 4 © Hermle Labortechnik GmbH Z216MK_V1.19_eng...
  • Page 14: Temperature Indication

    Fahrenheit "FAREN", with the adjustable knob (1), (see Figure 5). After the settings have been stored by user (see 1.8.2), the normal program mode can be changed back again by switching off the centrifuge, for a short period. Figure 5 Z216MK_V1.19_eng © Hermle Labortechnik GmbH...
  • Page 15: Signal Turn On / Off (Optional)

    9 (loud), with the adjustable knob (1), (see Figure 7). After the settings have been stored by user (see 1.8.2), the normal program mode can be changed back again by switching off the centrifuge, for a short period. Figure 7 © Hermle Labortechnik GmbH Z216MK_V1.19_eng...
  • Page 16: Song Selection - End Of Run (Optional)

    (1), (see Figure 9). After the settings have been stored by user (see 1.8.2), the normal program mode can be changed back again by switching off the centrifuge, for a short period. Figure 9 Z216MK_V1.19_eng © Hermle Labortechnik GmbH...
  • Page 17: Retrieving Operating Data (Operated By Skilled Or Service Engineer Only!)

    (1). The respective error codes appear in the display, "rpm/rcf" (A- 1). Please refer to Table 6: "Error Messages“, (see APPENDIX P.VI). Switch off the centrifuge, to return to the normal program mode. Figure 10 © Hermle Labortechnik GmbH Z216MK_V1.19_eng...
  • Page 18: Operation

    Each rotor indicates what the maximum capacity is per hole. (It is allowed to operate e.g. a 12-place- rotor with 2 or 4 loaded tubes only, but the loaded borings must be opposite of each other). Z216MK_V1.19_eng © Hermle Labortechnik GmbH...
  • Page 19: Loading And Overloading Of Rotors

    If In case of any questions, please contact the manufacturer! 2.1.4 Removing the Rotor Completely, untighten the rotor fixing nut (2. screw over the stiff point) and lift the rotor vertically out of the centrifuge, (see Figure 12). © Hermle Labortechnik GmbH Z216MK_V1.19_eng...
  • Page 20: Lid

    "nr 22x.xx“ (M4), along with all rotor specific data, for example: max. speed, acceleration etc., are available. For all number marked text, please refer to Figure 18. ATTENTION: Don't grip your fingers between lid and device or locking mechanism, when closing the lid! Z216MK_V1.19_eng © Hermle Labortechnik GmbH...
  • Page 21: Pre-Selection

    See Table 4: "Max. Speed and RCF-Values for Permissible Rotor", (see APPENDIX P. V). All important values are listed on this table. ATTENTION: Please check the maximum permissible revolutions of your test tubes! (Producer Indication). © Hermle Labortechnik GmbH Z216MK_V1.19_eng...
  • Page 22: Pre-Selection Of Running Time

    The time counts down, as soon as the set speed is reached. The display will always show the remaining running time, (see Figure 20) For all number marked text, please refer to Figure 20. Figure 20 Z216MK_V1.19_eng © Hermle Labortechnik GmbH...
  • Page 23: Pre-Selection Of Brake Intensity And Acceleration

    For all number marked text, please refer to Figure 21. See Table 5: "Acceleration and Deceleration Times", (APPENDIX P. V). This table shows the acceleration and deceleration times, for the acceleration and deceleration stages 0 to 9, for permissible rotors. Figure 21 © Hermle Labortechnik GmbH Z216MK_V1.19_eng...
  • Page 24: Pre-Selection Of Temperature

    “stop” key (10). Depending on the inserted rotor, the pre-cooling lasts between 10 to 20 min. For all number marked text, please refer to Figure 23. Figure 23 Z216MK_V1.19_eng © Hermle Labortechnik GmbH...
  • Page 25: Radius Correction

    As soon as the radius correction is set, the word "radius" (M9) appears. This text remains visible until the radius correction is set back to 0. For all number marked text, please refer to Figure 24. Figure 24 © Hermle Labortechnik GmbH Z216MK_V1.19_eng...
  • Page 26: Program

    If all program numbers are occupied, take an old number that is not needed any longer and replace it with the new parameters. For all number marked text, please refer to: Figures 26 and 27. Z216MK_V1.19_eng © Hermle Labortechnik GmbH...
  • Page 27: Recall Of Stored Programs

    In the display "time" (A-3), the passed running time is indicated from the moment the "quick" key (8) is pressed. By releasing the "quick" key (8), the centrifuge stops and the running time is indicated, until the lid is opened. For all number marked text, please refer to Figure 28. © Hermle Labortechnik GmbH Z216MK_V1.19_eng...
  • Page 28: The "Stop" Key

    Load the rotor as described in Chapters: 2.1.2 and 2.1.3. When inside the display "time" (A-3), the word "error" along with the number "02" appear, (see Figure 31). Potential Reason for the Error Screen: The imbalance switch is defective. Figure 31 Z216MK_V1.19_eng © Hermle Labortechnik GmbH...
  • Page 29: Timer Function

    You can interrupt this function by pressing the bottom “stop” (10) or the bottom “lid” (11). During the timer mode, all the other bottoms have no function. For all number marked text, please refer to Figure 32 and 33. Figure 32 Figure 33 © Hermle Labortechnik GmbH Z216MK_V1.19_eng...
  • Page 30: Maintenance

    Following, lubricate the bolts or sealing, with the recommended HERMLE Rotorgrease - Order No.: 38-5656. Please pay special attention to anodized aluminum parts. Breakage of rotors can be caused by the slightest damages.
  • Page 31: Cleaning And Disinfecting Of The Unit

    The aerosol tightness of rotors, rotor lids, buckets and caps have been tested and certified by the "TÜV Nord CERT GmbH, Certification Body Consumer Products, Essen (Germany)", in accordance with Annex AA of IEC 61010-2-020. The certificates can be downloaded on our webpage, www.hermle-labortechnik.de. Aerosol- tight rotors and buckets are marked with the label, "aerosol-tight".
  • Page 32: Disinfection Of Aluminum Rotors

    3.1.4 Disinfection of Aluminum Rotors In case of infectious material spilling into the centrifuge, the rotor and rotor chamber have to be disinfected, promptly after the run. Rotors may be autoclaved, at a maximum temperature of 121°C/250°F. Z216MK_V1.19_eng © Hermle Labortechnik GmbH...
  • Page 33: Disinfection Of Pp-Rotors

    Transparent rotor lids and caps, made of PC or PP, as well as rotors, tube racks and adapters of PP, have a maximum operating time of up to 3 years, from first time use. Conditions for the Operating Time: Proper use, damage-free condition, recommended care. © Hermle Labortechnik GmbH Z216MK_V1.19_eng...
  • Page 34: Trouble Shooting

    • Turn the box spanner to the left (counterclockwise), up to the limit. ATTENTION: Only turn to the limit, don´t tighten the nut. • Open the lid of the centrifuge. • Switch the centrifuge on again, to proceed with regular function. Figure 34 Z216MK_V1.19_eng © Hermle Labortechnik GmbH...
  • Page 35: Description Of The Error Message System

    4.2.1, p 26. After opening the centrifuge lid, switch on the device again. Error 14 and the lettering "USEr GuidE" should be eliminated. If this error occurs again, please contact the service. © Hermle Labortechnik GmbH Z216MK_V1.19_eng...
  • Page 36: Receipt Of Centrifuges To Repair

    In case of a return of a centrifuge, we also ask you to send its power cord. This eliminates the risk of a faulty power cord. If no power cord is attached to the centrifuge, a new one will be delivered and charged. We ask for your understanding. Z216MK_V1.19_eng © Hermle Labortechnik GmbH...
  • Page 37: Transport, Storage And Disposal

    RoHS II Compliance HERMLE Labortechnik GmbH, Siemensstraße 25, 78564 Wehingen, hereby declares and certifies that all components manufactured are RoHS II compliant, according to the definition and restrictions given by the European Parliament Directive 2011/65/EC. This restricts the use of certain hazardous substances in electrical and electronic equipment.
  • Page 39: Appendix

    Table 4: Max. Speed and RCF-Values for Permissible Rotors ..........V Table 5: Acceleration and Deceleration Times ............... V Table 6: Error Messages ......................VI Table 7 (Part 1): Radius Correction ..................VII Table 8: Abbreviations ......................VII Redemption Form / Decontamination Certificate ..............VIII © Hermle Labortechnik GmbH Z216MK_V1.19_eng...
  • Page 40: Eg - Conformity Declaration

    Z 206 A; Z 207 A; Z 207 H, Z 167 M; Z 207 M, Z 216 M; Z 306; Z 326; Z 366; Z 446; Z 216 MK; Z 32 HK; Z 326 K; Z 366 K; Z 36 HK; Z 446 K, ZK 496 Einschlägige EG-Richtlinien / Normen...
  • Page 41 APPENDIX Table 1: Technical Data HERMLE Labortechnik GmbH, 78564 Wehingen Manufacturer Z 216 MK Type Dimensions 28 cm Width Depth 55 cm Height 29 cm Weight without rotor 35 kg 15000 rpm Max. Speed 44 x 2ml Max. Volume 21380 x g Max.
  • Page 42 221.38 V03 +5 °C/41°F 15000 rpm 221.68 V01 +10 °C/50°F *All temperature indications refer to a room temperature of 23°C/73°F. By exceeding this value or direct solar radiation to the centrifuge, these values cannot be maintained. Z216MK_V1.19_eng © Hermle Labortechnik GmbH...
  • Page 43 Level 0 Level 9 220.87 V14 220.87 V13 221.17 V06 220.88 V08 220.92 V07 221.35 V03 221.38 V03 221.68 V01 in seconds Acceleration Time Deceleration Time from 0 rpm -> U from U -> 0 rpm © Hermle Labortechnik GmbH Z216MK_V1.19_eng...
  • Page 44 Timeout between control unit and frequency converter Other error frequency converter Over Speed Timeout between controller and RS232 interface Rotor is not allowed in this centrifuge FALSE Inserted rotor does not exist in the program rotor no Rotor is not detected Z216MK_V1.19_eng © Hermle Labortechnik GmbH...
  • Page 45 701.015 701.016 701.017 Angle Rotor 221.68 704.004 704.005 Table 8: Abbreviations used Symbol/Abbreviations Unit Description [rpm] U (=rpm) Revolutions per Minute RZB(=rcf) [x g] Relative Centrifugal Force Polypropylene Polycarbonate accel Acceleration decel Deceleration prog Program © Hermle Labortechnik GmbH Z216MK_V1.19_eng...
  • Page 46: Redemption Form / Decontamination Certificate

    Have these substances reached the equipment/assembly? …………………………..  Yes  No If so, which ones: ________________________________________________________________ Description of the measures for the decontamination of the listed parts: I confirm the proper decontamination: Company/Dept ._____________ Place and Date: ____________________________________ Signature of the authorized person:________________________________________ VIII Z216MK_V1.19_eng © Hermle Labortechnik GmbH...
  • Page 47: Notes

    8. NOTES © Hermle Labortechnik GmbH Z216MK_V1.19_eng...
  • Page 48 HERMLE Labortechnik GmbH Siemensstraße 25 78564 Wehingen Tel: 0 74 26-96 22-17 Fax: 0 74 26-96 22-49 Email: vertrieb@hermleLT.de Internet: http://www.hermle-labortechnik.de Technische Änderungen vorbehalten. ©HERMLE Labortechnik GmbH 2018 Z216MK_V1.19_eng © Hermle Labortechnik GmbH...
