- Page 1 HERMLE Z 216 M User Manual _eng © Hermle Labortechnik GmbH Z216M_V2.21...
-
Page 3: Table Of Contents
2.3.3 Pre-Selection of Brake Intensity and Acceleration ..................18 Radius Correction ............................19 Program ................................19 2.5.1 Storage of Programs ............................. 19 2.5.2 Recall of Stored Programs ..........................20 2.5.3 Leaving Program Mode ..........................21 © Hermle Labortechnik GmbH Z216M_V2.21_eng... - Page 4 Table 3: Max. Speed and RCF-Values for Permissible Rotors ................IV Table 4: Acceleration and Deceleration Times ......................IV Table 5: Error Messages ............................V Table 6 Radius Correction ............................VI Table 7: Abbreviations ............................VI Redemption Form / Decontamination Certificate ....................VII Z216M_V2.21_eng © Hermle Labortechnik GmbH...
-
Page 5: Product Description

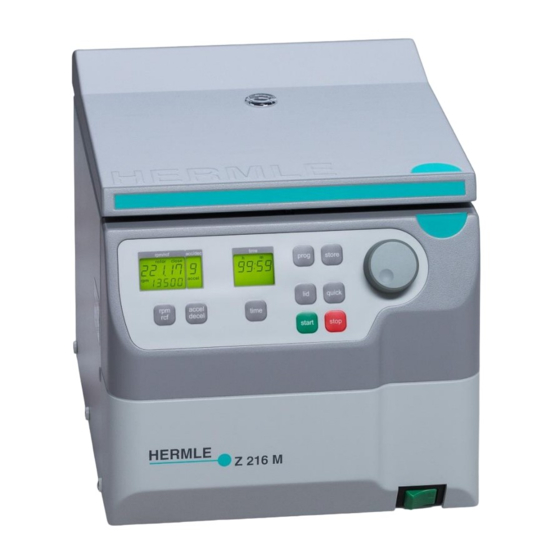

For any resulting damage, the company, Hermle Labortechnik, is not liable. 1.3 Brief Description The unit type Z 216 M, is a microlitre centrifuge, which we offer in two voltage variations 230V or 120V. The centrifuge can be used with angle rotors. -
Page 6: Installation Of The Centrifuge
1.5 Installation of the Centrifuge 1.5.1 Unpacking the Centrifuge Model Z 216 M is supplied in a carton. Remove the strap retainer, open the carton, and remove the centrifuge. The instruction manual must be kept with the centrifuge, at all times! 1.5.2 Space Requirements... -
Page 7: Signs And Indications Of The Centrifuge
PRODUCT DESCRIPTION 1.6 Signs and Indications of the Centrifuge 1.6.1 Product Nameplate(Example) Company Address: Hermle Labortechnik GmbH, Siemensstr. 25, D-78564 Wehingen In-Vitro-Diagnostic Medical Device TYPE: Type Designation of the Product REF: Order No. of the Product Serial No. of the Product... -
Page 8: Warning And Information Signs
Attention! Check the fastening of the rotor nut before each run Take off mains plug before opening the housing or the emergency release Power Input Direction of Rotation – clockwise rotation for the rotor drive Rotation Direction Emergency Release Biohazard Warning Z216M_V2.21_eng © Hermle Labortechnik GmbH... -
Page 9: Operating And Display Elements
Run Parameters Power Switch Control Panel Display rpm/rcf Speed/ g-force accel/decel Acceleration / Deceleration Intensity time Centrifugation Time Lid Release quick Short Running start Start Centrifugation stop Stop Centrifugation prog Retrieving Stored Programs store Program Store © Hermle Labortechnik GmbH Z216M_V2.21_eng... -
Page 10: Lcd-Display
Figure 1 Display Fields: Display Field – "rpm/rcf" Display Field – "acc/dec" Display Field – "time" Messages/Logos of the Display Fields: "close" "decel" "open" "radius" "rotor" "program" Rotor-No. "error" "rpm" "service" "rcf" h m s "accel" Z216M_V2.21_eng © Hermle Labortechnik GmbH... -
Page 11: Danger, Precautions And Warranty
EN 61010-2-020. • The HERMLE Z 216 M is a non "explosion-proof" and must not be operated in explosion- endangered areas or locations. Centrifugation of flammable, explosive, radioactive, or such substances, which chemically react with high energy, is strictly prohibited. If used in such environment, this is at the users own expense. -
Page 12: Warranty
/ or accessories or unauthorized modification of the unit. Technical modification rights are reserved, by the manufacturer, in regards to technical improvement! Z216M_V2.21_eng © Hermle Labortechnik GmbH... -
Page 13: Basic Adjustments
Before operating the centrifuge, please notice the following optional basic setting changes: Acoustic Signal Turn On / Off Keyboard Sound Turn On / Off Volume Pre-Selection of Sound Signal Song Selection for "end of run" © Hermle Labortechnik GmbH Z216M_V2.21_eng... -
Page 14: Access To Mode: "Operating Data
All changed settings must be confirmed by the key, "start" (9). A confirmation screen will appear with the word, "store", in the display "rpm/rcf"(A-1) - Only then the pre-selections are valid, (see Figure 4)! Figure 4 Z216M_V2.21_eng © Hermle Labortechnik GmbH... -
Page 15: Signal Turn On / Off (Optional)
9 (loud), with the adjustable knob (1), (see Figure 6). After the settings have been stored by user (see 1.8.2), the normal program mode can be changed back again by switching off the centrifuge, for a short period. Figure 6 © Hermle Labortechnik GmbH Z216M_V2.21_eng... -
Page 16: Song Selection- End Of Run (Optional)
"rpm/rcf" (4), turn the keyboard sound (On) or (Off), with the adjustable knob (1), (see Figure 8). After the settings have been stored by user, the normal program mode can be changed back again by switching off the centrifuge, for a short period. Figure 8 Z216M_V2.21_eng © Hermle Labortechnik GmbH... -
Page 17: Retrieving Operating Data (Operated By Skilled Or Service Engineer Only!)
(1). The respective error codes appear in the display, "rpm/rcf" (A- 1). Please refer to: "Table 5: Error Messages", (see APPENDIX S. V). Switch off the centrifuge, to return to the normal program mode. Figure 9 © Hermle Labortechnik GmbH Z216M_V2.21_eng... -
Page 18: Operation
Each rotor indicates what the maximum capacity is per hole. (It is allowed to operate e.g. a 12-place- rotor with 2 or 4 loaded tubes only, but the loaded borings must be opposite of each other). Z216M_V2.21_eng © Hermle Labortechnik GmbH... -
Page 19: Loading And Overloading Of Rotors
4.000 = 3.360 rpm √ If In case of any questions, please contact the manufacturer! 2.1.4 Removing the Rotor Untighten the rotor fixing nut, completely. Lift the rotor vertically out of the centrifuge, (see Figure 11). © Hermle Labortechnik GmbH Z216M_V2.21_eng... -
Page 20: Lid
For all number marked text, please refer to Figure 17. ATTENTION: Don't grip your fingers between the lid and the device or the locking mechanism, when closing the lid! Z216M_V2.21_eng © Hermle Labortechnik GmbH... -
Page 21: Pre-Selection
3. Range: Continuous Run "cont", can be interrupted by the key, "stop" (10). -The running time can be pre-selected, with the lid opened or closed -To activate the setting of the running time, press the key "time" (6). © Hermle Labortechnik GmbH Z216M_V2.21_eng... -
Page 22: Pre-Selection Of Brake Intensity And Acceleration
For all number marked text, please refer to Figure 18 See Table 4: "Acceleration and Deceleration Times", (APPENDIX P. IV). This table shows the acceleration and deceleration times, for the acceleration and deceleration stages 0 to 9, for permissible rotors. Figure 18 Z216M_V2.21_eng © Hermle Labortechnik GmbH... -
Page 23: Radius Correction
If a program number is already occupied, in the display "rpm/rcf" (A-1), the words "rotor" (M3) and "22x.xx" (M4) will appear, (see Figure 20). Free program numbers will appear as 0. Figure 20 © Hermle Labortechnik GmbH Z216M_V2.21_eng... -
Page 24: Recall Of Stored Programs
"rpm/rcf" (A-1) flashes the word "rotor" (M3). At the same time, the word "FALSE" and the stored rotor number "22x. xx“"(M4) flash in sequence of one another. For all number marked text, please refer to Figure 23 Figure 23 Z216M_V2.21_eng © Hermle Labortechnik GmbH... -
Page 25: Leaving Program Mode
With the "stop" key (10), the run time can be interrupted, at any time, (see Figure 25). After pressing the key, the centrifuge decelerates with the respective pre-selected intensity, down to a standstill. Figure 25 © Hermle Labortechnik GmbH Z216M_V2.21_eng... -
Page 26: Imbalance Detection
You can interrupt this function by pressing the bottom “stop” (10) or the bottom “lid” (11). During the timer mode, all the other bottoms have no function. For all number marked text, please refer to Figure 27 and 28. Z216M_V2.21_eng © Hermle Labortechnik GmbH... - Page 27 OPERATION Figure 27 Figure 28 © Hermle Labortechnik GmbH Z216M_V2.21_eng...
-
Page 28: Maintenance
Following, lubricate the bolts or sealing, with the recommended HERMLE Rotorgrease - Order No.: 38-5656.. Please pay special attention to anodized aluminum parts. Breakage of rotors can be caused by the slightest damages. -
Page 29: Cleaning And Disinfecting Of The Unit
"TÜV Nord CERT GmbH, Certification Body Consumer Products, Essen (Germany)", in accordance with Annex AA of IEC 61010-2-020. The certificates can be downloaded on our webpage, www.hermle-labortechnik.de. Aerosol-tight rotors and buckets are marked with the label, "aerosol- tight". ATTENTION: Autoclaving, mechanical stresses and contamination, by chemicals or other aggressive solvents, can impair the aerosol-tightness of the rotors and buckets. -
Page 30: Disinfection Of Aluminum Rotors
Transparent rotor lids and caps, made of PC or PP, as well as rotors, tube racks and adapters of PP, have a maximum operating time of up to 3 years, from first time use. Conditions For the Operating Time: Proper use, damage-free condition, recommended care. Z216M_V2.21_eng © Hermle Labortechnik GmbH... -
Page 31: Trouble Shooting
• Turn the box spanner to the left (counterclockwise), up to the limit. ATTENTION: Only turn to the limit, don´t tighten the nut. • Open the lid of the centrifuge. • Switch the centrifuge on again, to proceed with regular function. Figure 29 © Hermle Labortechnik GmbH Z216M_V2.21_eng... -
Page 32: Description Of The Error Message System
Once the rotor has come to a standstill, open the centrifuge lid with the emergency release. Proceed as described in chapter 4.2.1, p 26. After opening the centrifuge lid, switch on the device again. Error 14 and the lettering "USEr GuidE" should be eliminated. Z216M_V2.21_eng © Hermle Labortechnik GmbH... -
Page 33: Procedure While Error 38 - Lid Motor Is Blocked
Proceed as described in chapter 4.2.1. After opening the centrifuge lid, switch on again the device. The lid lock adjusts itself in the basic position. The closing process can be carried out normally again. © Hermle Labortechnik GmbH Z216M_V2.21_eng... -
Page 34: Receipt Of Centrifuges To Repair
In case of a return of a centrifuge, we also ask you to send its power cord. This eliminates the risk of a faulty power cord. If no power cord is attached to the centrifuge, a new one will be delivered and charged. We ask for your understanding. Z216M_V2.21_eng © Hermle Labortechnik GmbH... -
Page 35: Transport, Storage And Disposal
RoHS II Compliance HERMLE Labortechnik GmbH, Siemensstraße 25, 78564 Wehingen, hereby declares and certifies that all components manufactured are RoHS II compliant, according to the definition and restrictions given by the European Parliament Directive 2011/65/EC. This restricts the use of certain hazardous substances in electrical and electronic equipment. -
Page 37: Appendix
Table 3: Max. Speed and RCF-Values for Permissible Rotors ........IV Table 4: Acceleration and Deceleration Times ............IV Table 5: Error Messages ....................V Table 6 Radius Correction .................... VI Table 7: Abbreviations ....................VI Redemption Form / Decontamination Certificate ............VII © Hermle Labortechnik GmbH Z216M_V2.21_eng... -
Page 38: Eg - Conformity Declaration
Typ Designation Z 206 A; Z 207 A; Z 207 H, Z 167 M; Z 207 M, Z 216 M; Z 287 A, Z 306; Z 326; Z 366; Z 446; Z 207 MK; Z 216 MK; Z 32 HK; Z 326 K; Z 366 K; Z 36 HK; Z 446 K, ZK 496 Einschlägige EG-Richtlinien / Normen... - Page 39 APPENDIX Table 1: Technical Data HERMLE Labortechnik GmbH, 78564 Wehingen Manufacturer Type Z 216 M Dimensions Width 28 cm Depth 39 cm Height 30 cm Weight without rotor 17 kg 15000 rpm Max. Speed Max. Volume 44 x 1,5/2 ml Max.
- Page 40 Level 0 Level 9 220.87 V14 220.87 V13 221.17 V06 220.88 V08 221.35 V03 220.92 V07 221.38 V03 220.58 V13 221.68 V01 in seconds Acceleration Time from 0 rpm -> Deceleration Time from U -> 0 Z216M_V2.21_eng © Hermle Labortechnik GmbH...
- Page 41 Over temperature motor Over current frequency converter Timeout between control unit and frequency converter Other error frequency converter Over speed Timeout between controller and RS232 interface FALSE Inserted rotor does not exist in the program © Hermle Labortechnik GmbH Z216M_V2.21_eng...
- Page 42 701.017 -1.0 Angle Rotor 221.68 704.004 -0.2 704.005 -0.7 Table 7: Abbreviations Symbol/Abbreviations Unit Description U (=rpm) [min Revolutions per Minute RZB(=rcf) [x g] Relative Centrifugal Force Polypropylene Polycarbonate accel Acceleration decel Deceleration prog Program Z216M_V2.21_eng © Hermle Labortechnik GmbH...
-
Page 43: Redemption Form / Decontamination Certificate
Have these substances reached the equipment/assembly? ………………………….. Yes No If so, which ones: ________________________________________________________________ Description of the measures for the decontamination of the listed parts: I confirm the proper decontamination: Company/Dept ._____________ Place and Date: ____________________________________ Signature of the authorized person:______________________________________ © Hermle Labortechnik GmbH Z216M_V2.21_eng... - Page 44 HERMLE Labortechnik GmbH Siemensstraße 25 78564 Wehingen Tel: +49 (0) 74 26-96 22-17 Fax: +49 (0) 74 26-96 22-49 Email: vertrieb@hermleLT.de Internet: http://www.hermle-labortechnik.de Technical modification rights reserved ©HERMLE Labortechnik GmbH 2021 Z216M_V2.21_eng © Hermle Labortechnik GmbH...
