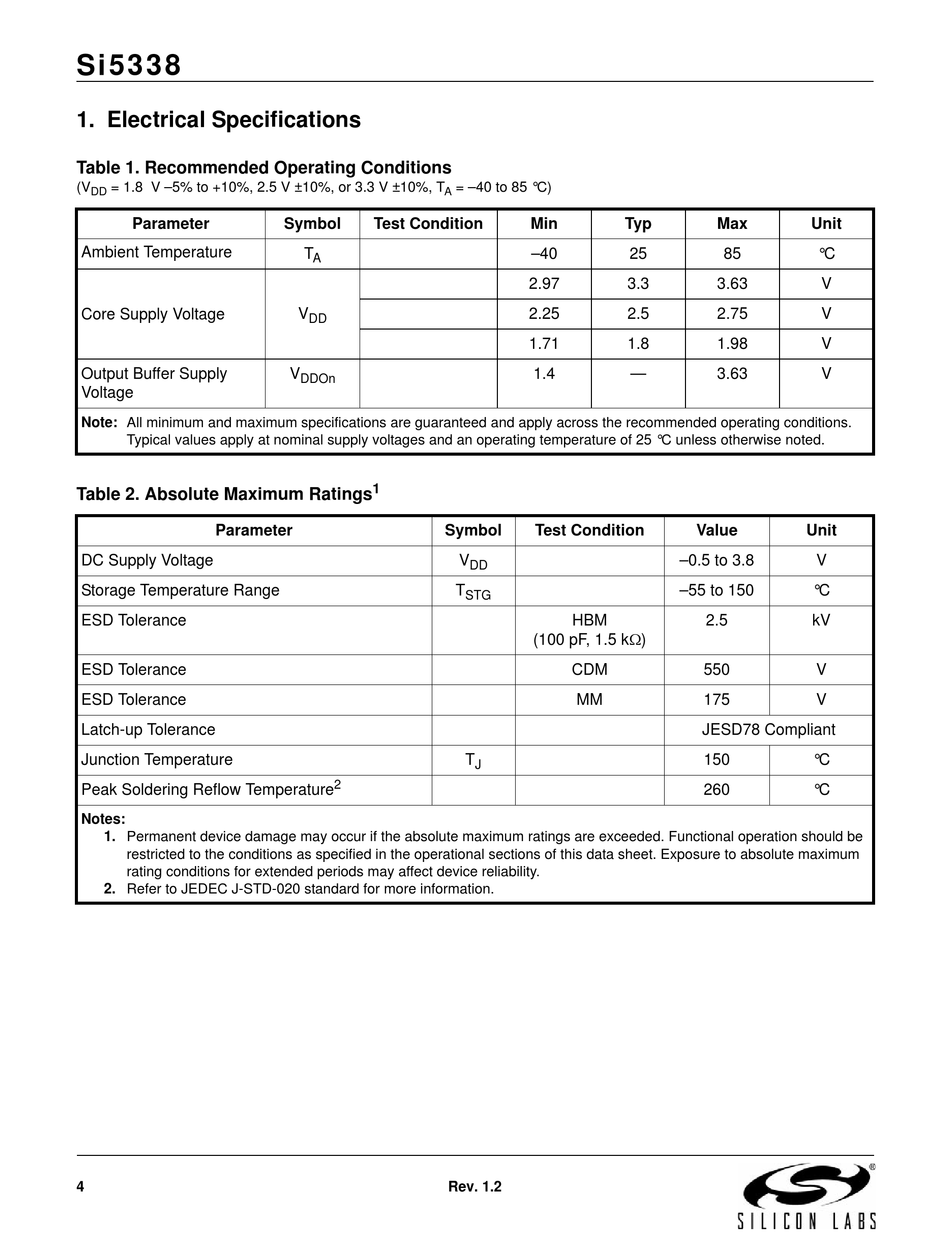

1. Electrical Specifications

Table 1. Recommended Operating Conditions
(V = 1.8 V –5% to +10%, 2.5 V ±10%, or 3.3 V ±10%, T
DD
Parameter
Ambient Temperature
Core Supply Voltage
Output Buffer Supply
Voltage
Note: All minimum and maximum specifications are guaranteed and apply across the recommended operating conditions.
Typical values apply at nominal supply voltages and an operating temperature of 25 °C unless otherwise noted.
Table 2. Absolute Maximum Ratings
Parameter
DC Supply Voltage
Storage Temperature Range
ESD Tolerance
ESD Tolerance
ESD Tolerance
Latch-up Tolerance
Junction Temperature
Peak Soldering Reflow Temperature
Notes:
1. Permanent device damage may occur if the absolute maximum ratings are exceeded. Functional operation should be
restricted to the conditions as specified in the operational sections of this data sheet. Exposure to absolute maximum
rating conditions for extended periods may affect device reliability.
2. Refer to JEDEC J-STD-020 standard for more information.
4
= –40 to 85 °C)
A
Symbol Test Condition
T
A
V
DD
V
DDOn
1
Symbol
V
T
2
Rev. 1.2
Min Typ
–40 25
2.97 3.3
2.25 2.5
1.71 1.8
1.4 —
Test Condition
DD
STG
HBM
(100 pF, 1.5 k)
CDM
MM
T
J
Max Unit
85 °C
3.63 V
2.75 V
1.98 V
3.63 V
Value Unit
–0.5 to 3.8 V
–55 to 150 °C
2.5 kV
550 V
175 V
JESD78 Compliant
150 °C
260 °C
