Si5338

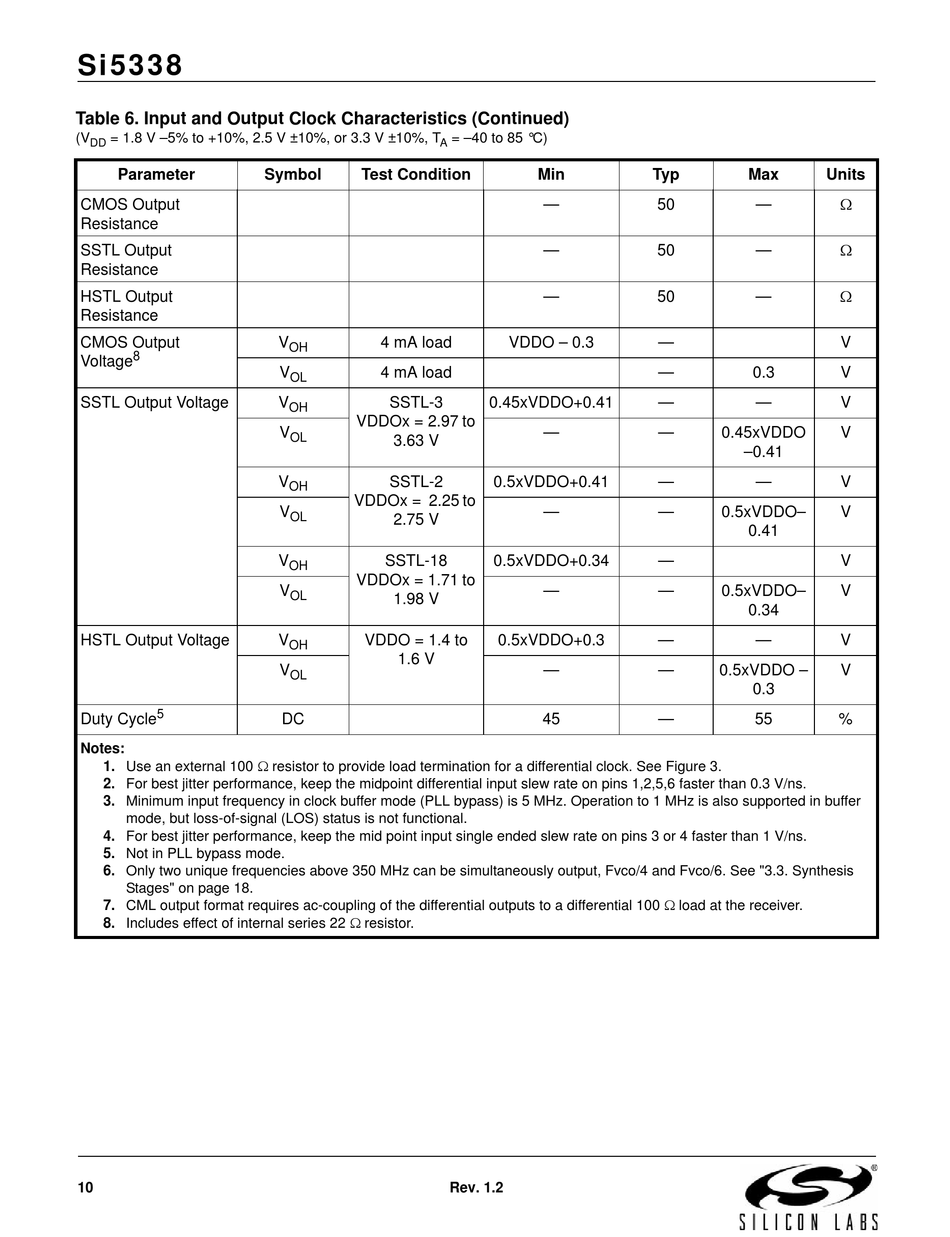

Table 6. Input and Output Clock Characteristics (Continued)
(V = 1.8 V –5% to +10%, 2.5 V ±10%, or 3.3 V ±10%, T
DD
Parameter
CMOS Output
Resistance
SSTL Output
Resistance
HSTL Output
Resistance
CMOS Output
8
Voltage
SSTL Output Voltage
HSTL Output Voltage
5
Duty Cycle
Notes:
1. Use an external 100  resistor to provide load termination for a differential clock. See Figure 3.
2. For best jitter performance, keep the midpoint differential input slew rate on pins 1,2,5,6 faster than 0.3 V/ns.
3. Minimum input frequency in clock buffer mode (PLL bypass) is 5 MHz. Operation to 1 MHz is also supported in buffer
mode, but loss-of-signal (LOS) status is not functional.
4. For best jitter performance, keep the mid point input single ended slew rate on pins 3 or 4 faster than 1 V/ns.
5. Not in PLL bypass mode.
6. Only two unique frequencies above 350 MHz can be simultaneously output, Fvco/4 and Fvco/6. See "3.3. Synthesis
Stages" on page 18.
7. CML output format requires ac-coupling of the differential outputs to a differential 100  load at the receiver.
8. Includes effect of internal series 22  resistor.
