User Guide
EVAL-ADAU1861
EVALUATION BOARD SCHEMATICS

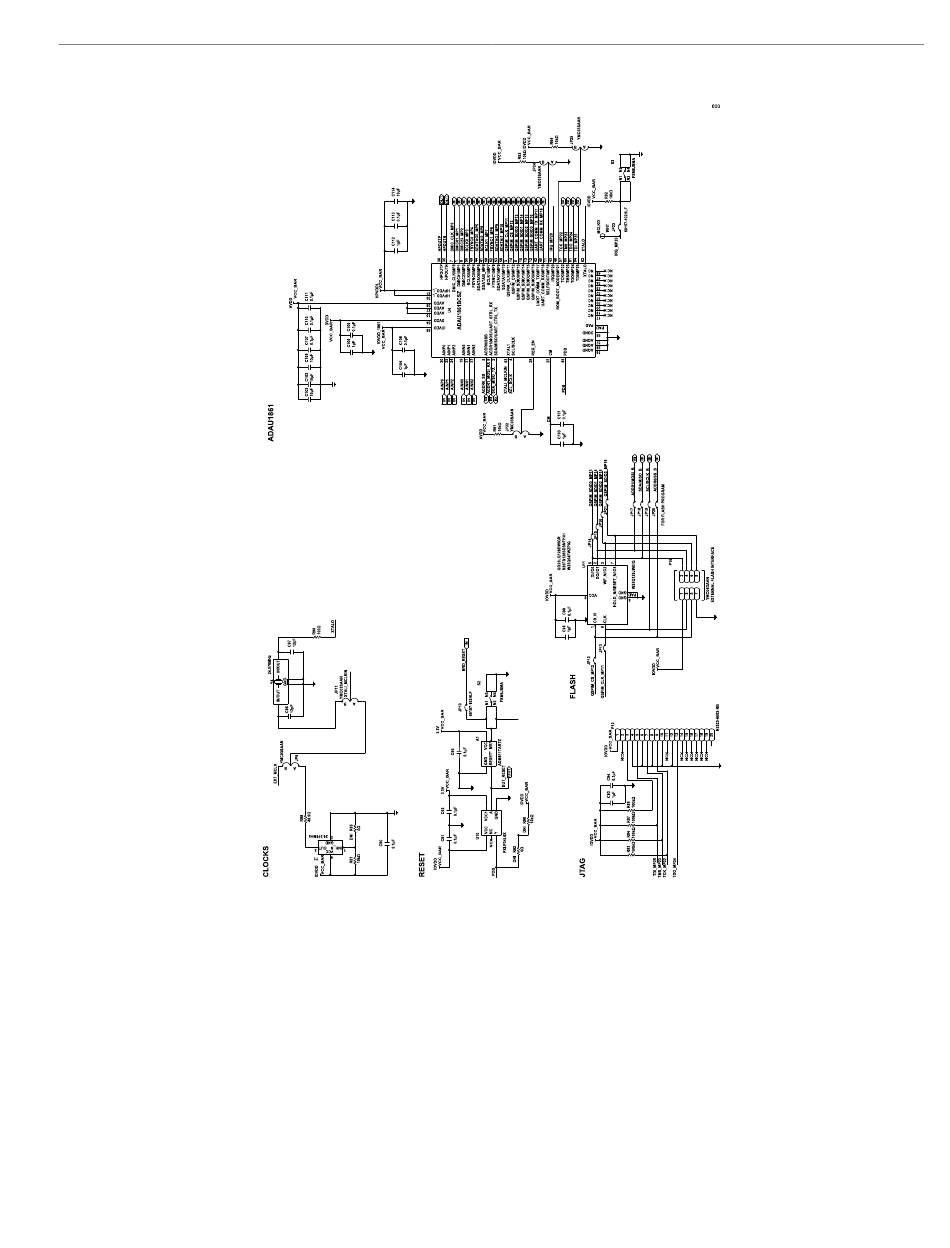

Figure 9. EVAL-ADAU1861EBZ Schematic, Page 3
analog.com
Rev. 0 | 16 of 24
