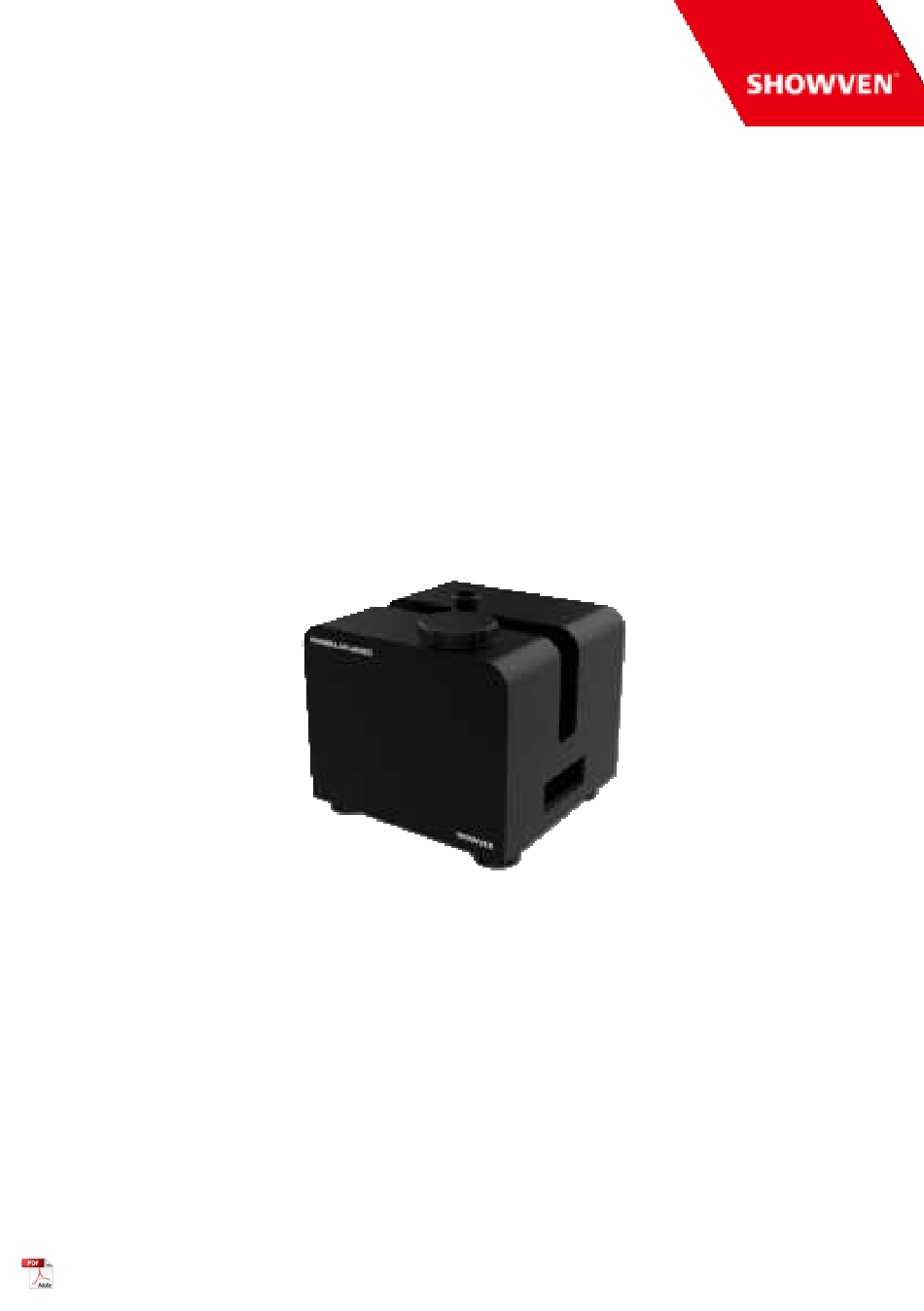

- Page 1 USER MANUAL SPARKULAR ® WAVER V1.1 2023/05/20 Showven Technologies Co., Ltd.
- Page 3 " Thanks for choosing SPARKULAR WAVER, we wish it will sparks up your show. Please read the following manual carefully before operating this product. Safety Instructions Δ Unauthorized repair are prohibited, it may cause serious incident. Please keep the device dry. "...

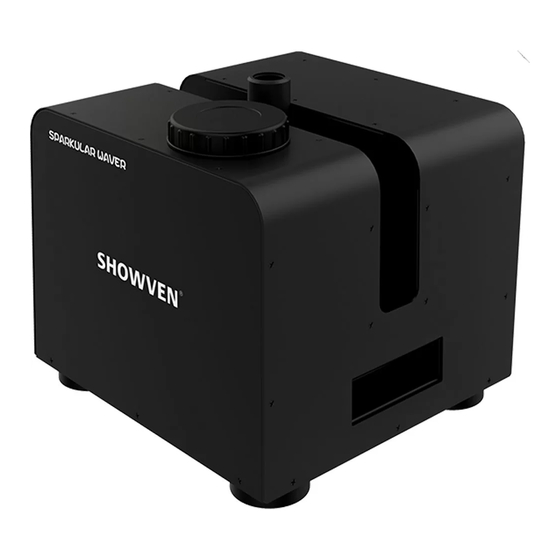

- Page 4 Description Δ SPARKULAR® WAVER is 180 degree waving spark effect originally developed by SHOWVEN. It can firing in any single direction between -90 to 90 degree or in waving sequences etc. Various editable sparks effect brings infinite creativity to your stage.
-
Page 5: Bottom Panel
Structure of SPARKULAR ® WAVER Δ 1. Feeding Hopper Lid 2. Output Nozzle 3. ARM alarming light 4. Display Screen 5. Power Switch 6. Fuse 7. Power IN 8. Power OUT 9. 3-PIN DMX IN 10. 5-PIN DMX IN 11. 5-PIN DMX OUT 12. - Page 6 Operation Panel Δ 1. Keypad area MENU: Press enter setting interface UP: Parameter up DOWN: Parameter down MONI: Status monitoring of main part inside machine 2. Monitoring Interface From this interface, we can check the voltage and motor status of machine. 3.
-
Page 7: Main Interface
" single machine 20min working time, the maximum recharge time for SPARKULAR WAVER is 30min. 4. ARM alarming light ON: DMX connected or wireless remote function ON. BLINK: DMX armed, ready for firing OFF: No DMX connection and wireless remote function OFF. Display Interface Δ... -
Page 8: Advanced Menu
E6 Heat Fail Heating fail, problem on heating PCB or mainboard E7 Tip Over Tilt sensor activated when machine slant over 45 degrees 3. Set Up Menu Press “MENU” enter setup menu, press LEFT, RIGHT to choose main menu, advanced menu or factory menu. -
Page 9: Dmx Channel Mode
WAVER, please don’t change the default value without " permission from SHOWVEN 6. DMX Channel Mode SPARKULAR WAVER occupies 6 operational channels. First channel is for effect height, second channel for effect trigger and clear material etc. Channel Function Value 0~255: angle change from -90°... -
Page 10: Firing Sequence
-30° -45° -60° -75° -90° 7. Firing Sequence SPARKULAR WAVER has 72 preset sequences, operator use related channel DMX value or sequence No. to access certain sequence. Below, you can find sequence list. Firing CH5 DMX Ignition angle Description Duration... - Page 11 Depends -30° Fixed angle firing 16-17 on CH3 Depends -15° Fixed angle firing 18-20 on CH3 Depends 0° Fixed angle firing 21-22 on CH3 Depends 15° Fixed angle firing 23-25 on CH3 Depends 30° Fixed angle firing 26-28 on CH3 Depends 45°...
- Page 12 (-60°)~ 0° ~ (-60°) Medium waving 5 times 136-137 (-45°)~ 0° ~ (-45°) 138-140 Medium waving 5 times (-30°)~ 0° ~ (-30°) 141-142 Medium waving 5 times 90° ~ 0° ~ 90° 143-145 Medium waving 5 times 75° ~ 0° ~ 75° Medium waving 5 times 146-147 60°...
- Page 13 Power ON all SPARKULAR WAVER. " e) Assign DMX address for each unit of SPARKULAR WAVER. If use SHOWVEN host controller or FXcommander to control the machine please allocate a unique DMX address for each unit of machine. - 11 -...
- Page 14 NOTE: If use SHOWVEN HOST CONTROLLER ZK6200/6300 to control the firing, please press “F3” to choose “CIRCLE FLAMER-6CH”, then set the firing sequence, as for preset sequence the firing duration is fixed, so please set...
- Page 15 1s. Please do allocate different DMX address for each unit of SPARKULAR WAVER (6 channels), otherwise it will cause signal interference. 6. Turn Off and clean up " " a) Power off SPARKULAR WAVER, allow SPARKULAR WAVER to cool down.
- Page 16 (except for the instrument damage caused by human factors) in warranty period. Please don't repair machine without factory permission Below situations NOT included in warranty service: " Damage caused by use other type of consumable which is not from SHOWVEN " SHOWVEN authorized distributor.
- Page 17 Showven Technologies Co., Ltd. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: No.1 Tengda Road, Liuyang Economic & Technical Development Zone, 410300, Changsha, Hunan, P.R.China...
