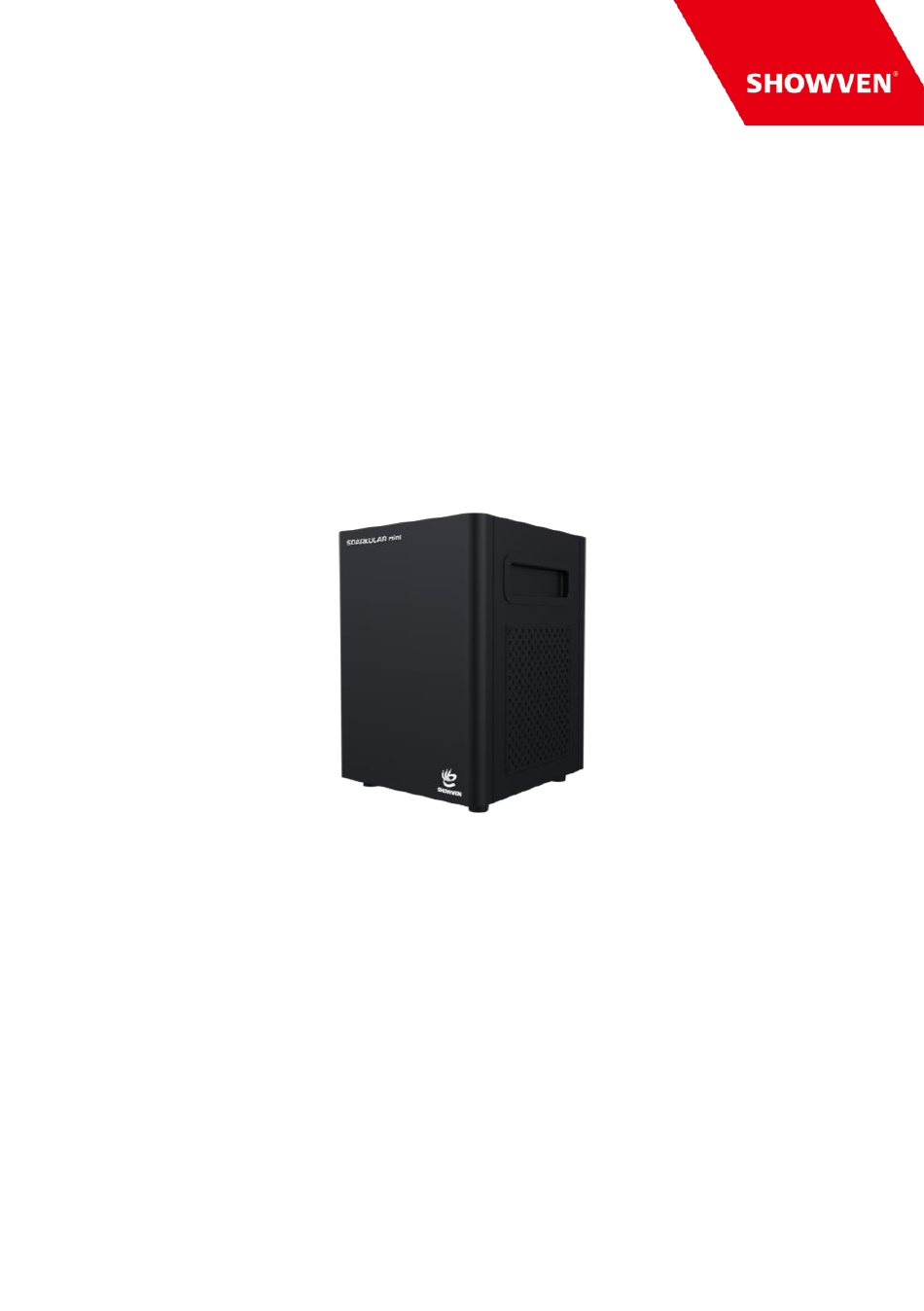

- Page 1 USER MANUAL SPARKULAR mini ® V2.1 2022/06/22 Showven Technologies Co., Ltd.
- Page 2 ® Thanks for choosing SPARKULAR mini, we wish it will sparks up your show. Please read the following manual carefully before operating this product. Safety Instructions Δ Unauthorized repair are prohibited, it may cause serious incident. ® Keep SPARKULAR mini dry and do NOT use in rain or snow. ®...
- Page 3 Description Δ ® ® SPARKULAR mini is an affordable sparks solution based on SPARKULAR platform, it is with fixed sparks effects at around 2-3m. Equipped with wireless remote and DMX double control ensure the versatile use for wedding, party, clubs, cruise ships etc. venues and stages. Technical Specifications Δ...
- Page 4 ® Structure of SPRKULAR mini Δ 1. Output Nozzle 2. Feeding Hopper Lid 3. Cooling Fan 4. LCD Screen 5. Power Switch 6. Fuse 7. DMX OUT 8. DMX IN 9. POWER IN 10. POWER OUT Diagram of Bottom Panel...
- Page 5 Operation Panel Δ 1. LED display area READY DM X FAU LT HEAT READY: After turn on machine, it will automatically preheat around 5 minutes, when the "READY" green light turns from flashing into long on, indicates that the machine is ready to work.
- Page 6 Interface Δ 1. Main Interface First line: Display DMX address is “1” Second line: Display the present inner core temperature and the temperature progress bar; isplays remaining time is 7 minutes and 24 seconds 2. Error Information Error information Explanation E0 System IC Systematic error E2 Temp.
- Page 7 User Mode User Mode is using mode DMX Channel 2 / 4 / 2+3 2 DMX Don’t change. 4 DMX Channel and 2+3 DMX Mode DMX Channel channel Channel are for special use. Tip Over Error ON/OFF Tilt function switch Default Useless Parameter...
- Page 8 Power ON all SPARKULAR mini. ® e) Assign DMX address for each unit of SPARKULAR mini. If use SHOWVEN host controller or FXcommander to control the machine please allocate a unique DMX address for each unit of machine. ®...
- Page 9 ® 4. Activate SPARKULAR mini machine by swipe RFID card ® a) Swipe an RFID card. Read the card as show below. SPARKULAR mini shows time remain if read successfully. ® b) SPARKULAR mini report E4 when remaining time is less than 8 minutes. c) Please note each RFID card come with 50g package HC8200 can increase single machine ®...
- Page 10 Wireless Control Information Δ 1. Wireless remote control mode: When use wireless remote control, please unplug DMX cable connection on machine, set Wireless Control at ON status, match the remote controller with machine, pull out the antenna on remote controller. 1 ON DMX address “1”...
- Page 11 (except for the instrument damage caused by human factors) in warranty period. Please don't repair machine without factory permission Below situations NOT included in warranty service: ® Damage caused by use other type of consumable which is not from SHOWVEN ® SHOWVEN authorized distributor.
- Page 12 Showven Technologies Co., Ltd. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: No.1 Tengda Road, Liuyang Economic & Technical Development Zone, 410300, Changsha, Hunan, P.R.China...
