- Page 1 USER MANUAL SPARKULAR ® V3.1 2022/05/17 Showven Technologies Co., Ltd.
- Page 3 Thanks for choosing SPARKULAR JET, we wish it will sparks up your show. ® Please read the following manual carefully before operating this product. Safety Instructions Δ Unauthorized repair are prohibited, it may cause serious incident. SPARKULAR JET can be used in rain, but after use please clean it, and store it at dry environment. ®...

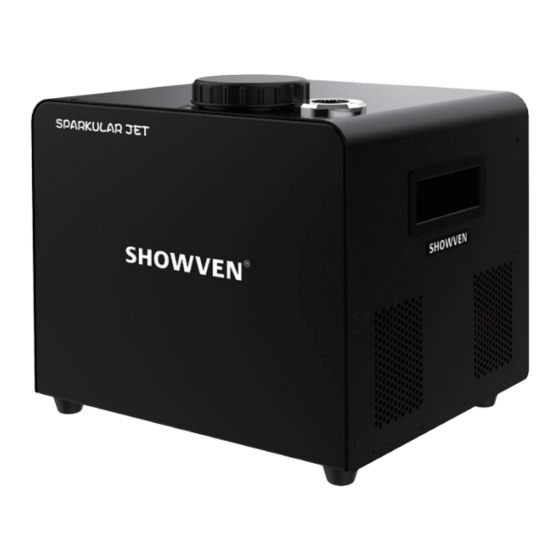

- Page 4 Description Δ SPARKULAR JET is another brand new effect originally invented by SHOWVEN . It generates ® ® a flashing SPARKULAR effect up to 10m. Built-in automatic air compressor, no external ® pressure tank needed, makes it easier for setup and fewer usage restrictions. It is perfect effects solution for stadium, concerts etc.
- Page 5 5-PIN DMX IN 5-PIN DMX OUT 3-PIN DMX IN 3-PIN DMX OUT POWER IN POWER OUT Diagram of Bottom Panel Operation Panel Δ 1. LED display area READY: Green light flashing means heating up. Turns from flashing into long on, indicates that the machine is ready to work DMX: Flashing shows that DMX signal is connected, light OFF means there is no DMX signal...
- Page 6 3. RFID area Composite Ti with RFID card, swiping cards used to identify parameters and types of granules. The RFID card is disposable, one card can only use one time. Interface Δ 1. Main Interface: First Line: DMX: DMX address P: pressure value Second Line: T: inner core temp.
- Page 7 Customized design for fireworks customer Feeding Test On/Off Test the feeding structure and feeding motor Fan Test On/Off Test the blowing fan Tip Over Error ON/OFF Tilt function switch *Please don't change default value without engineer's suggestion from SHOWVEN ®...
- Page 8 5. DMX Control SPARKULAR JET occupy 2 channels. ® First channel Function 0-111 Firing OFF 112-255 Firing. To avoid false triggering, trigger time should maintain above 0.2s. Second channel Function Clear material, the valve will open when clear material, and clear the 60-80 consumable remains in the heating chamber.
- Page 9 5. Activate SPARKULAR JET by swipe RFID card ® a) Swipe an RFID card. Read the card as show below. SPARKULAR JET screen flash once if read successfully. b) SPARKULAR JET will report E4 when remaining firing times is less than 10mines.
- Page 10 7. Programming and Firing a) Programming SPARKULAR JET, set the “Material Select” in the menu according to the ® consumable (HC8200 LARGE / MEDIUM / SMALL) you use. b) Heating up and pressurize the machine, it takes around 8min. c) Make sure the prescribed safety zone is clear. d) Firing.
- Page 11 (except for the instrument damage caused by human factors) in warranty period. Please don't repair machine without factory permission Below situations NOT included in warranty service: Damage caused by use other type of consumable which is not from SHOWVEN ® SHOWVEN authorized distributor.
- Page 12 PREMIUM FACTORY SAS - DISTRIBUTEUR OFFICIEL 1 Route Neuve, 71710 MONTCENIS – FRANCE Office +33 805 69 13 27 | +33 608 630 452 info@premiumfactory.eu | www.premiumfactory.eu...
