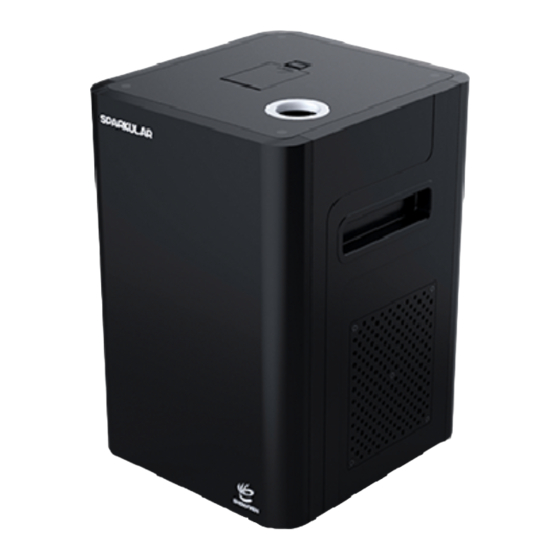

USER MANUAL
SPARKULAR
V1.0
2021/05/27
Showven Technologies Co., Ltd

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPARKULAR and is the answer not in the manual?

Questions and answers

Related Manuals for Showven SPARKULAR

Summary of Contents for Showven SPARKULAR

  • Page 1 USER MANUAL SPARKULAR V1.0 2021/05/27 Showven Technologies Co., Ltd...
  • Page 2 \ Maximum cascade of SPARKULAR is 6 units (3 units for 110V version SPARKULAR) with one standard power cable. Otherwise it may damage the machine and even cause fire \ For better heat dissipation, block the air intake and air outlet is prohibited ▲Description...

  • Page 3: Technical Specifications

    ▲Technical Specifications \ MODEL: BT01/BT02 \ DIMENSION: 200× 218× 305mm \ WEIGHT: 8.5kg \ VOLTAGE: 220V(BT01)/110V(BT02), 50/60Hz \ WORK POWER: 500W \ EFFECT HEIGHT: 1.5-5m adjustable \ INTERFACE: 3-pin XLR, POWER IN/OUT \ CONTROL: DMX 2 channels ▲Operation Panel 1. LED display area: READY FAU LT HEAT...

  • Page 4: Dmx Address

    3. RFID area: RFID card comes together with HC8200, it is a safety design, allow machines to identify the parameter and types of consumable it adding to the hopper of machine. It is obligatory to swiping the card before adding the consumable HC8200 to the hopper of machine. Note: Please note that the card enables the unit for 10-20 minutes of operation (which is the amount of time each bag of HC8200 last).
  • Page 5 9 11 13 15 17 19 21 23 25 27 29 31 33 35 Note: DMX address must set according to above rules. If use together with HOST CONTROLLER ZK6200/6300, each unit of SPARKULAR must use different DMX address, otherwise it may leads to signal interference.
  • Page 6 Power Selection 220/110Vac Default setting for BT01 is 220VAC. BT02 is 110VAC *For better performance of SPARKULAR, please don’t change the default value of density without permission from SHOWVEN. 6. DMX Channel Mode: The system occupies two channels. First Channel...

  • Page 7: Host Controller

    The Host Controller is an intelligent system specially designed for the multi-effects and remote control of SPARKULAR series products, so as to realize the simulation and demonstration of multi dynamic effects. The Host Controller has multiple interface types and control mode...

  • Page 8: Controller Operation Panel

    Firing / Stop of each unit of Sparkular by press related key of 1 to18. The Sparkular can be operated after the Pre-Heat warm up for 5 minutes. The indicator light will switch from flash green to always-on when heating up was ready. When firing is activated...
  • Page 9 Parameters can be programmed through number keys or up/down keys. Test: For test/demonstration of edit effects. When press the Test, Sparkular file will be operated and LED will display theeffect, but communication won’t be output. This is also for factory testing.
  • Page 10 Pre-heat: Press “Pre-heat” to heating up the SPARKULAR. It takes around 5min. For long time not use the machine, suggest to turn off the “Pre-heat” function and allow SPARKULAR to return to normal temperature. Firing: Activate/stop SPARKULAR programming. Left and right keys can make the cursor move on the different parameters.
  • Page 11 0.0s 3.0s 1.0s 0.0s 2.0s 1.0s 0.0s 1.0s 4. Configuration Menu F3 F3 CONFIG SPARKULAR Start No. SPARKULAR End No. Trigger Source : HAND Audio Level Audio Filter Delay 20ms Audio Stop : Firing Stop Mode Selection : Factory Mode...

  • Page 12: System Configuration And Connection

    On: DMX in activated, when there is DMX in signal, host controller will be locked, and DMX IN ON/OFF DMX signal will transfer to SPARKULAR. OFF: DMX in disabled. When use DMX IN function of Host DMX Address 1-512 controller, the DMX address of host controller.
  • Page 13 (1) Controller and Sparkular: Host Controller (ZK6200) DMX Communication Cable T6.3A 250V Sparkular (2) Controller and Sparkular: T6.3A 250V Sparkular Power Supply Cable (3) Power Link Cable Connection between Sparkular:...

  • Page 14: System Prepare And Start

    T6.3A 250V Sparkular Power Link Cable T6.3A 250V Sparkular (4) Communication Cable Connection between Sparkular: T6.3A 250V Sparkular DMX Communication Cable T6.3A 250V Sparkular ▲System Prepare and Start...
  • Page 15 1. Fill the Sparkular consumable HC8200 to Sparkular: Please fill in Sparkular Granules HC8200 into the hopper. Maximum volume for the hopper is 200g. There are three typesof HC8200 for SPARKULAR. Model HC8200 SMALL HC8200 MEDIUM HC8200 LARGE Effect height 1.5-3m...
  • Page 16 Programming SPARKULAR effects according to this manual. 7. Activate Sparkular machine: Swip an RFID card after filling each bag of HC8200. Read the card as show below. SPARKULAR shows time remain if read successfully. SPARKULAR report E4 when remaining time is less than 10 minutes.

  • Page 17: Warranty Instructions

    4. Damage caused by improper installation or use; For product damage not included in warranty range, we can provide paid service. Invoice and warranty card are necessary when applying for maintenance service from SHOWVEN. Warranty Card Product Name: Serial No.
  • Page 20 Showven Technologies Co., Ltd. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: Liuyang Economic Development Zone, Changsha, 410300, Hunan Province, P.R.China...
