SPARKULAR PRO
USER MANUAL
V1.0
Showven Technologies Co.,Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPARKULAR PRO and is the answer not in the manual?

Questions and answers

Related Manuals for Showven SPARKULAR PRO

Summary of Contents for Showven SPARKULAR PRO

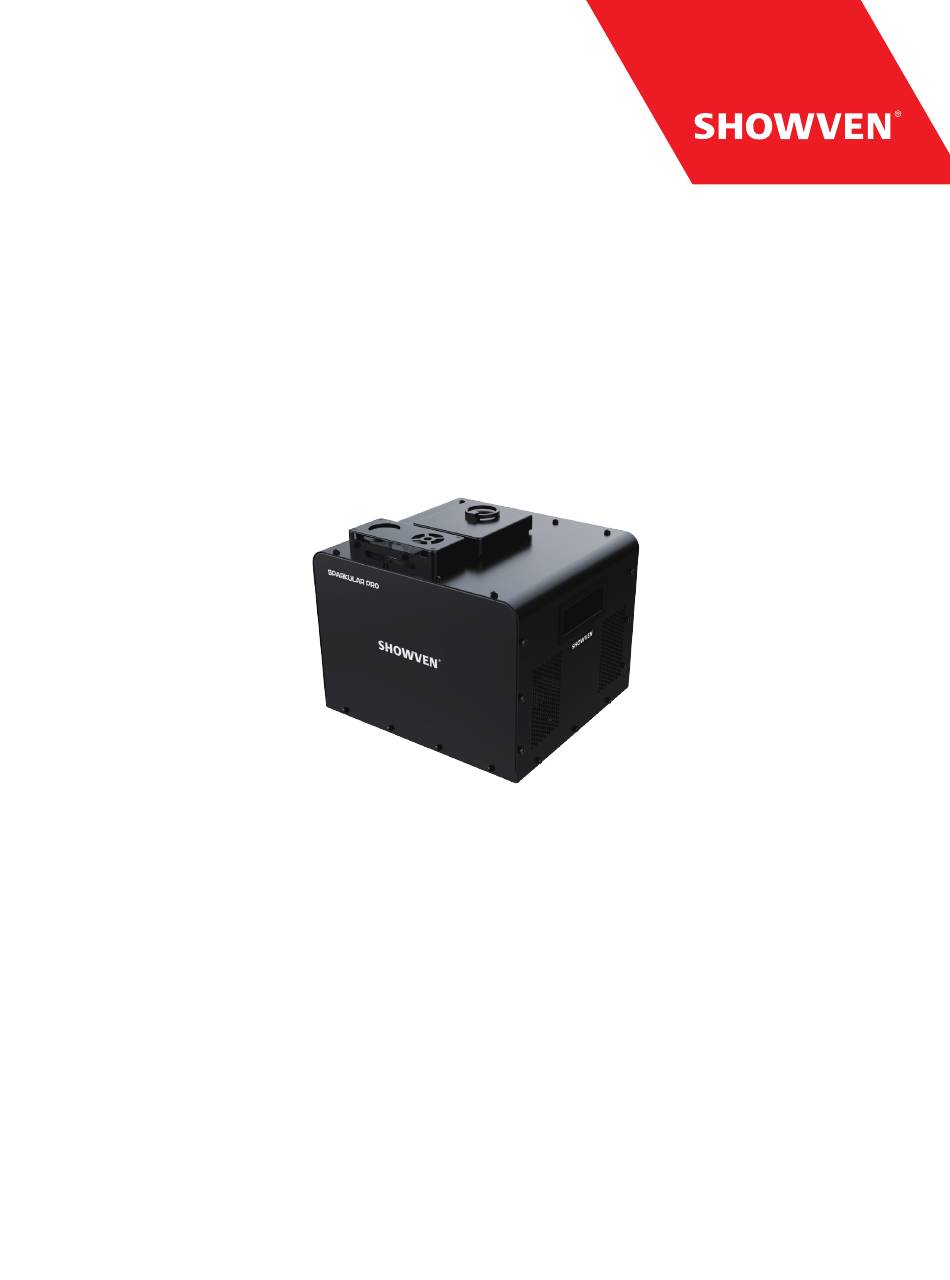

  • Page 1 SPARKULAR PRO USER MANUAL V1.0 Showven Technologies Co.,Ltd.

  • Page 2: Safety Considerations

    SPARKULAR PRO can NOT touch any objects in the air. 》Clear material is necessary both before and after the show. Please check nozzle of SPARKULAR PRO after each show, if there are consumable agglomerated in the nozzle, please clear it with screwdriver, otherwise it will affect the spark effects and even damage the machine.

  • Page 3: Technical Specifications

    Technical Specifications Product name SPARKULAR PRO Model BT71/BT72 Dimension 315x290x285mm Weight 16.5Kg Input AC 220VAC-240VAC,50/60HZ; 600W Max.cascade: 5PCS; AC 100VAC-120VAC,50/60HZ; 700W Max.cascade: 3PCS; Work Temp. -20°C~50°C Effect height HC8200 LARGE / HC8200 LARGEⅠ: 5~5.5m Height adjstable Effect direction Straight up...

  • Page 4: Main Interface

    RFID area: RFID card comes together with HC8200. It is a safety design, allows machine to identify the parameter and types of consumable. Please note that granules RFID card can increase the single machine specific working time. The card is disposable, can only use once.

  • Page 5: Setting Menu

    3 seconds to return to the main interface. Options Range Explanation Default is 580. Please don't change default value without engineer's Set Temperature 580-620 suggestion from SHOWVEN. LCD Backlight ON/OFF LCD screen backlight ON/OFF Density 70-100 Sparks density Factory Mode Factory mode is for engineer only.
  • Page 6 SPARKULAR PRO occupy 2 channels when use DMX. First channel Function 0-15 Fountain OFF 16-39 Fountain Height 1 40-63 Fountain Height 2 64-87 Fountain Height 3 88-111 Fountain Height 4 112-135 Fountain Height 5 136-159 Fountain Height 6 160-183 Fountain Height 7...

  • Page 7: Fixed Installation

    Please follow belowing rules to set DMX address when use SHOWVEN Host Controller, otherwise it may leads to signal interference. Sparkular No. DMX Address Fixed Installation Do not soak the machine in water, install on holder if necessary. Install in below way:...

  • Page 8: Warranty Instructions

    Warranty Instructions ▲ Sincere thanks for your choosing SPARKULAR PRO, you will receive quality service from us. ▲ The product warranty period is one year. If there are any quality problems within 7 days after shipping out from our factory, we can exchange a brand new same model machine for you.
  • Page 10 Showven Technologies Co., Ltd. Add: Building B1, Changsha E Center No.18, Xiangtai Road, Liuyang Economic Development Zone, Changsha City, 410300, Hunan Province, P.R.China. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn...
