Summary of Contents for Showven SPARKULAR FALL

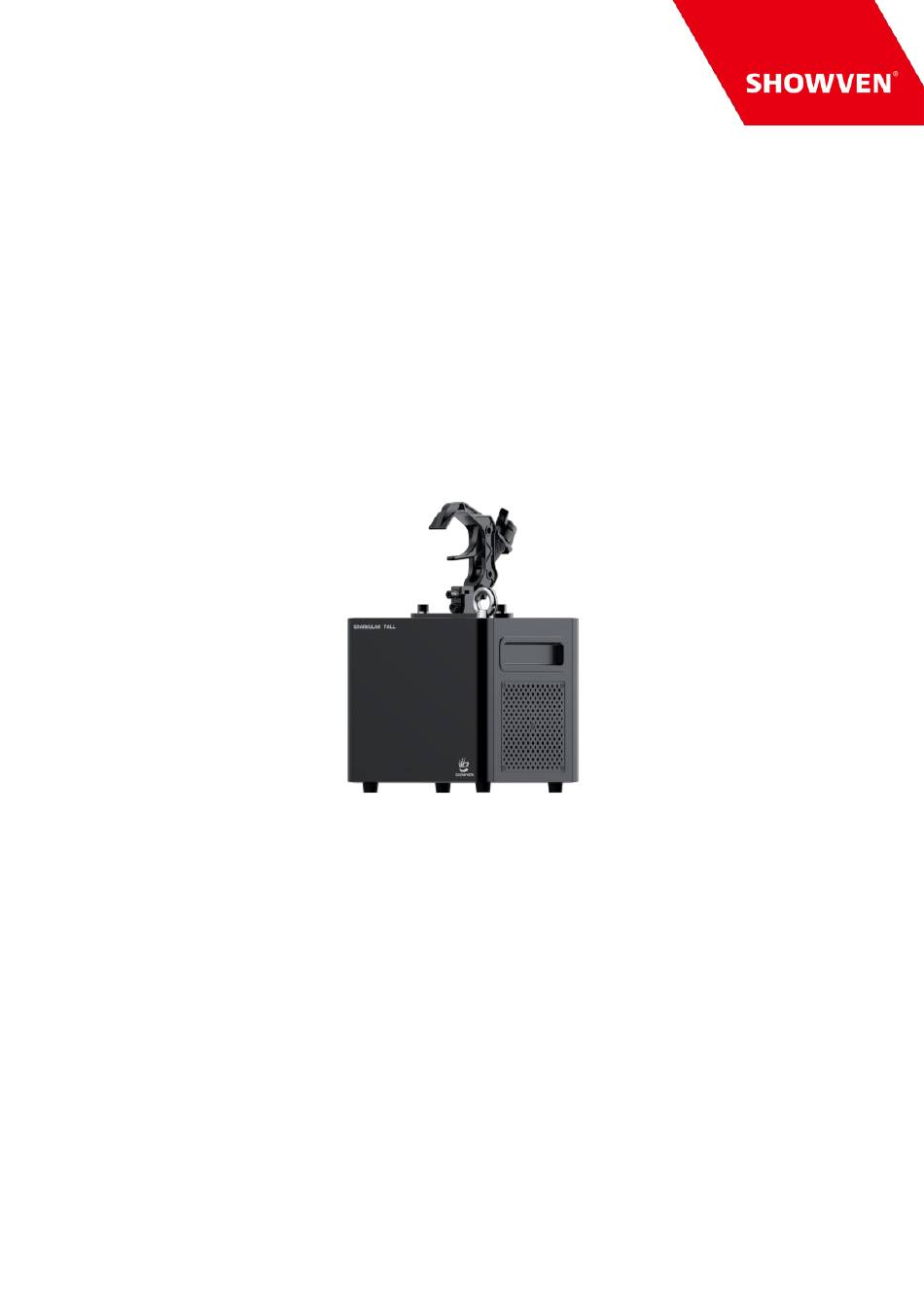

- Page 1 USER MANUAL SPARKULAR FALL V1.0 2021/03/30 Showven Technologies Co., Ltd...
-
Page 2: Safety Considerations
\ Ensure that children, animals and unauthorized persons don’t have access to the SPARKULAR FALL \ Clear material for Sparkular Fall is necessary both before the show and after the show, to clear the Composite Ti remains in the pipe. Check whether there are Composite Ti aggregate in... -
Page 3: Technical Specifications
▲Technical Specifications \ MODEL: BT04/BT05 \ DIMENSION: 196× 208× 192mm \ WEIGHT: 6.0kg \ VOLTAGE: 220V(BT04)/110V(BT05), 50/60Hz \ WORK POWER: 500W \ EFFECT HEIGHT: 2-7m(according to HC8200 type) \ INTERFACE:3-pin XLR, POWER IN/OUT \ CONTROL: DMX 2 channels, Wireless Remote \ ADAPTABLE TRUSS SIZE: 40-60mm ▲Operation Panel 1. - Page 4 3. Bottom Indication Light Off: Sparking or Not in preheating Quick Flashing: Preheating Long on: Preheated Slow Flashing: Error warning 3. RFID area: Composite Ti with RFID card, swiping cards used to identify parameters and types of granules. Please note that granules RFID card can increase the single machine specific working time.
- Page 5 2. Error information: Error information Explanation E0 System IC Systematic error E2 Temp. Sensor Temperature sensor was damaged Chassis temperature is too high to shut E3 P Temp. Over down Insufficient granules or remaining time, E4 Time Remain please swiping time card Inner core temperature is too high to shut E5 K Temp.
- Page 6 2. Host controller mode Using the host controller to moniter the working status of Sparkular Fall to achieve multiple dynamic effects and stable controlling.Sparkular Fall has high/low level the height settings 1-5 in host controller is low level,6-10 is high level.Please see the details in host controller manual.
- Page 7 Enter into Set DMX Address option menu,press “-”when the DMX address is “1”to set the first unit of Sparkular Fall’s DMX address into “1++”, this machine address is “1”, but it can also output DMX signal and turns into wireless host Sparkular Fall. Use...
- Page 8 HC8200 Fall length(Low Level) Fall length(High Level) MEDIUM LARGE LARGE-Ⅰ LARGE-Ⅱ...
-
Page 9: Warranty Instructions
4. Damage caused by improper installation or use; For product damage not included in warranty range, we can provide paid service. Invoice and warranty card are necessary when applying for maintenance service from SHOWVEN. Warranty Card Product Name: Serial No. - Page 12 Showven Technologies Co., Ltd. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: Liuyang Economic Development Zone, Changsha, 410300, Hunan Province, P.R.China...
