SPARKULAR SPIN

USER MANUAL

V1.0
Showven Technologies Co.,Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPARKULAR SPIN and is the answer not in the manual?

Questions and answers

Related Manuals for Showven SPARKULAR SPIN

Summary of Contents for Showven SPARKULAR SPIN

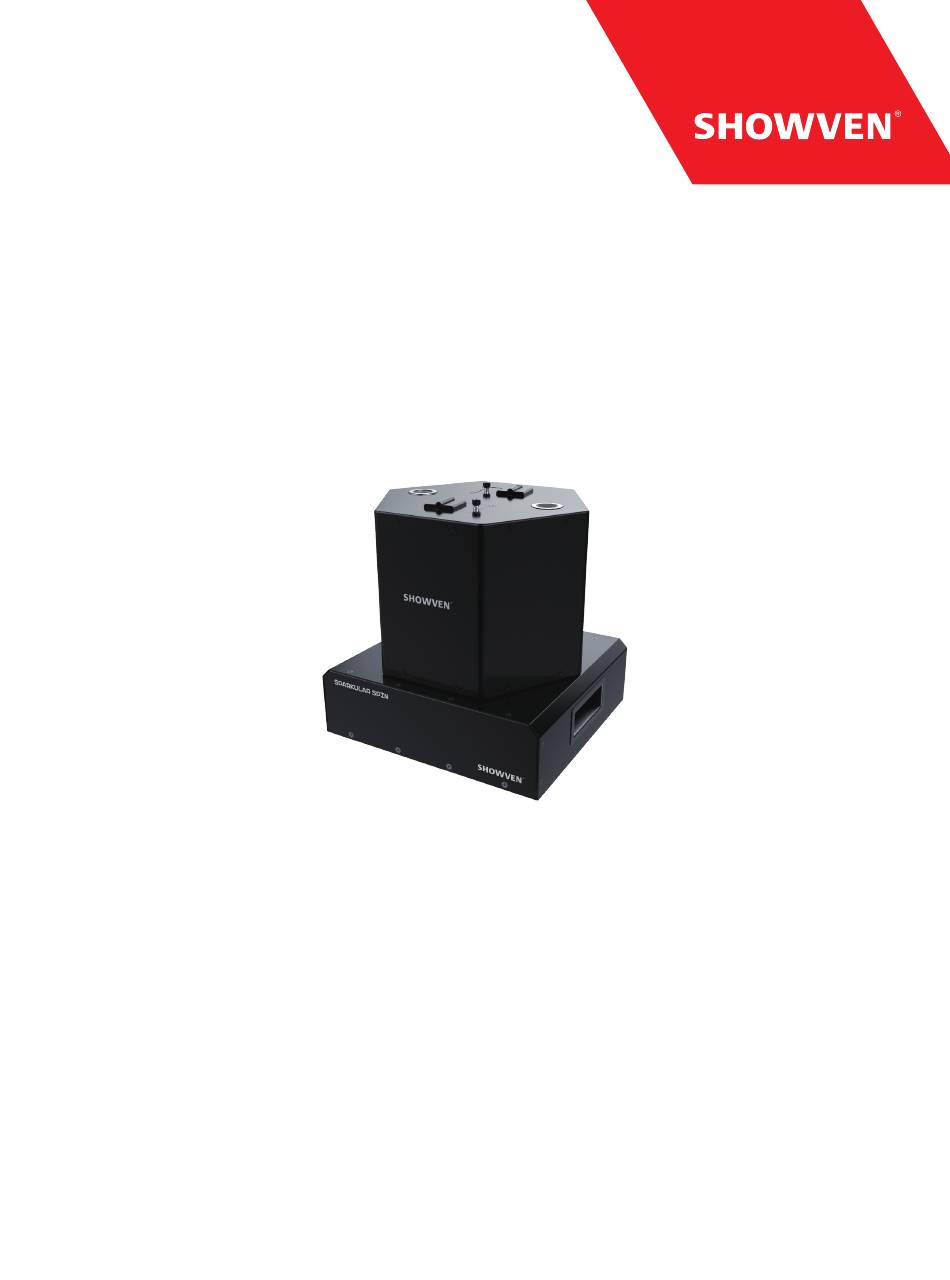

  • Page 1: User Manual

    SPARKULAR SPIN USER MANUAL V1.0 Showven Technologies Co.,Ltd.

  • Page 2: Safety Information

    》Keep the device dry, do NOT use in rain or snow. 》Make sure lid of feeding hopper are well covered when use SPARKULAR SPIN. Accidentally burning of Composite Ti can only use sands to extinguish. Composite Ti should keep away from moisture and stored in a dry sealed environ ment.

  • Page 3: Technical Specifications

    Technical Specifications Product name SPARKULAR SPIN Model BT81/BT82 Dimension 330x305x349mm Weight 20Kg Input AC220V,50/60Hz AC110V,50/60Hz Work Power 1000W Hopper capacity 200g*2 HC8200 consumption rate 20g/Min*2 Work Temp. -20°C~40°C Effect Height HC8200 LARGE: 2-5m adjustable HC8200 MEDIUM: 2-4m adjustable Casing Material...

  • Page 4: Main Interface

    RFID area: RFID card comes together with HC8200. It is a safety design, allows machine to identify the parameter and types of consumable. Please note that granules RFID card can increase the single machine specific working time. The card is disposable, can only use once.

  • Page 5: Setting Menu

    Setting Menu: Press “MENU”switch through setup menu. Set DMX address If controlled by Host Controller, please set DMX address as Set DMX Address 1-512 1, 3, 5, 7,…2n-1, otherwise it may leads to signal interference Wireless Remote ON/OFF Wireless function ON/OFF Manual Fountain ON/OFF Manual firing ON/OFF, for test only...
  • Page 6 DMX channel – 2 channel mode: First channel Function (both nozzle) 0-15 Fountain OFF 16-39 Height Low, not spin (related firing height on HOST CONTROL is 1) 40-63 Height Middle, not spin (related firing height on HOST CONTROL is 2) 64-87 Height High, not spin (related firing height on HOST CONTROL is 3) 88-111...
  • Page 7 DMX channel – 4 channel mode: First channel (Nozzle 1) Function 0-15 Nozzle 1 Fountain OFF 16-255 Nozzle 1 effect height adjust Second channel (Status) Function 60-80 Clear Material (perform after each show) 20-40 Emergency Stop 0-10 Pre-heat OFF (disabled when auto-heat ON) 240-255 Pre-heat ON (disabled when auto-heat ON) Third Channel (Nozzel 2)
  • Page 8 Fourth button: Height Low Note: Press the first button to match device with remote control within 5s when turn on the SPARKULAR SPIN. If it is not work after match with machine please check the battery status of remote control.

  • Page 9: Warranty Instructions

    Warranty Instructions ▲ Sincere thanks for your choosing SPARKULAR SPIN, you will receive quality service from us. ▲ The product warranty period is one year. If there are any quality problems within 7 days after shipping out from our factory, we can exchange a brand new same model machine for you.
  • Page 10 Showven Technologies Co., Ltd. Add: Building B1, Changsha E Center No.18, Xiangtai Road, Liuyang Economic Development Zone, Changsha City, 410300, Hunan Province, P.R.China. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn...
