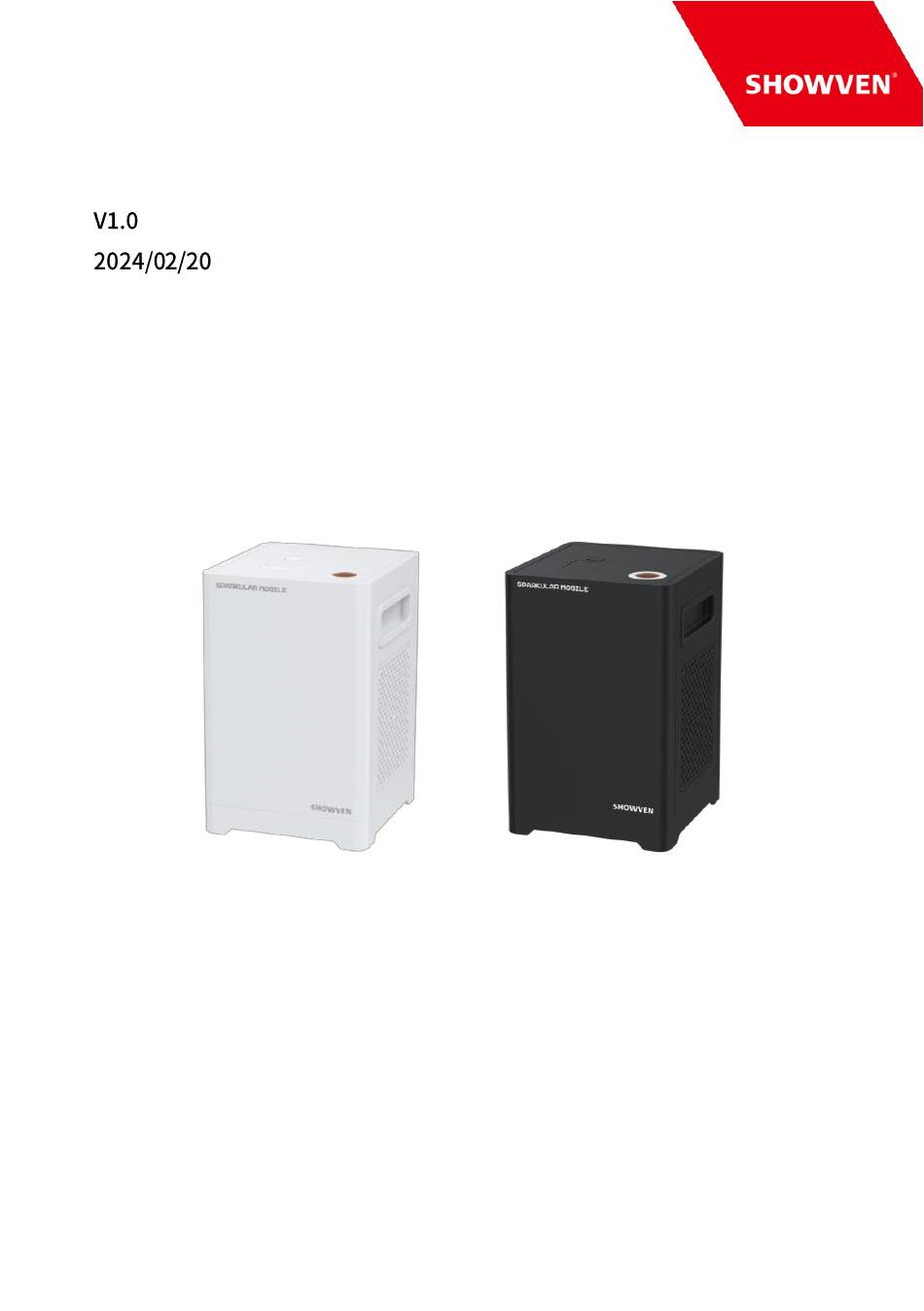

- Page 1 USER MANUAL SPARKULAR ® MOBILE Showven Technologies Co., Ltd.
- Page 2 Thanks for choosing SPARKULAR MOBILE, we wish it will sparks up your show. ® Please read the following manual carefully before operating this product. Safety Instructions Δ Unauthorized repair are prohibited, it may cause serious incident. Keep SPARKULAR MOBILE dry and do NOT use in rain or snow. ®...

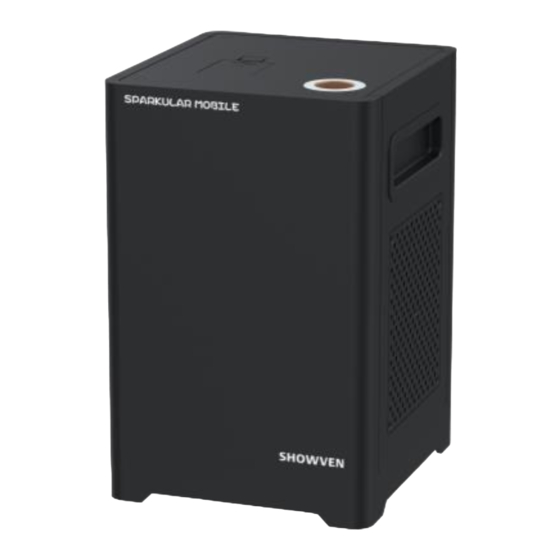

- Page 3 Description Δ SPARKULAR® MOBILE is a compact and portable SPARKULAR® machine that is specifically designed for small party settings. It can be placed anywhere without the need for complex wiring. Technical Specifications Δ DIMENSION: 168 180 257mm WEIGHT: 6kg CHASSIS MATERIAL: FLAME RETARDANT ABS AND ALUMINUM VOLTAGE AC 100-240V 50/60Hz WORK POWER: 100W BATTERY: LITHIUM ION BATTERY(10000mAh @25.2V)
- Page 4 Structure of SPARKULAR MOBILE ® Δ Output Nozzle 2.Feeding Hopper Lid 3.Cooling Fan 4.Swipe area 5.LCD Screen 6.Power Switch 7.DC 5V Output 8.DMX OUT 9.DMX IN 10.POWER IN 11.POWER OUT 12.Battery 13.Hand Screws of battery compartment Operation Panel Δ 1. LED display area READY: After turn on machine, it will automatically preheat around 2 minutes, when the "READY"...
- Page 5 2. Control button area MENU Short press to switch interface, press and hold for 3 seconds can switch to the advanced setup interface Parameters down Parameters up ENTER Confirm and save parameters. If there is no button operation within 15 seconds, the display will automatically switch to the main interface.
- Page 6 Error Information Error codes Error information Explanation System Systematic error Fan/Shaft The fan motor or shaft motor is wrong Temp. Sensor Temperature sensor is not connected or damage P Temp. Over Chassis over-temperature Insufficient granules or remaining time, please swiping Time Remain time card K Temp.
- Page 7 Clear Material 240-255 Pre-heat ON 3CH-P: In 3 channel mode, SPARKULAR MOBILE occupies 2 operational DMX channels and a separate safety channel. Note The safety channel address can be assigned through the "Safety Address" in menu. After the setting the safety channel, "DMX" address and the "SAFE" address will display on the main interface alternatively.
- Page 8 Turn the machine upside down ○ ② Remove the screws of the bottom plate. ③ Take out the wires and connect. (Make sure POWER SWITCH of macine stays at OFF status when connecting) ④ Put the wire back and cover the bottom plate, screw tight the screws. 2.
- Page 9 e) SPARKULAR MOBILE can also be installed on truss through four M10 screw hole at the ® bottom. 3. Fill SPARKULAR MOBILE ® a) Open powder bags and fill the feeding hopper. Hopper capacity of SPARKULAR MOBILE is ® 100g. b) Choose correct consumable according to the application scenario.
- Page 10 Note: Wireless function disabled when SPARKULAR MOBILE connect with DMX cable. ® When the machine is occasionally not working, may be caused by interference, please press the High effect ON or Low effect ON button again. Wireless control is easily influenced by interference, suggests to stay as close to machine as possible when use remote controller, and machines cannot use metal shielding When the indicator light becomes weak on the remote controller, please replace the battery.
- Page 11 (except for the instrument damage caused by human factors) in warranty period. Please don't repair machine without factory permission Below situations NOT included in warranty service: Damage caused by use other type of consumable which is not from SHOWVEN ® SHOWVEN authorized distributor.
- Page 12 Showven Technologies Co., Ltd. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: No.1 Tengda Road, Liuyang Economic & Technical Development Zone, 410300, Changsha, Hunan, P.R.China...
