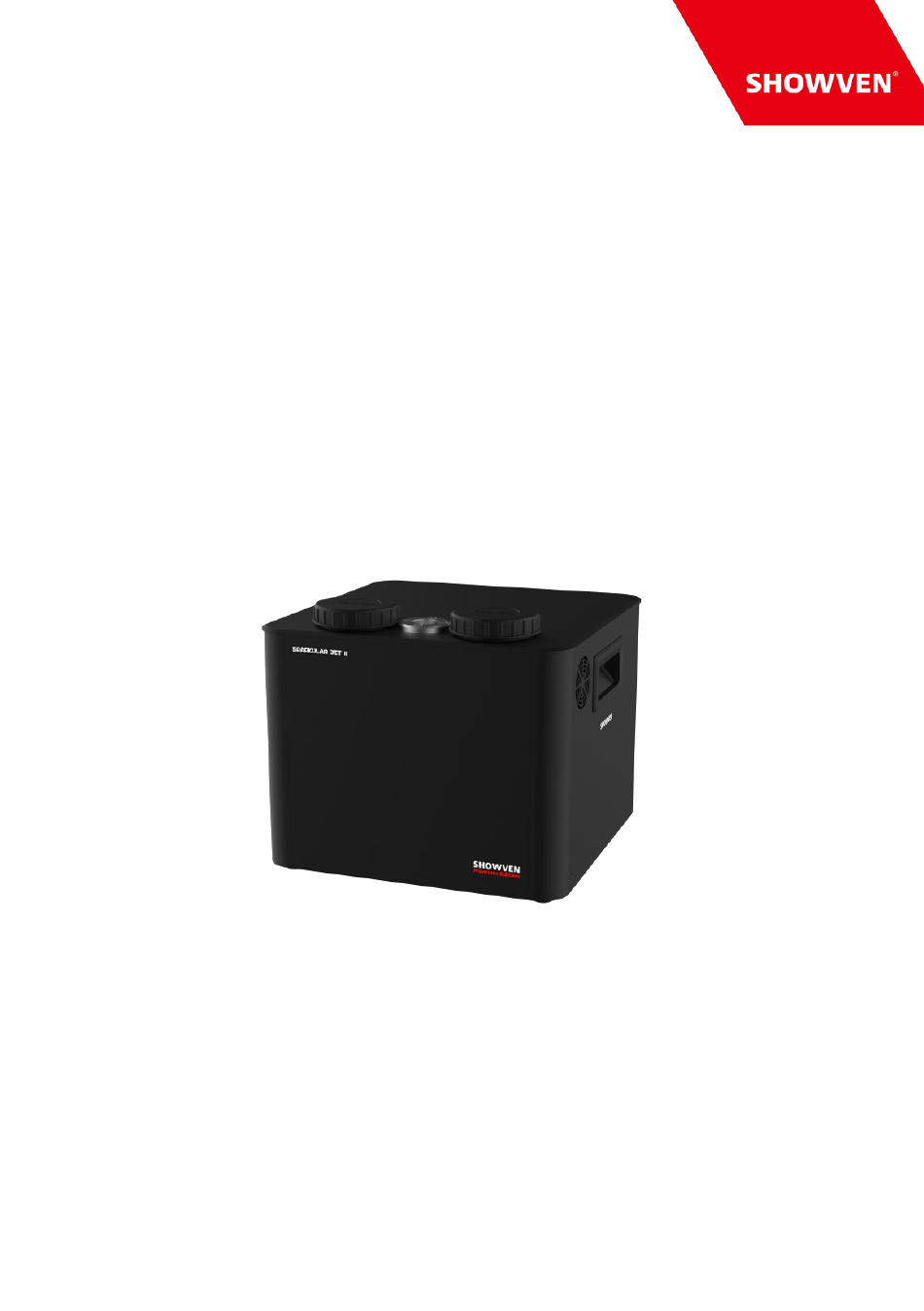

- Page 1 USER MANUAL SPARKULAR JET II ® V1.0 2025/02/14 Showven Technologies Co., Ltd.
- Page 3 Thanks for choosing SPARKULAR JET II, we wish it will sparks up your show. ® Please read the following manual carefully before operating this product. Safety Instructions Δ Unauthorized repair are prohibited, it may cause serious incident. SPARKULAR JET can be used in rain, but after use please clean it, and store it at dry environment. ®...
- Page 4 Description Δ SPARKULAR JET II is a brand new upgrade based on our first generation of SPARKULAR ® ® combined with valuable feedbacks from our customers, latest technologies and our years of experiences. It is with much shorter firing delay and allows triple continuous shots within 1s delay.
- Page 5 Structure of SPRKULAR JET II ® Δ Output Nozzle Feeding Hopper 1 Feeding Hopper 2 LCD screen 5-PIN DMX OUT 5-PIN DMX IN 3-PIN DMX OUT 3-PIN DMX IN POWER IN POWER OUT 9-60V External Trigger Fuse Power Switch (Flash means machine is heating up, long ON means device reached setting temp.)
- Page 6 Bottom diagram Operation Panel Δ 1. Display area MENU: Press enter setting interface UP: Parameter up DOWN: Parameter down MONI: Status monitoring of main part inside machine...
- Page 7 2. Monitoring Interface From this interface, we can check the pressure, PCB TEMP. and motor status of machine. 3. RFID area RFID card come with consumable HC8200 bags, swiping card to identify parameters and types of granules. The RFID card is disposable, one card can only use one time. Each card can increase single machine 30 shots, the maximum recharge shots for SPARKULAR JET II is 120 shots.
- Page 8 Display Interface Δ 1. Main Interface: Status Bar 2N / 6N: channel mode L / M / S: consumable selection HC8200 LARGE / MEDIUM / SMALL :± : External trigger ON Jet Delay: Jet delay duration Data Bar DMX: DMX address, red background means DMX connected. PRESS: Device present pressure value, 70 means 7bar.
- Page 9 E4 Time Remain Firing time is insufficient, please swipe RFID card E5 K Temp. Over Machine shutdown due to heating chamber over temperature Heating fail, problem on heating PCB or mainboard, if disappear E6 Heat Fail automatically, please check the power supply. E7 Tip Over Tilt sensor activated when machine slant over 45 degrees E8 Pressure Sensor...
- Page 10 Fan testing ShaftA Test Shaft motor A testing ShaftB Test Shaft motor B testing 7. DMX Channel Mode SPARKULAR JET II with 2 different channel mode optional. 2 channel mode 2CH-N and 6 channel mode 6CH-N. 2CH-N: Channel Function Value...
- Page 11 NOTE: 1. If activate enhanced feeding, please firing within 1min, otherwise enhanced feeding effect will disable. 2. SPARKULAR JET II capable of three continuous shots, but the time gap between each shot ® should be equal or more than 1s. It takes around 30s to achieve target pressure after 3 continuous shots.
- Page 12 JET II is 450g each. ® b) Make sure the powder is originally from SHOWVEN directly or SHOWVEN authorized distributor, other types of powder may block even damage the machine. c) Choose correct consumable according to the application scenario. SPARKULAR JET II can ®...
- Page 13 Swipe an RFID card. Read the card as show below. SPARKULAR JET II screen flash once if ® read successfully. SPARKULAR JET II only compatible with V2.0 RFID card from SHOWVEN. ® b) SPARKULAR JET II will report E4 when remaining firing times is less than 10times.
- Page 14 6. urn off and clean up a) Power off SPARKULAR JET II, allow SPARKULAR JET to cool down after show. ® ® b) Disconnect all POWER and DMX cables. c) Empty the remaining HC8200 in hopper, and store the remaining HC8200 in a dry sealed bottle for next time use.
- Page 15 (except for the instrument damage caused by human factors) in warranty period. Please don't repair machine without factory permission Below situations NOT included in warranty service: Damage caused by use other type of consumable which is not originally from SHOWVEN ® Damage caused by improper transportation, usage, management, and maintenance, or damage caused by human factors;...
- Page 16 Showven Technologies Co., Ltd. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: No.1 Tengda Road, Liuyang Economic & Technical Development Zone, Changsha, Hunan, 410300, P.R.China...
