- Page 1 USER MANUAL SPARKULAR FALL ® V2.1 2022/06/24 Showven Technologies Co., Ltd.
- Page 2 ® Thanks for choosing SPARKULAR FALL, we wish it will sparks up your show. Please read the following manual carefully before operating this product. Safety Instructions Δ Unauthorized repair are prohibited, it may cause serious incident. ® Keep SPARKULAR FALL dry and do NOT use in rain or snow. ®...

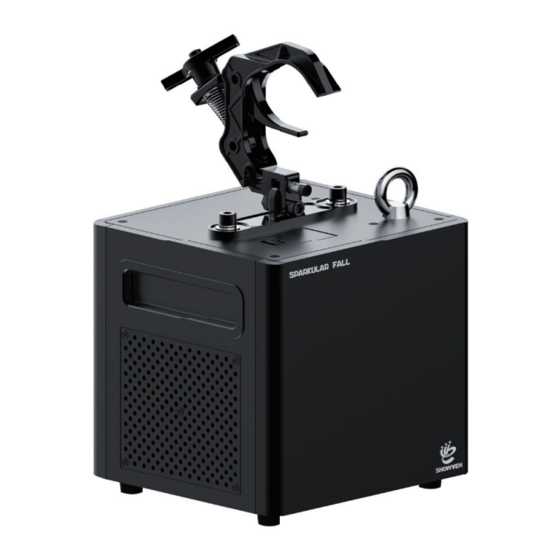

- Page 3 Description Δ ® SPARKULAR FALL is hanging special effects equipment for indoor/outdoor use to generate dazzling silver “waterfall” sparks effects. According to different usage scenarios, operator can self define various types of “spark curtain” effects vary from 2m to 7m by use of different types of HC8200.
- Page 4 Air Intake DMX IN DMX OUT Power Switch Fuse Power IN Power OUT LCD Screen Cooling Fan Schematic diagram of the top fixing hole Technical Specifications Δ MODEL: BT04/BT05 DIMENSION: 196× 208× 192mm WEIGHT: 6.0kg VOLTAGE: 220V(BT04)/110V(BT05), 50/60Hz WORK POWER: 500W EFFECT HEIGHT: 2-7m(according to HC8200 type) INTERFACE: 3-pin XLR, POWER IN/OUT CONTROL: DMX 2 channels, Wireless Remote...
- Page 5 2. Control button area: MENU Press to switch through menu, press and hold for 3s enter advanced menu Parameters down Parameters up ENTER: Confirm and save parameters. 3. Bottom Indication Light Off: Preheating not activated or machine is firing Quick Flashing: Preheating Long on: Preheated Slow Flashing: Error warning The indication light can be turned off in menu.
- Page 6 2. Error information Error information Explanation E0 System IC Systematic error E2 Temp. Sensor Temperature sensor is not connected or damage E3 P Temp. Over Chassis over-temperature E4 Time Remain Insufficient granules or remaining time, please swiping time card E5 K Temp. Over Heating chamber over-temperature E6 Heat Fail Heating failed...
- Page 7 5. DMX mode ® When using the DMX controller, SPARKULAR FALL occupy 2 DMX channel The First channel Functions 0-15 Firing OFF 16-135 Low Level Fountain ON 136-255 High Level Fountain ON The second channel Functions 60-80 Clear Material 20-40 Emergency Stop 0-10 Pre-heat OFF (Disable in Auto-heat)
- Page 8 Power ON all SPARKULAR FALL. ® e) Assign DMX address for each unit of SPARKULAR FALL. If use SHOWVEN host controller or FXcommander to control the machine please allocate a unique DMX address for each unit of machine. ®...
- Page 9 C N . 00000001 6. Programming and Firing ® a) Programming SPARKULAR FALL, set the firing height, firing sequences etc. b) Heating up machine, it takes around 5min. it various according to the voltage and environment temperature. c) Make sure the prescribed safety zone is clear. d) Suggest to clear material before firing.
- Page 10 1 ON DMX address “1” ON 1 OFF DMX address “1” OFF 2 ON DMX address “3” ON 2 OFF DMX address “3” OFF 3 ON DMX address “5” ON 3 OFF DMX address “5” OFF Match the machine with Clean material for 3 CLEAR remote...
- Page 11 (except for the instrument damage caused by human factors) in warranty period. Please don't repair machine without factory permission Below situations NOT included in warranty service: ® Damage caused by use other type of consumable which is not from SHOWVEN ® SHOWVEN authorized distributor.
- Page 12 Showven Technologies Co., Ltd. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: No.1 Tengda Road, Liuyang Economic & Technical Development Zone, 410300, Changsha, Hunan, P.R.China...
