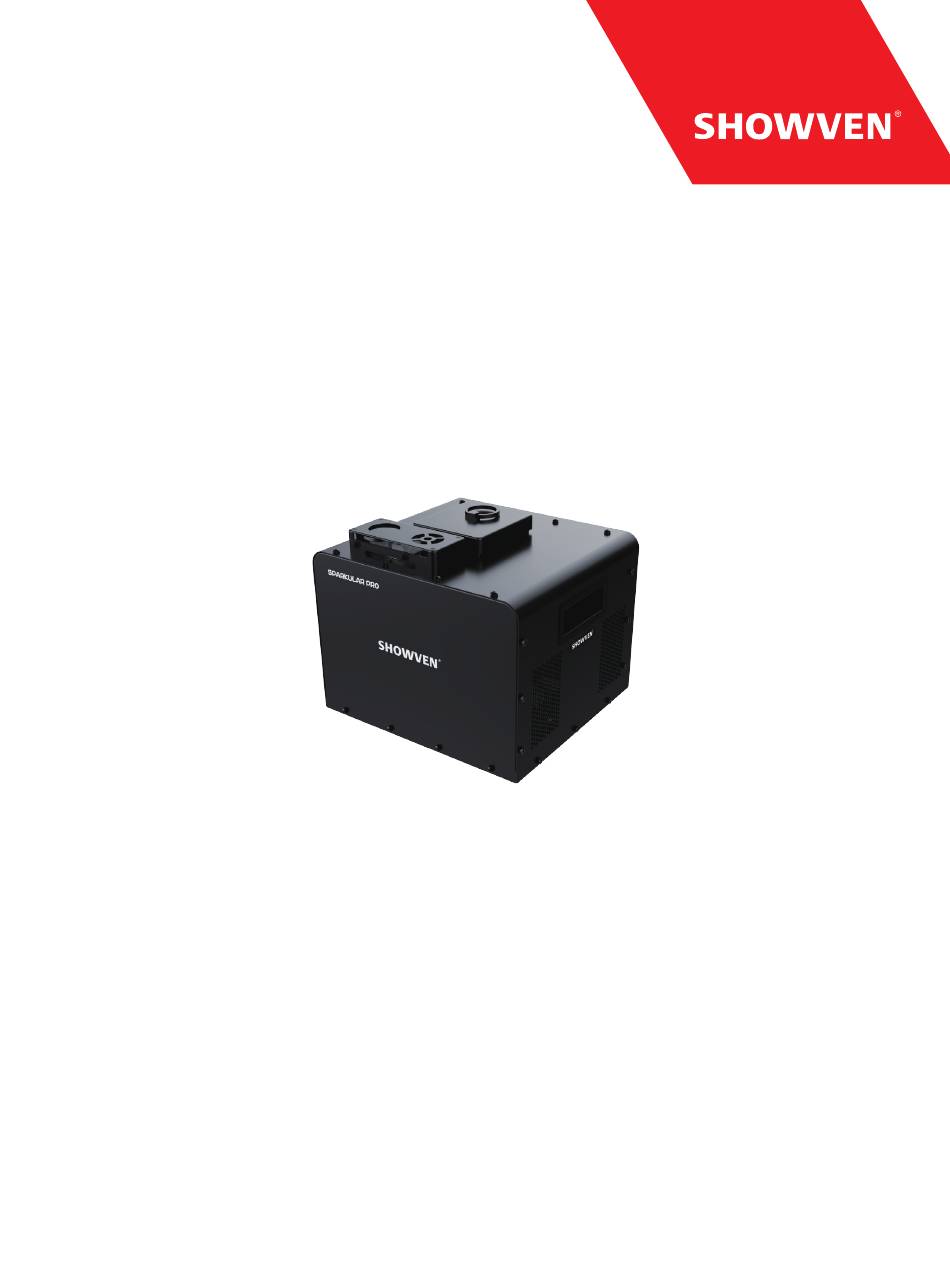

  • Page 1 SPARKULAR PRO USER MANUAL V1.0 Showven Technologies Co.,Ltd.
  • Page 2: Safety Considerations

    》please be noted that there may sparks or remains fall to the ground when use HC8200 LARGE and LARGEⅠ. Features SPARKULAR PRO is derived from SHOWVEN original SPARKULAR technology platform for outdoor installations and professional outdoor show market. IP55 rated weatherproof enclosure design allows SPARKULAR PRO works even in heavy rainfall.
  • Page 3: Technical Specifications

    Technical Specifications Product name SPARKULAR PRO Model BT71/BT72 Dimension 315x290x285mm Weight 16.5Kg Input AC 220VAC-240VAC,50/60HZ; 600W Max.cascade: 5PCS; AC 100VAC-120VAC,50/60HZ; 700W Max.cascade: 3PCS; Work Temp. -20°C~50°C Effect height HC8200 LARGE / HC8200 LARGEⅠ: 5~5.5m Height adjstable Effect direction Straight up Hopper capacity 1200g Height adjustable...
  • Page 4: Main Interface

    RFID area: RFID card comes together with HC8200. It is a safety design, allows machine to identify the parameter and types of consumable. Please note that granules RFID card can increase the single machine specific working time. The card is disposable, can only use once.
  • Page 5: Setting Menu

    3 seconds to return to the main interface. Options Range Explanation Default is 580. Please don't change default value without engineer's Set Temperature 580-620 suggestion from SHOWVEN. LCD Backlight ON/OFF LCD screen backlight ON/OFF Density 70-100 Sparks density Factory Mode Factory mode is for engineer only.
  • Page 6 SPARKULAR PRO occupy 2 channels when use DMX. First channel Function 0-15 Fountain OFF 16-39 Fountain Height 1 40-63 Fountain Height 2 64-87 Fountain Height 3 88-111 Fountain Height 4 112-135 Fountain Height 5 136-159 Fountain Height 6 160-183 Fountain Height 7 184-207 Fountain Height 8 208-231...
  • Page 7: Fixed Installation

    Please follow belowing rules to set DMX address when use SHOWVEN Host Controller, otherwise it may leads to signal interference. Sparkular No. DMX Address Fixed Installation Do not soak the machine in water, install on holder if necessary. Install in below way:...
  • Page 8: Warranty Instructions

    1. Damage caused by improper transportation, usage, management, and maintenance, or damage caused by human factors; 2. Disassemble, modify or repair products without Showven’s permission; 3. Damage caused by external reasons (lightning strike, power supply etc); 4. Damage caused by improper installation or use;...
  • Page 10 Phone: 407-857-8770 Distributor: Fax: 407-857-8771 Email: sales@techni-lux.com www.techni-lux.com Showven Technologies Co., Ltd. Add: Building B1, Changsha E Center No.18, Xiangtai Road, Liuyang Economic Development Zone, Changsha City, 410300, Hunan Province, P.R.China. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn...
