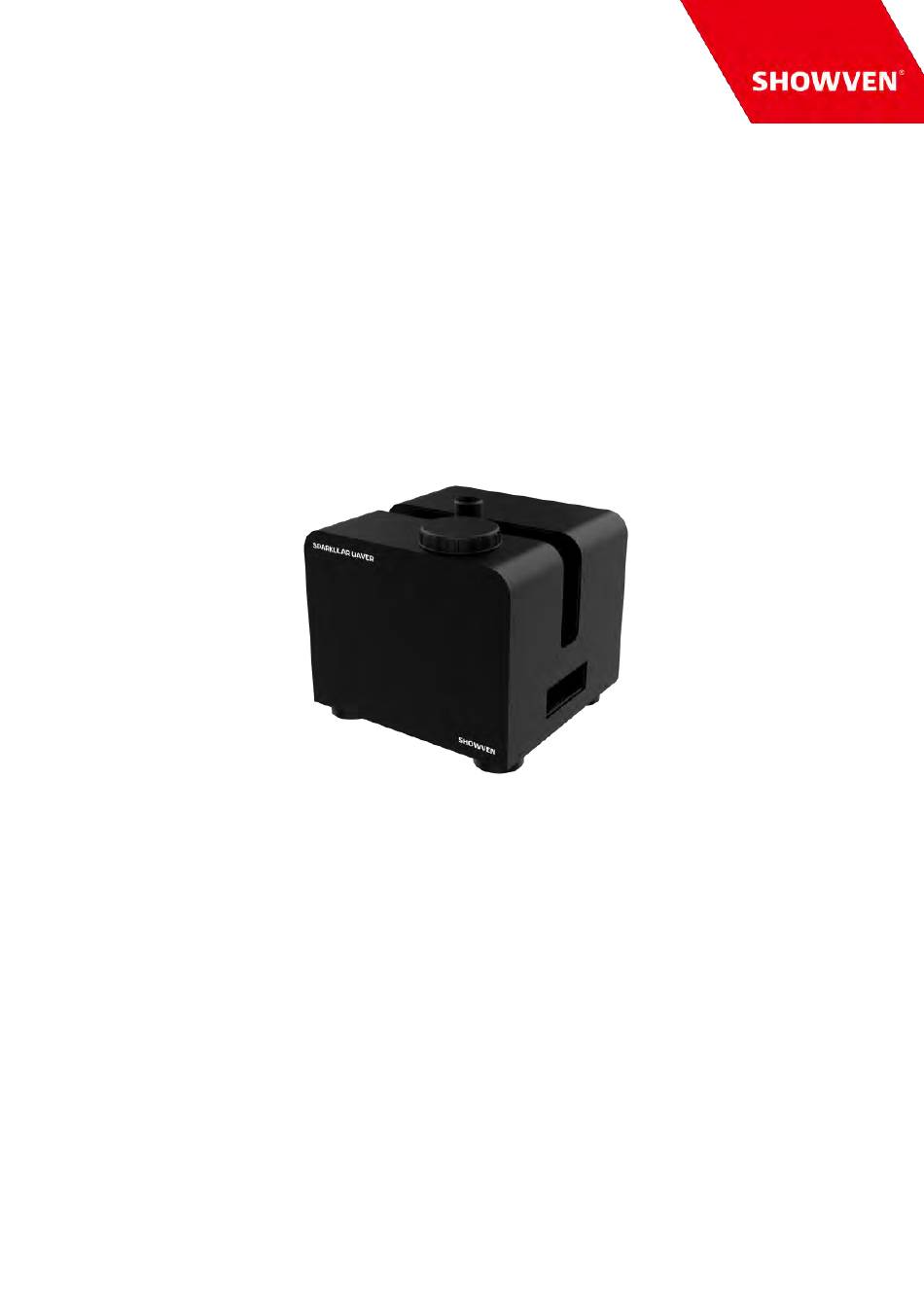

- Page 1 USER MANUAL SPARKULAR WAVER ® V1.1 2023/05/09 Showven Technologies Co., Ltd.
- Page 3 ® Thanks for choosing SPARKULAR WAVER, we wish it will sparks up your show. Please read the following manual carefully before operating this product. Safety Instructions Δ Unauthorized repair are prohibited, it may cause serious incident. Please keep the device dry. ®...
- Page 4 Description Δ SPARKULAR® WAVER is 180 degree waving spark effect originally developed by SHOWVEN. It can firing in any single direction between -90 to 90 degree or in waving sequences etc. Various editable sparks effect brings infinite creativity to your stage.
-
Page 5: Bottom Panel
Structure of SPARKULAR WAVER ® Δ 1. Feeding Hopper Lid 2. Output Nozzle 3. ARM alarming light 4. Display Screen 5. Power Switch 6. Fuse 7. Power IN 8. Power OUT 9. 3-PIN DMX IN 10. 5-PIN DMX IN 11. 5-PIN DMX OUT 12. - Page 6 Operation Panel Δ 1. Keypad area MENU: Press enter setting interface UP: Parameter up DOWN: Parameter down MONI: Status monitoring of main part inside machine 2. Monitoring Interface From this interface, we can check the voltage and motor status of machine. 3.
- Page 7 4. ARM alarming light ON: DMX connected or wireless remote function ON. BLINK: DMX armed, ready for firing OFF: No DMX connection and wireless remote function OFF. Display Interface Δ 1. Main Interface: Background color of DMX area: red means DMX connected. Background color of TEMP area: red means heating chamber temp.
- Page 8 4. Main Menu Parameters in main menu show in below table, press “UP”/ “DOWN” to change the value, please remember to press “SAVE” to save the setting. Options Range Default Explanation Set DMX Address 1-512 Set DMX Address Manual heat ON/OFF setting Manual Heat ON/OFF Manual Fountain ON/OFF setting...
- Page 9 *For better performance of SPARKULAR WAVER, please don’t change the default value ® without permission from SHOWVEN 6. DMX Channel Mode SPARKULAR WAVER occupies 6 operational channels. First channel is for effect height, second channel for effect trigger and clear material etc.
- Page 10 -30° -45° -60° -75° -90° 7. Firing Sequence SPARKULAR WAVER has 72 preset sequences, operator use related channel DMX value or sequence No. to access certain sequence. Below, you can find sequence list. Firing CH5 DMX Ignition angle Description Duration Reference Value Depends Any angle...
- Page 11 Depends 60° Fixed angle firing 31-33 on CH3 Depends 75° Fixed angle firing 34-35 on CH3 Depends 90° Fixed angle firing 36-38 on CH3 (-90° ) ~ 90° Slow waving once 39-40 90° ~ (-90° ) Slow waving once 41-43 90°...
- Page 12 90° ~ 45° ~ 90° 161-163 Slow waving 3 times 90° ~ 30° ~ 90° 164-165 Slow waving 3 times Slow waving gradually 90° ~ 0° 166-168 decreases angle Slow waving gradually (-90° ) ~ 0° 169-170 decreases angle Slow waving gradually 90°...
- Page 13 Suggest to plug in a DMX terminator into the DMX OUT in last unit of machine to improve signal reliability. Signal amplifier is required for long distance (>200m) DMX signal transmission (SHOWVEN DMX splitter 8 with bidirectional signal transmission, thus can get signal feedback from device).
- Page 14 NOTE: If use SHOWVEN HOST CONTROLLER ZK6200/6300 to control the firing, please press “F3” to choose “CIRCLE FLAMER-6CH”, then set the firing sequence, as for preset sequence the firing duration is fixed, so please set firing duration 1s.
- Page 15 (except for the instrument damage caused by human factors) in warranty period. Please don't repair machine without factory permission Below situations NOT included in warranty service: ® Damage caused by use other type of consumable which is not from SHOWVEN ® SHOWVEN authorized distributor.
- Page 16 Phone: 407-857-8770 Distributor: Fax: 407-857-8771 Email: sales@techni-lux.com www.techni-lux.com Showven Technologies Co., Ltd. Tel: +86-731-83833068 Web: www.showven.cn E-mail: info@showven.cn Add: Liuyang Economic Development Zone, Changsha, 410300, Hunan Province, P.R.China...
