Setting Up a ReadiConvene™ System
Installing the I/O Card for the ReadiConvene IAM Blade
To install the I/O card for the ReadiConvene IAM blade:
1
Figure 1-5
2
Figure 1-6
3
4
5
Polycom, Inc.
Remove the right rear I/O cover by loosening the four screws as
shown in the following illustration.

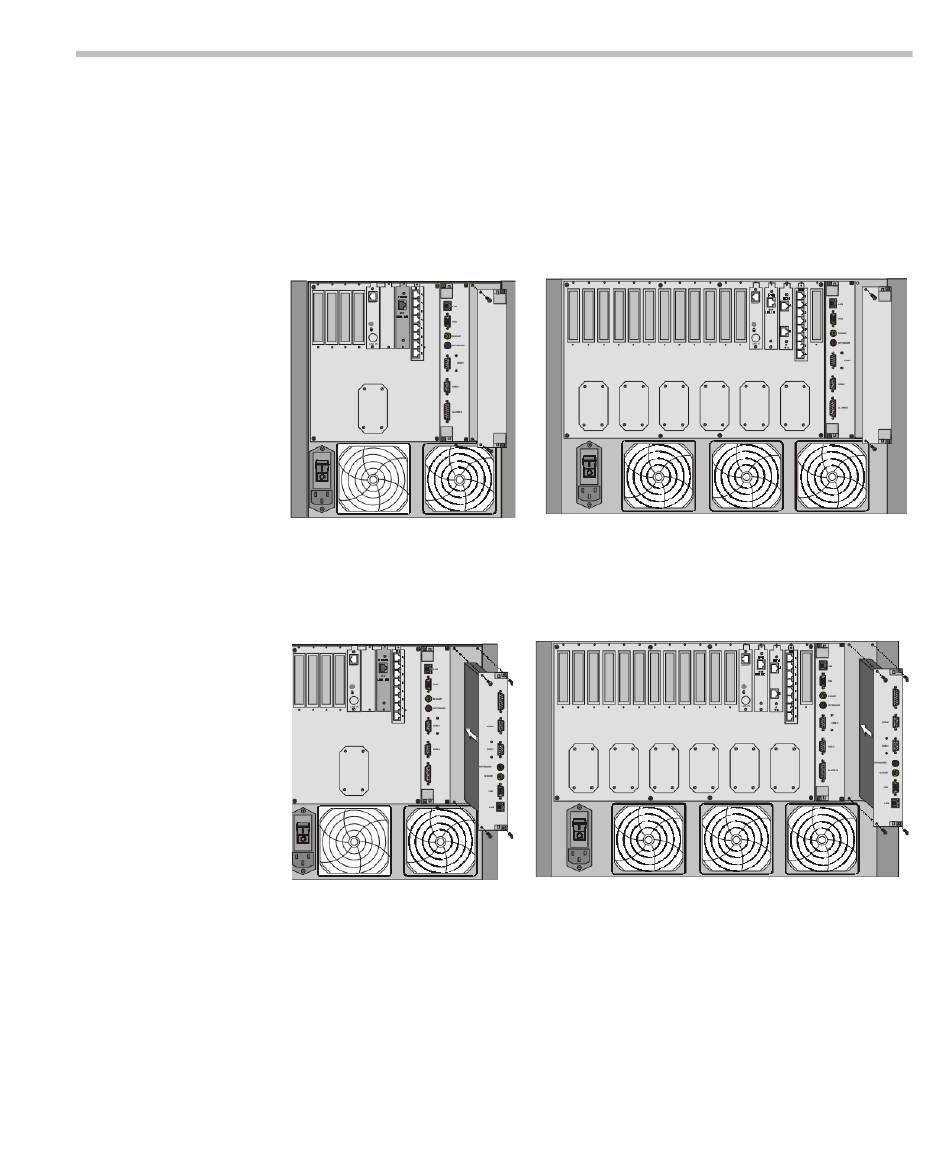

MGC+ 50/100 rear panel detachment
Remove the I/O card for the ReadiConvene IAM blade from its
package and insert it in its slot as shown in the following illustration.
MGC+ ReadiConvene IAM rear I/O Insertion
Push the I/O card firmly into the MGC+ backplane. Make sure its is
properly seated in its slot.
Tighten the four screws that secure the I/O card to the MGC+ chassis.
Attach the required cables or connections to the I/O card for the
ReadiConvene IAM blade.
