OPTIONAL OVERHEAD SUSPENSION
To work effectively, your VT tool must be properly installed. This installation includes, in some
cases, proper suspension of the tool over the container to be strapped, and the proper placement
of a strapping dispenser to provide a continuous easy supply of strapping for the application. The
VT can be suspended in various operating positions by using the proper tool hanger and
hardware.

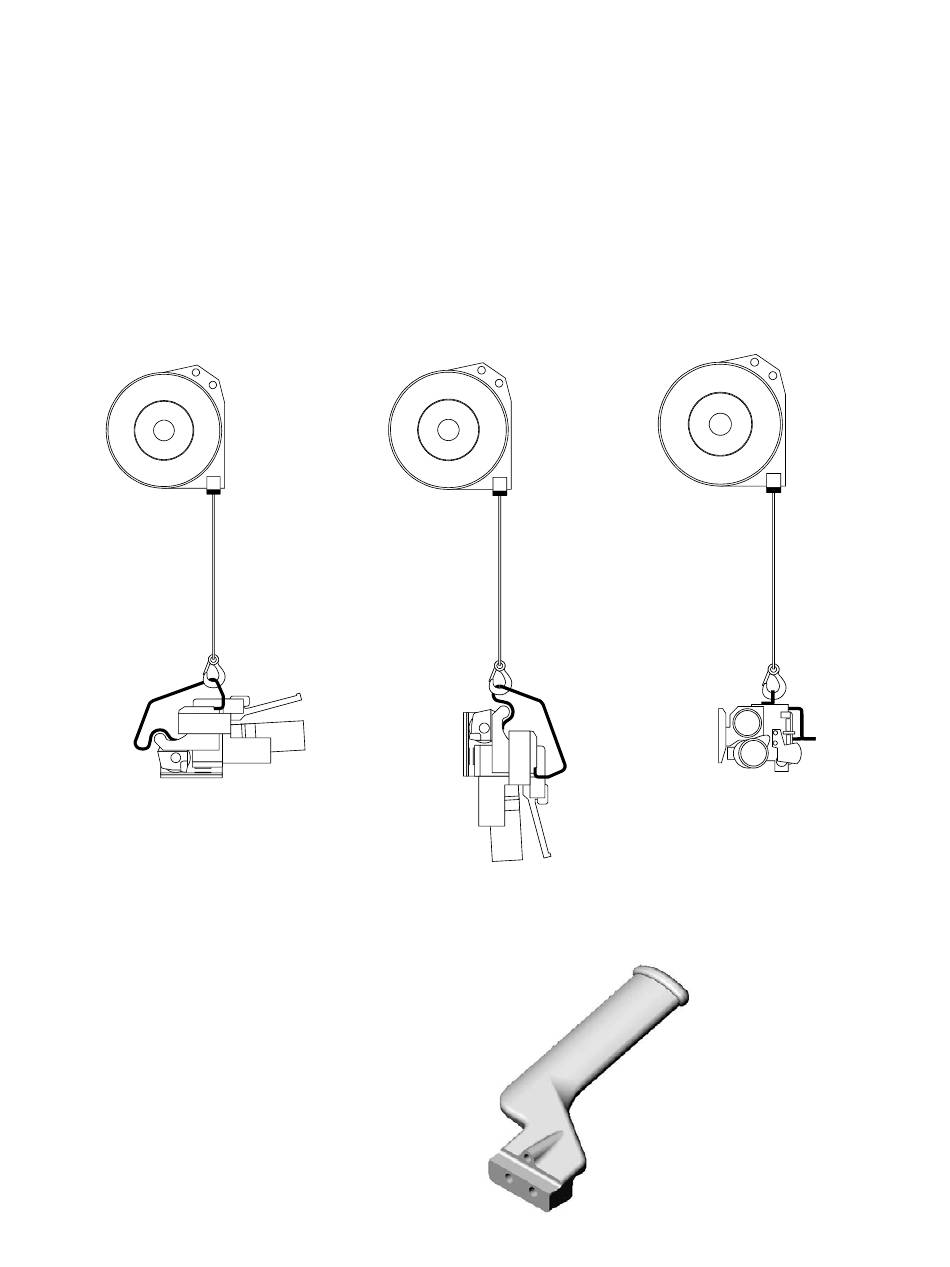

Review the illustrations below for the appropriate configuration for the tool application.
Applications are recommended to use an Overhead Tool Balancer as shown (Signode Part No.
423283).
HORIZONTAL SEALING
(USING OPTIONAL
SIDE HANGER
P/N 425516)
VERTICAL SEALING
TOP SEALING
OPTIONAL STATIONARY HANDLE, Part No. 423921
For customer that suspend their tools this
longer handle aids the tool operation. This
handle can be used with either the VT-10 or the
VT-13 tools. Mounts using the existing
hardware.
Review page 22 of this manual for additional
mounting details.
