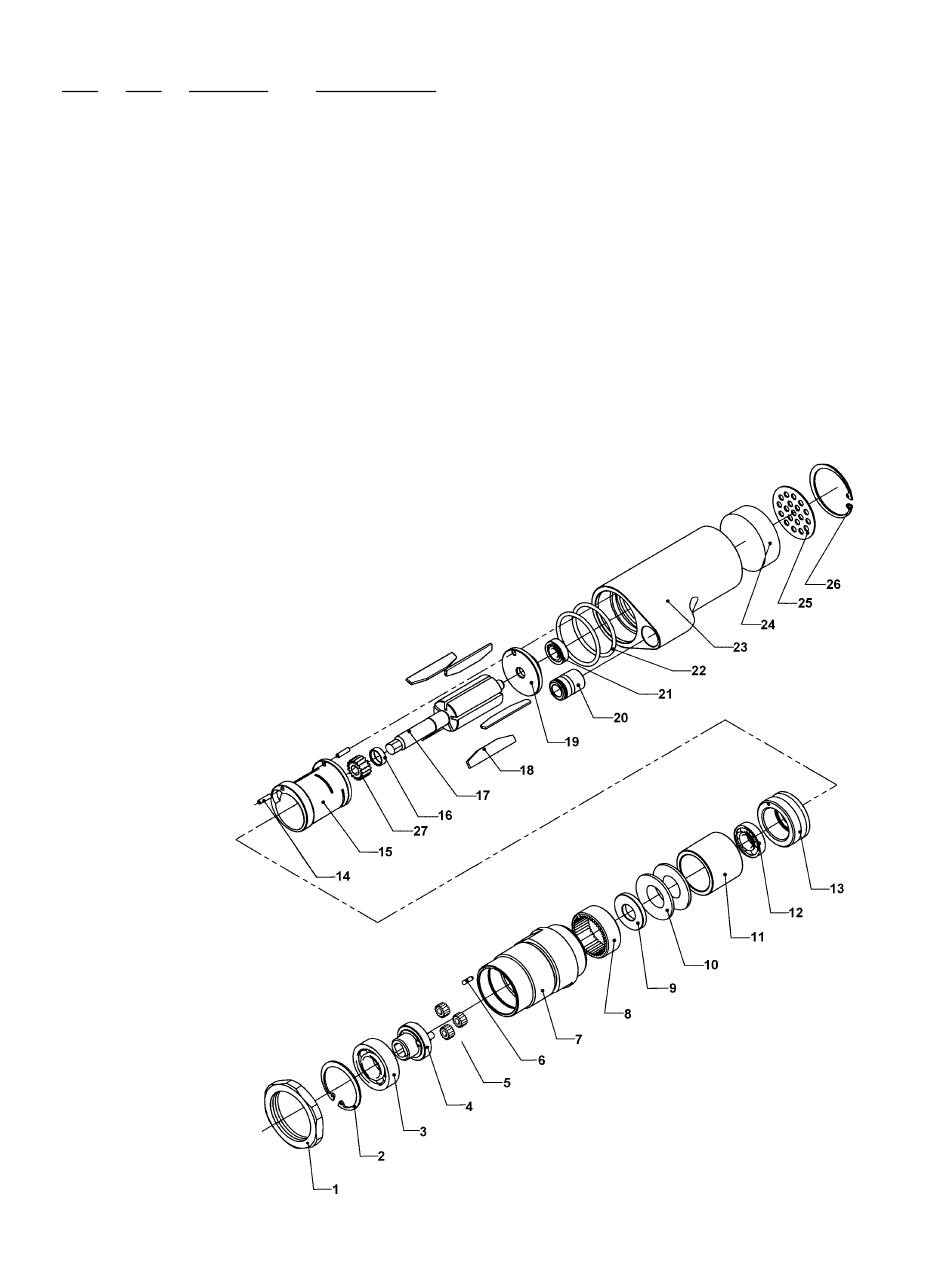

PARTS LIST, TENSION MOTOR, 425470 (VT-10)
KEY
QTY
PART NO
1
1
424166
2
1
080315
3
1
023547
4
1
425228
5
3
425229
6
1
090065
7
1
424153
8
1
422870
9
1
423151
10
2
014541
11
1
425455
12
1
023481
13
1
424155
14
2
424164
15
1
425457
16
1
024602
17
1
425459
18
5
024612
19
1
424154
20
1
423582
21
1
424161
22
2
424172
23
1
425313
24
1
424167
25
1
424165
26
1
424162
27
1
425231
DESCRIPTION
LOCKING NUT
RETAINING RING
BALL BEARING
IDLER CARRIER
IDLER
LOCKING PIN
MOTOR GEAR HOUSING
RING GEAR
WASHER
BELLEVILE SPRING WASHER
SPACER
BALL BEARING
FRONT END PLATE
SPRING PIN
CYLINDER
SPACER
ROTOR
VANE
BACK END PLATE
CAMMOZZI 6700-8 CARTRIDGE
BALL BEARING (SEAL)
O-RING
MOTOR HOUSING
MUFFLER INSERT
MUFFLER PLATE
RETAINING RING
PINION GEAR
25
