OPERATING INSTRUCTIONS, Continued

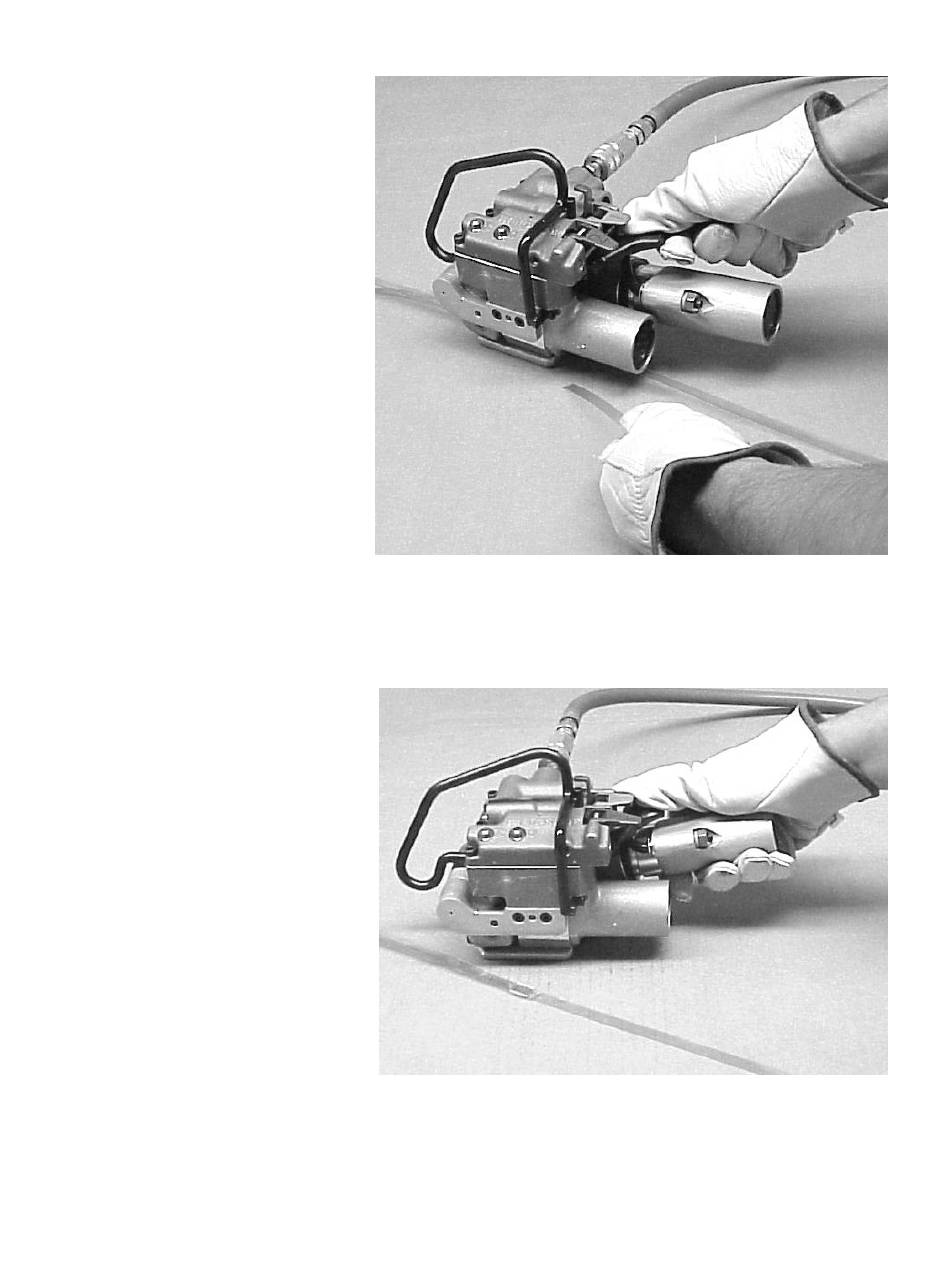

5. The internal weld timer is
energized. The main piston
brings the welding pads
together and the strap is
welded.
The supply end of the strap is
then cut off. Pull the cut strap
away from the tool during
welding. The tool will continue
through the weld cycle and stop
automatically.
6. When the weld cycle has completed the weld mechanism slowly returns to the neutral
position. This allows the newly welded strap joint to cool down properly. The tool can be
easily removed once the weld mechanism has completely returned to the neutral position.
7. Swing the tool out from the
completed strap joint. Inspect
the joint to make sure the straps
have been properly welded.
