Signode VT-10 Operation, Parts And Safety Manual page 18

TOOL ADJUSTMENTS, Continued
STRAP CUTTER
The VT strap cutter has two serrated cutting
edges. After the first edge has become dull or
strap cut-off becomes difficult the blade can be
remounted to use the second cutting edge.
Once both edges have become worn the blade
should be replaced. Use the instructions below
to remount, install and adjust a new cutter
blade.

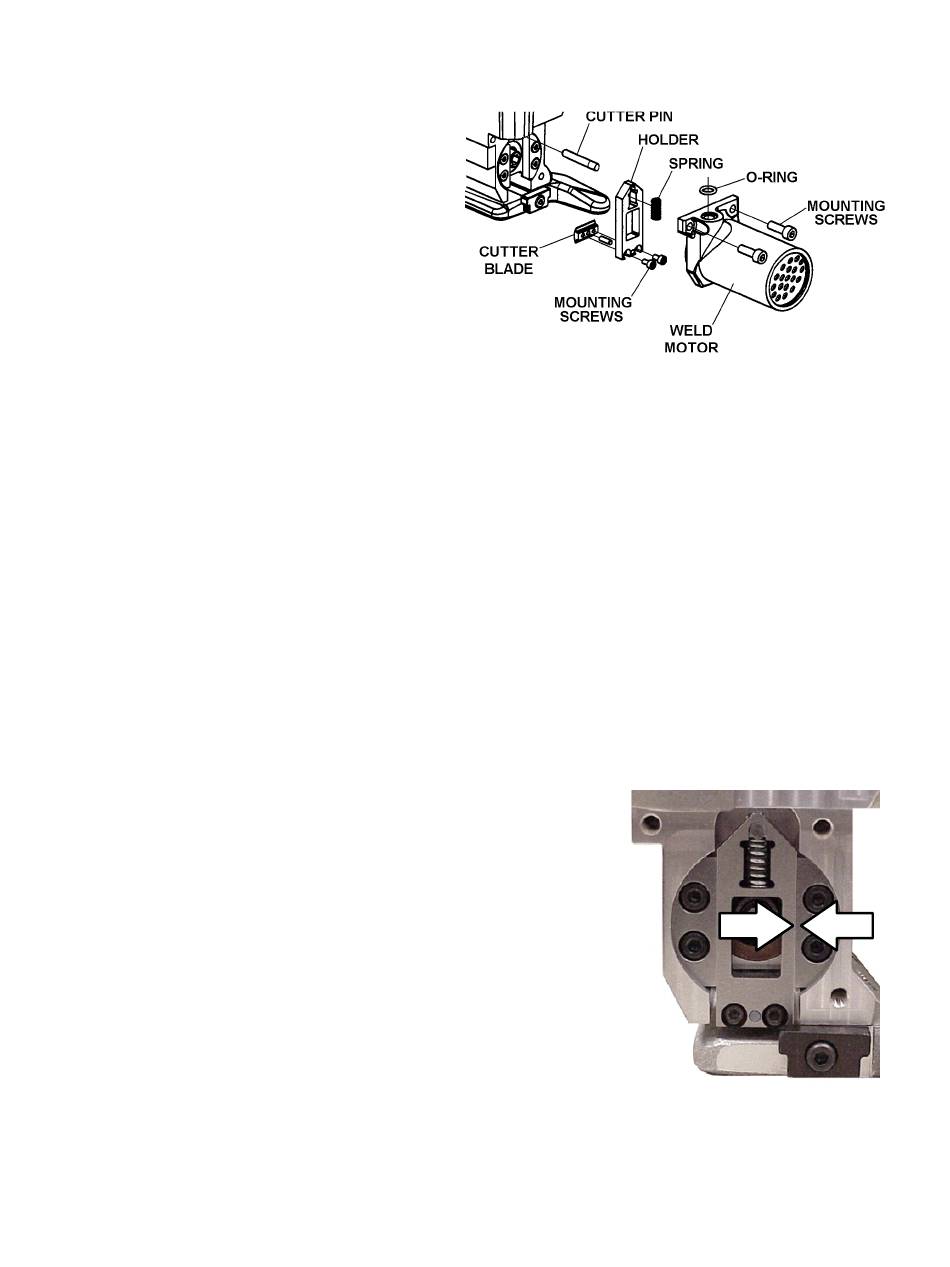

1. Remove the three mounting screws which
secure the weld motor to the tool body.
Remove the weld motor from the tool by
turning the motor counter-clockwise to
release the O-ring which seats on the top
of the motor.
NOTE: The small spring contained in the holder does not need to be removed from the holder
to change the cutter blade.
2. The cutter blade group of parts can now be removed from the tool. Continue to also remove
the cutter pin from the tool.
3. Remove the two smaller screws which mount the cutter blade to the holder. Rotate the cutter
blade to the new cutting edge and reinstall the mounting screws.
NOTE: If both cutting edges are worn replace the cutter blade at this point.
4. Reinstall the cutter group of parts back into the tool. Before installing the cutter pin inspect
the cutter holder movement within the tool.
A. The holder should move freely up and down in the tool body. If the holder does not move
freely inspect the tool for debris or damage.
NOTE: If the holder has been replaced it may also be necessary to adjust the clearance of
the two cutter guides.
B. The holder should not be able to move from side to side.
Excessive side to side clearance will result in poor strap
cut-off. If the holder does move side to side, loosen the
four mounting screws which secure the side guides. Move
the guides as needed to obtain a 0.025mm to 0.127mm
(0.001"-0.005") clearance as noted by arrows.
C. Tighten the mounting screws.
5. Once the cutter holder has been inspected and adjusted,
continue to reinstall the remaining parts in the order that they
were removed.
6. Run a few test cycles on the tool to confirm that the strap cut-
off performs properly.
18
