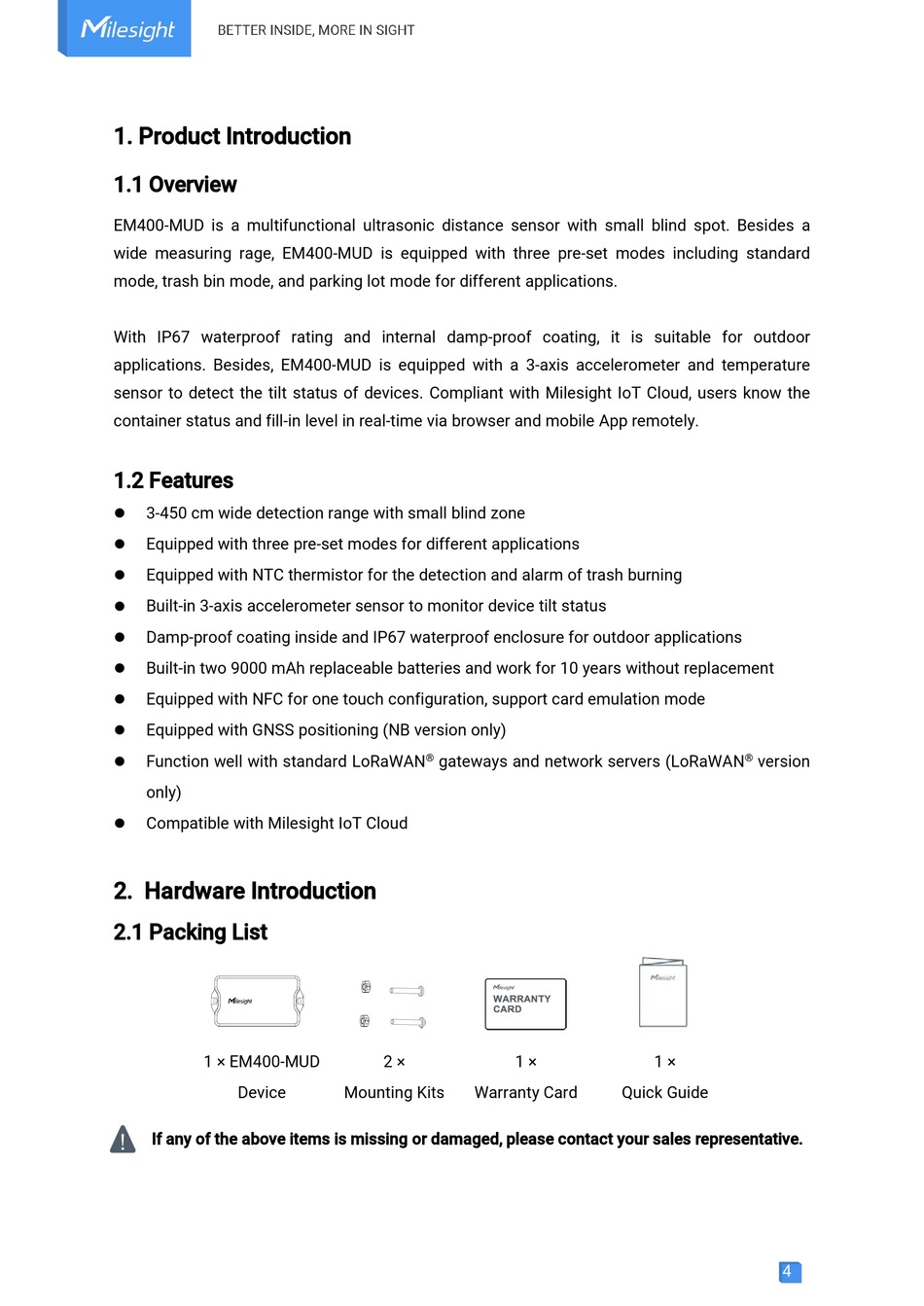

1. Product Introduction

1.1 Overview

EM400-MUD is a multifunctional ultrasonic distance sensor with small blind spot. Besides a
wide measuring rage, EM400-MUD is equipped with three pre-set modes including standard
mode, trash bin mode, and parking lot mode for different applications.
With IP67 waterproof rating and internal damp-proof coating, it is suitable for outdoor
applications. Besides, EM400-MUD is equipped with a 3-axis accelerometer and temperature
sensor to detect the tilt status of devices. Compliant with Milesight IoT Cloud, users know the
container status and fill-in level in real-time via browser and mobile App remotely.

1.2 Features

3-450 cm wide detection range with small blind zone

Equipped with three pre-set modes for different applications

Equipped with NTC thermistor for the detection and alarm of trash burning

Built-in 3-axis accelerometer sensor to monitor device tilt status

Damp-proof coating inside and IP67 waterproof enclosure for outdoor applications

Built-in two 9000 mAh replaceable batteries and work for 10 years without replacement

Equipped with NFC for one touch configuration, support card emulation mode

Equipped with GNSS positioning (NB version only)

Function well with standard LoRaWAN

only)
Compatible with Milesight IoT Cloud


2. Hardware Introduction

2.1 Packing List

1 × EM400-MUD
Device
If any of the above items is missing or damaged, please contact your sales representative.
® gateways and network servers (LoRaWAN
2 × 1 ×
Mounting Kits Warranty Card
® version
1 ×
Quick Guide
4
