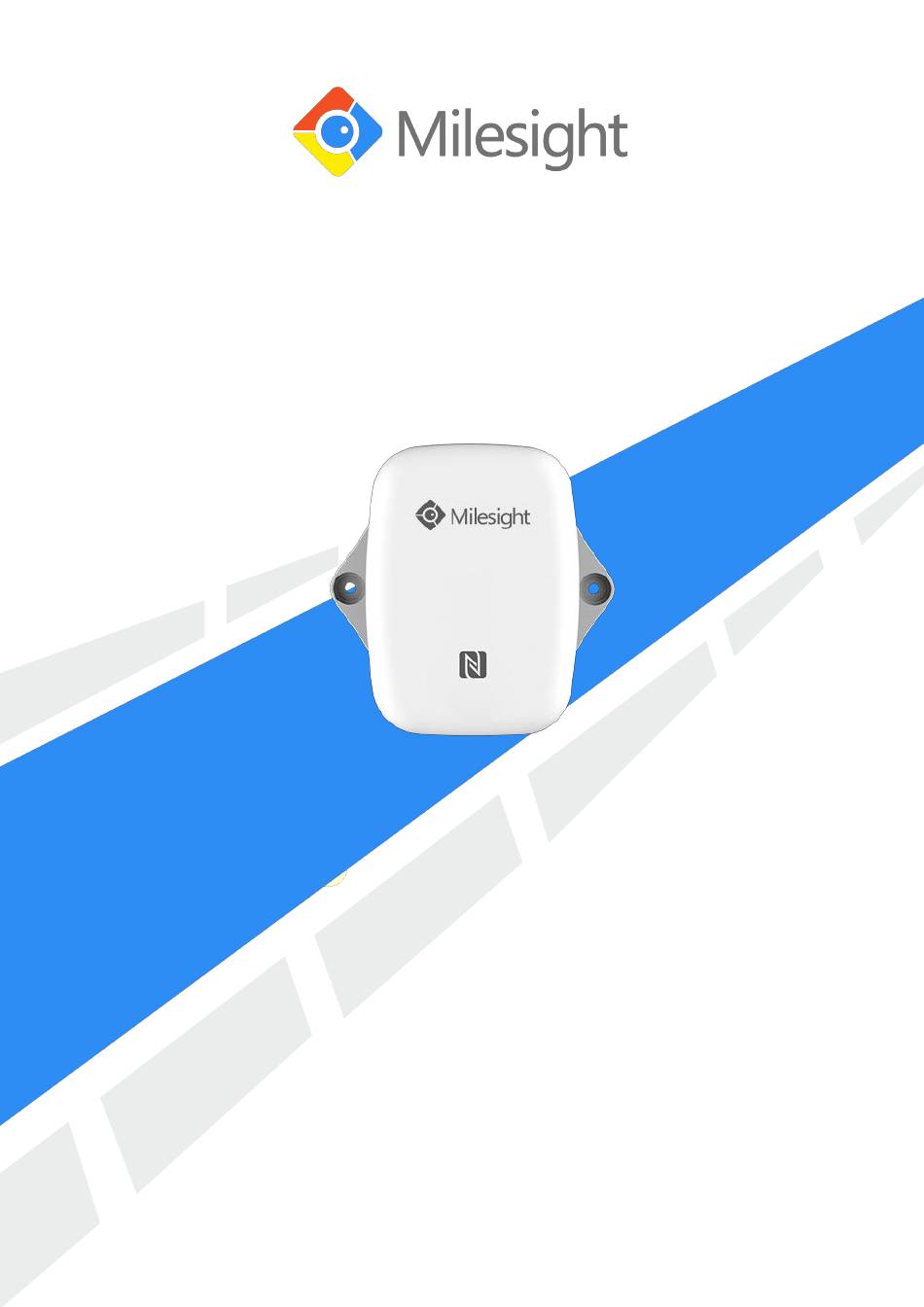

- Page 1 EM300 Series User Guide Xiamen Milesight IoT Co., Ltd.
- Page 2 The device must not be remodeled in any way. The device is not intended to be used as a reference sensor, and Milesight will not should responsibility for any damage which may result from inaccurate readings.
- Page 3 EM300 Series User Guide For assistance, please contact Milesight technical support: Email: iot.support@milesight.com Tel: 86-592-5085280 Fax: 86-592-5023065 Revision History Date Doc Version Description October 14, 2020 V 1.0 Initial version October 21, 2020 V 1.1 Model name change and pictures replace November 19, 2020 V 2.0...
-
Page 4: Table Of Contents
3.3.1 LoRa Channel Settings......................13 3.3.2 Alarm Settings........................14 4. Installation..............................15 5. Milesight IoT Cloud Management......................15 5.1 Add a Milesight Gateway....................... 16 5.2 Add EM300 to Milesight IoT Cloud....................17 6. Sensor Payload............................18 Appendix................................19 Default LoRaWAN Parameters......................19 Default Uplink Channels........................19... -
Page 5: Product Introduction
® enables encrypted radio transmissions over long distance while consuming very little power. The user can obtain sensor data and view the trend of data change through Milesight IoT Cloud or through the user's own Network Server. 1.2 Features Up to 11km communication range ... -
Page 6: Product Overview

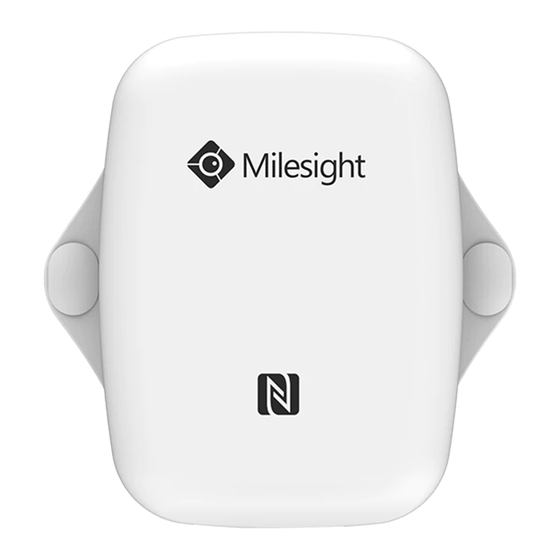

EM300 Series User Guide 2.2 Product Overview Front View: ①NFC Area Bottom View: ② Vent ③ Waterproof Connectors (For water leakage and magnet switch sensor) Internal View: ④ LED ⑤ Power Button ⑥ USB Type-C ⑦ Expandable Battery Slot ⑧ Battery 2.3 Dimensions(mm) -
Page 7: Power Button
EM300 Series User Guide 2.4 Power Button Note: The LED indicator and power button are inside the device. EM300 can also be turned on/off and reset via Mobile APP or Toolbox. Function Action LED Indication Press and hold the button for more than Turn On Off →... - Page 8 EM300 Series User Guide 3. Change the on/off status or parameters, then attach the smartphone with NFC area to the device until the APP shows a successful prompt. 4. Go to“Device > Status” to tap“Read”and attach the smartphone with NFC area to the device to read real-time data of sensor.
-
Page 9: Template Configuration
EM300 Series User Guide 3.1.2 Template Configuration Template settings only work for easy and quick device configuration in bulk. Note: Template function is allowed only for sensors with the same model and LoRa frequency band. 1. Go to “Template” page on the APP and save current settings as a template. -
Page 10: Configuration Via Pc
EM300 Series User Guide 3.2 Configuration via PC Preparation: Dedicated NFC Reader or Type-C USB cable PC (Windows 10 is recommended) Toolbox: https://www.milesight-iot.com/software-download/ 3.2.1 Log in the Toolbox Make sure “Toolbox” is downloaded on your computer. Select one of the following methods to log in Toolbox. -
Page 11: Basic Configuration
EM300 Series User Guide 2. Select type as “NFC” and serial port as NFC reader port on Toolbox. 3.2.2 Basic Configuration 1. Click “Read” to read current data of the sensor. 2. When you perform one of the following operations, enter the password and wait a few seconds until toolbox shows a successful prompt. -
Page 12: Template Settings
EM300 Series User Guide Click“Write”to change settings Upgrade 3.2.3 Template Settings Note: Template function is allowed only for sensors with the same model and LoRa frequency band. 1. Go to “Maintenance -> Template and Reset” page in Toolbox. -
Page 13: Upgrade
EM300 Series User Guide 3.2.4 Upgrade 1. Download firmware on your computer. 2. Go to “Maintenance -> Upgrade”page in Toolbox. 3. Click“Browse”and select the firmware from computer. 4. Click“Upgrade”to upgrade the device. Note: If NFC connection is selected, please keep the two devices close and don’t move them in order to get the best connectivity as possible when upgrading. -
Page 14: Alarm Settings
EM300 Series User Guide 1-40, 60: Enabling Channel 1 to Channel 40 and Channel 60 All: Enabling all channels Null: Indicates that all channels are disabled 3.3.2 Alarm Settings When water leakage sensor or magnet switch sensor is triggered, it will send alarm message once by default. -
Page 15: Installation
5. Milesight IoT Cloud Management EM300 sensors can be managed by Milesight IoT Cloud platform. Milesight IoT cloud is a comprehensive platform that provides multiple services including device remote management and data visualization with the easiest operation procedures. -
Page 16: Add A Milesight Gateway
1. Enable “Milesight” type network server and “Milesight IoT Cloud” mode in gateway web GUI. Note: Ensure gateway has accessed the Internet. 2. Go to “My Devices” page and click “+New Devices” to add gateway to Milesight IoT Cloud via SN. Gateway will be added under “Gateways” menu. -
Page 17: Add Em300 To Milesight Iot Cloud
1. Go to “My Devices” page and click “+New Devices”. Fill in the SN of EM300 and select associated gateway. 2. After EM300 is connected to Milesight IoT Cloud, you could check the device information and data and create dashboard for it. -
Page 18: Sensor Payload
EM300 Series User Guide 6. Sensor Payload All data are based on following format: Channel1 Type1 Data1 Channel2 Type2 Data2 Channel 3 1 Byte 1 Byte N Bytes 1 Byte 1 Byte M Bytes 1 Byte Uplink Packet(HEX) Channel Type... -
Page 19: Appendix
EM300 Series User Guide Appendix Default LoRaWAN Parameters 24E124 + 2 to 11 digits of SN DevEUI e.g. SN = 61 26 A1 01 84 96 00 41 Then Device EUI = 24E124126A101849 AppEUI 24E124C0002A0001 Appport 0x55 NetID 0x010203 The 5...
