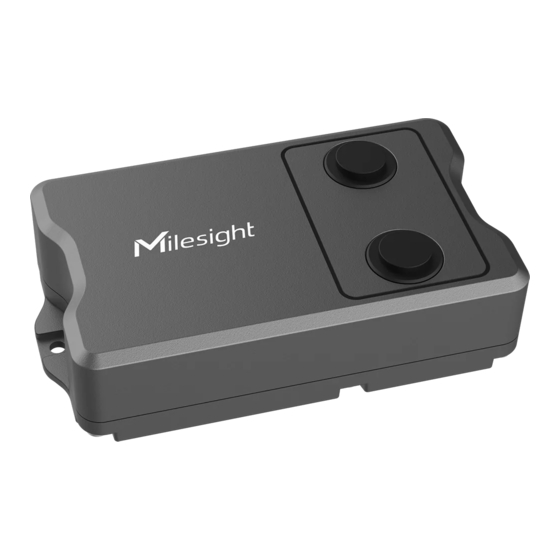

Multifunctional ultrasonic distance sensor
Hide thumbs Also See for EM400-MUD:

Advertisement

Quick Links

Multifunctional Ultrasonic
Distance Sensor
EM400-MUD
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EM400-MUD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Milesight EM400-MUD

  • Page 1 Multifunctional Ultrasonic Distance Sensor EM400-MUD User Guide...
  • Page 2 In order to protect the security of the device, please change the device password when first configuration. Default password is 123456.  The device is not intended to be used as a reference sensor, and Milesight won’t should responsibility for any damage which may result from inaccurate readings. ...
  • Page 3: Table Of Contents

    Contents 1. Product Introduction ......................... 4 1.1 Overview ...........................4 1.2 Features ........................... 4 2. Hardware Introduction ........................4 2.1 Packing List ..........................4 2.2 Hardware Overview ......................... 5 2.3 Dimensions (mm) ........................5 2.4 Power Button ........................... 5 3. SIM Installation (NB Version Only) ....................5 4.
  • Page 4: Product Introduction

    Besides, EM400-MUD is equipped with a 3-axis accelerometer and temperature sensor to detect the tilt status of devices. Compliant with Milesight IoT Cloud, users know the container status and fill-in level in real-time via browser and mobile App remotely.
  • Page 5: Hardware Overview

    2.2 Hardware Overview 2.3 Dimensions (mm) 2.4 Power Button EM400-MUD can be switched on/off via NFC. Besides, users can use power button to switch on/off and reset the device manually. Function Action LED Indication Switch On Press and hold the button for more than 3 seconds.
  • Page 6: Operation Guide

    4.1 NFC Configuration EM400-MUD can be configured via NFC. 1. Download and install “Milesight ToolBox” App from Google Play or App Store. 2. Enable NFC on the smartphone and open “Milesight ToolBox” App. 3. Attach the smartphone with NFC area to the device to read the basic information.
  • Page 7: Basic Settings

    2) If the smartphone fails to read/write configurations via NFC, keep the phone away and back to try again. 3) EM400-MUD can also be configured by dedicated NFC reader provided by Milesight IoT. 4.2 Basic Settings Go to Device > Setting > General Settings of ToolBox App to change the reporting interval, etc.
  • Page 8 occupancy status change, it will report immediately. NB Version: Standard Mode/Bin Mode: 30 minutes as default, range: 1~1440 minutes. Collecting interval of measuring distance on Parking Lot Mode. Default: Collecting Interval 20s; Range: 1~600s Set the installation height between device and ground when in Parking Lot Mode.
  • Page 9: Communication Settings

    4.3 Communication Settings 4.3.1 LoRaWAN Settings (LoRaWAN ® Version Only) Go to Device > Setting > LoRaWAN Settings of ToolBox App to configure join type, App EUI, App Key and other information. You can also keep all settings by default.
  • Page 10 Parameters Description Device EUI Unique ID of the device which can also be found on the label. App EUI Default App EUI is 24E124C0002A0001. Application Port The port used for sending and receiving data, default port is 85. Join Type OTAA and ABP mode are available.
  • Page 11 If frequency is one of CN470/AU915/US915, enter the index of the channel that you want to enable and make them separated by commas. Examples: 1, 40: Enabling Channel 1and Channel 40 1-40: Enabling Channel 1 to Channel 40 1-40, 60: Enabling Channel 1 to Channel 40 and Channel 60 All: Enabling all channels Null: Indicates that all channels are disabled Spread Factor...
  • Page 12: Application Mode Settings (Nb Version Only)

    1) Please contact sales for device EUI list if there are many units. 2) Please contact sales if you need random App keys before purchase. 3) Select OTAA mode if you use Milesight IoT cloud to manage devices. 4) Only OTAA mode supports rejoin mode.
  • Page 13: Advanced Settings

    Import the client key. Client Key 4.4 Advanced Settings 4.4.1 Calibration Settings Go to Device > Setting > Calibration Settings to enable calibration. EM400-MUD supports two calibration types. Numerical Calibration: users can define calibration value to correct every distance. ...
  • Page 14: Threshold Settings

    Go to Device > Setting > Threshold Settings to enable the threshold settings and input the distance threshold. EM400-MUD will detect whether the distance reaches the threshold according to collecting interval. If threshold is triggered, it uploads the current data once instantly.
  • Page 15: Backup

    2) Only Android version ToolBox supports the upgrade feature. 4.5.2 Backup EM400-MUD supports configuration backup for easy and quick device configuration in bulk. Backup is allowed only for devices with the same model and frequency band. 1. Go to Template page on the App and save current settings as a template. You can also edit the template file.
  • Page 16: Reset To Factory Default

    Note: Slide the template item left to edit or delete the template. Click the template to edit the configurations. 4.5.3 Reset to Factory Default Please select one of following methods to reset device: Via Hardware: Hold on power button (internal) for more than 10s. Via ToolBox App: Go to Device >...
  • Page 17: Installation

    5. Installation 1. Drill two holes on the container cover according to the location of device mounting holes. 2. Put the device under container cover and align the holes in order to perfectly screw the bolts into the holes from the other side of the cover. Besides, the device can also be fixed by two M4 mounting screws and wall plugs.
  • Page 18: Communication Protocol

    If the device needs to be installed on the side wall, please ensure the ultrasonic horn is away from the side wall. When EM400-MUD is in waste bin mode, place the device in the center of waste bin mode ...
  • Page 19: Uplink Data

    6.1.1 Uplink Data Channel Type Description 01(Protocol Version) 01=>V1 09 (Hardware Version) 01 40 => V1.4 0a (Software Version) 01 14 => V1.14 0b (Power On) Device is on 0f (Device Type) 00: Class A, 01: Class B, 02: Class C 16 (Device SN) 16 digits 75(Battery Level)
  • Page 20: Downlink Commands

    Type Value Temperature: 22 01 =>01 22 = 290 * 0.1 = 29°C (Temperature) Alarm Status: 01= Alarm 6.1.2 Downlink Commands EM400-MUD supports downlink commands to configure the device. Application port is 85 by default. Channel Type Description 10 (Reboot)
  • Page 21 Bit2~Bit0: 000-disable 001-below 010-above 011-within below or above Bit5~Bit3: 001-Standard Mode 010-Bin Mode Bit6=0 Bit7: 0 - disable threshold dismiss report 1 - enable threshold dismiss report 70 (Set Height Threshold in 2 Bytes, unit: mm Parking Lot Mode) 77 (Set Installation Height) 2 Bytes, unit: mm Example: 1.
  • Page 22: Nb Version

    5. When the distance is below 20cm or above 80cm, the sensor will send threshold alarm. ff3e 8c c800 2003 0000 0000 Channel Type Value CTRL: cc=10 001 100 100=below or above 001=standard mode 10=enable threshold dismiss 06 (Set Threshold Alarm) report Min: c8 00 =>...
  • Page 23 Packet Frame Protocol Software Hardware Start FLAG Length Counter Version Version Version 0001 2 Bytes 0000 4 Bytes 4 Bytes IMEI IMSI ICCID Signal Data Length Data1 1 Byte 2 Bytes N Bytes Bytes Bytes Bytes Bytes Example: 02 0001 005f 00 0000 01 30313031 30313030 36373438443131323930313230303033 383638353038303631393234353133 343630303833383833383036363836 3839383630346238313032326330343536363836 10 000E...
  • Page 24 Byte 1-4: latitude*1000000 Byte 5-8: longitude*1000000 Byte 9: motion status, 88 (Location) 20=unknown, 21=start moving, 22=in motion, 23=stop moving Note: If the device fails to get GNSS data, the latitude or longitude will show FFFFFFFF. Temperature (2 Bytes) + Alarm Status(1 Byte) Temperature: unit -- °C 67(Temperature)
  • Page 25: Downlink Commands

    (Temperatu : FFFFFFFF = 29 °C 20=unknown 01= Alarm 6.2.3 Downlink Commands EM400-MUD supports downlink commands to configure the device. Note that it can only receive downlink commands within the 10s after sending uplink packets. Channel Type Description 10 (Reboot)
  • Page 26 2 Bytes, 9e (Cumulative Numbers) Byte 1: 00 = Disable; 01 = Enable Byte 2: Cumulative numbers 9f (ACK of Downlink Command) 00 = Disable; 01 = Enable 9 Bytes, CTRL(1B)+Min(2B)+Max(2B)+00000000 (4 CTRL: Bit2~Bit0: 000-disable 001-below 010-above 06 (Set Threshold Alarm) 011-within 100-below or above Bit5~Bit3:...
  • Page 27 4. When the distance is below 20cm or above 80cm, the sensor will send threshold alarm. ff3e 8c c800 2003 0000 0000 Channel Type Value CTRL: cc=10 001 100 100=below or above 001=standard mode 10=enable threshold dismiss 06 (Set Threshold Alarm) report Min: c8 00 =>...
