  • Page 1 Environment Monitoring Sensor Featuring LoRaWAN ® EM300 Series User Guide...
  • Page 2 In order to protect the security of the device, please change device password when first  configuration. The default password is 123456. The device is not intended to be used as a reference sensor, and Milesight will not should  responsibility for any damage which may result from inaccurate readings.
  • Page 3 Delete USB Type-C description Dec. 7, 2021 V 2.3 Add alarm setting, change SN to 16 digits 1. Add EM300-DI model 2. Add Milesight D2D feature Nov. 24, 2022 V 2.4 3. Add data storage feature 4. Add time synchronization and data retransmission...

  • Page 4: Table Of Contents

    3.5.1 Calibration Settings ....................13 3.5.2 Threshold Settings ..................... 13 3.5.3 Alarm Settings ......................13 3.5.4 Data Retransmission ....................16 3.5.5 Milesight D2D Settings ....................17 3.6 Maintenance .......................... 18 3.6.1 Upgrade ........................18 3.6.2 Backup .........................19 3.6.3 Reset to Factory Default .....................20 4.

  • Page 5: Product Introduction

    ® ® enables encrypted radio transmissions over long distance while consuming very little power. The user can obtain sensor data and view the trend of data change through Milesight IoT Cloud or through the user's own Network Server. 1.2 Features Up to 11 km communication range ...

  • Page 6: Hardware Overview

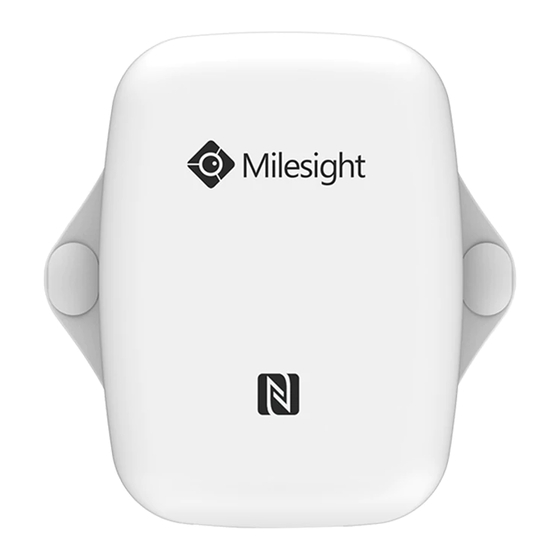

    2.2 Hardware Overview Front View: ① NFC Area Bottom View: ② Vent ③ Waterproof Connectors (For EM300-DI/MCS/SLD/ZLD) 2.3 GPIO Wiring (EM300-DI) 2.3 Dimensions(mm)

  • Page 7: Power Button

    Light Off: Device is off. 3. Operation Guide 3.1 NFC Configuration EM300 series can be monitored and configured via NFC. Please refer the following steps to complete configuration. 1. Download and install “Milesight ToolBox” App from Google Play or Apple Store.

  • Page 8: Lorawan Settings

    3) EM300 series can also be configured by dedicated NFC reader provided by Milesight IoT or you can configure it via TTL interface inside the device. 3.2 LoRaWAN Settings LoRaWAN settings is used for configuring the transmission parameters in LoRaWAN ®...
  • Page 9 Parameters Description Device EUI Unique ID of the device which can also be found on the label. App EUI Default App EUI is 24E124C0002A0001. Application Port The port used for sending and receiving data, default port is 85. Join Type OTAA and ABP mode are available.
  • Page 10 1) Please contact sales for device EUI list if there are many units. 2) Please contact sales if you need random App keys before purchase. 3) Select OTAA mode if you use Milesight IoT Cloud to manage devices. 4) Only OTAA mode supports rejoin mode.

  • Page 11: Time Synchronization

    All: Enabling all channels Null: Indicates that all channels are disabled 3.3 Time synchronization ToolBox App Sync: Go to Device -> Status of ToolBox App to click Sync to sync the time. Network Server Sync: Go to Device > Settings > LoRaWAN Settings of ToolBox App to change device LoRaWAN ®...

  • Page 12: Basic Settings & Interface Settings

    3.4 Basic Settings & Interface Settings Go to Device > Setting > General Settings to change the reporting interval, etc. Parameters Description Reporting interval of transmitting current sensor values to network Reporting Interval server. Default: 10 min Change the temperature unit displayed on the ToolBox. Note: Temperature Unit 1) The temperature unit in the reporting package is fixed as °C.

  • Page 13: Advanced Settings

    Go to Device > Setting > Threshold Settings to enable the threshold settings and input the threshold. EM300 series will upload the current data once instantly when the temperature threshold is triggered. Note that when you change the temperature unit, please re-configured the threshold.
  • Page 14 3.5.4 Data Storage EM300 series sensor supports storing more than 2000 data records locally and exports data via ToolBox App. The device will record the data according to reporting interval and even joining network. 1. Go to Device > Setting > General Settings to enable data storage feature.
  • Page 15 3. Click Data Cleaning to clear all stored data inside the device.

  • Page 16: Data Retransmission

    3.5.4 Data Retransmission EM300 series sensor supports data retransmission to ensure network server can get all data even if network is down for some times. There are two ways to get the lost data: Network server sends downlink commands to to enquire the historical data for specifying ...

  • Page 17: Milesight D2D Settings

    2. Go to Device > Setting > D2D Settings to enable Milesight D2D feature. 3. Define an unique D2D key which is the same as Milesight D2D agent devices. (Default D2D key: 5572404C696E6B4C6F52613230313823) 4. Enable one of status mode and configure 2-byte hexadecimal Milesight D2D command. When the status is triggered, EM300 series sensor will send this control command to corresponding Milesight D2D agent devices.

  • Page 18: Maintenance

    1) If you enable LoRa Uplink, a LoRaWAN ® uplink packet that contains the sensor status or temperature threshold alarm will be sent to gateway after the Milesight D2D control command packet. Otherwise, sensor status or threshold alarm will not send to LoRaWAN gateway.

  • Page 19: Backup

    3.6.2 Backup EM300 devices support configuration backup for easy and quick device configuration in bulk. Backup is allowed only for devices with the same model and LoRaWAN ® frequency band. 1. Go to Template page on the App and save current settings as a template. You can also edit the template file.

  • Page 20: Reset To Factory Default

    3.6.3 Reset to Factory Default Please select one of following methods to reset device: Via Hardware: Hold on power button (internal) for more than 10s until LED blinks. Via ToolBox App: Go to Device > Maintenance to click Reset, then attach smart phone with NFC area to device to complete reset.

  • Page 21: Device Payload

    2. Drill the holes according to the marks and screw the wall plugs into the wall. 3. Mount the EM300 to the wall via mounting screws. 4. Cover the mounting screws with screw caps. 5. For leak detection senor, install the probe/cable to the place where liquid may leak; for magnet switch sensor, install the magnet beside the door/window;...

  • Page 22: Basic Information

    Channel Type Value (Device Type) (Class A) 5.2 Sensor Data EM300 series sensors report sensor data according to reporting interval (10min by default). Battery level is reported every 6 hours. Channel Type Description 75(Battery Level) UINT8, Unit: % 67 (Temperature) INT16, Unit: °C...

  • Page 23: Downlink Commands

    06 00 00 00=> Hum=94* (Humidity) (Counter) 00 00 00 00=6 0.5=47% 5.3 Downlink Commands EM300 series sensors support downlink commands to configure the device. The application port is 85 by default. Channel Type Description 03 (Set Reporting Interval) 2 Bytes, unit: s...
  • Page 24 011 - within 100 - below or above Bit3~Bit7: 11001 10 (Reboot) ff(Reserved) 4 Bytes, Number(1B)+Function(1B)+D2D Command(2B) Number: 01 -Temperature threshold trigger 02 -Temperature threshold doesn’t 79(Set D2D settings) trigger 03 - Status trigger 04 -Status doesn’t trigger Function: 00 -Only use LoRaWAN 01 -Only use D2D 03 -Use D2D&LoRaWAN Uplink 0100-Clean the count...

  • Page 25: Historical Data Enquiry

    ) D2D Command: 1001=>0110 5.4 Historical Data Enquiry EM300 series sensor supports sending downlink commands to enquire historical data for specified time point or time range. Before that, ensure the device time is correct and data storage feature was enabled to store the data.
  • Page 26 EM300-MCS Temperature + Humidity + Status EM300-SLD/EM300-ZLD Temperature + Humidity + Leakage status Temperature + Humidity + Interface Type + EM300-DI Counter + Digital Note: 1. The device only uploads no more than 300 data records per range enquiry. 2. When enquiring the data in time point, it will upload the data which is closest to the search point within the reporting interval range.
