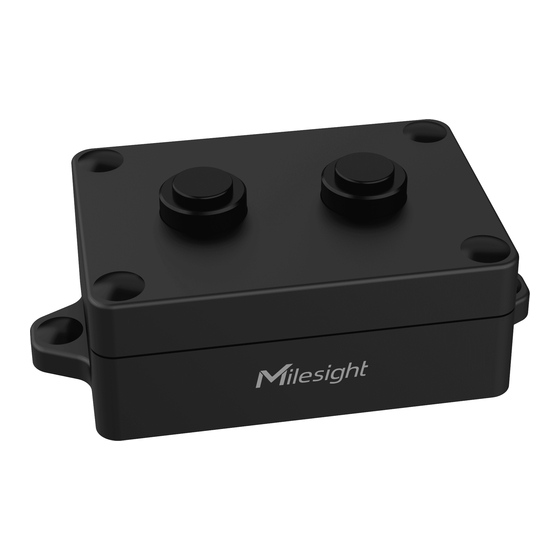

Milesight EM310-UDL User Manual

Ultrasonic distance sensor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Ultrasonic Distance
Sensor
EM310-UDL
User Guide
Milesight IoT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EM310-UDL and is the answer not in the manual?

Questions and answers

Related Manuals for Milesight EM310-UDL

Summary of Contents for Milesight EM310-UDL

  • Page 1 Ultrasonic Distance Sensor EM310-UDL User Guide Milesight IoT...
  • Page 2 The device must not be disassembled or remodeled in any way.  The device is not intended to be used as a reference sensor, and Milesight won’t should  responsibility for any damage which may result from inaccurate readings.

  • Page 3: Table Of Contents

    3.4.1 Calibration Settings......................10 3.4.2 Threshold Settings......................10 3.5 Maintenance..........................11 3.5.1 Upgrade..........................11 3.5.2 Backup..........................11 3.5.3 Reset to Factory Default....................12 4. Installation..............................13 5. Milesight IoT Cloud Management......................13 6. Device Payload............................14 6.1 Basic Information..........................15 6.2 Sensor Data............................15 6.3 Downlink Commands........................16...

  • Page 4: Product Introduction

    LoRaWAN ® enables encrypted radio transmissions over long distance while consuming very little power. The user can obtain sensor data and view the trend of data change through Milesight IoT Cloud or through the user's own Network Server. 1.2 Features 3 to 450 cm wide measuring range with short bind zone ...

  • Page 5: Hardware Overview

    2.2 Hardware Overview 2.3 Dimensions (mm) 2.4 Power Button EM310-UDL can be switched on/off via NFC. Besides, users can use power button to switch on/off and reset the device manually. Function Action LED Indication Switch On Press and hold the button for more than 3 seconds.

  • Page 6: Lorawan Settings

    2) If the smartphone fails to read/write configurations via NFC, keep the phone away and back to try again. 3) EM310-UDL can also be configured by dedicated NFC reader provided by Milesight IoT or you can configure it via TTL interface inside the device.
  • Page 7 Parameters Description Device EUI Unique ID of the device which can also be found on the label. App EUI Default App EUI is 24E124C0002A0001. Application Port The port used for sending and receiving data, default port is 85. Join Type OTAA and ABP mode are available.
  • Page 8 1) Please contact sales for device EUI list if there are many units. 2) Please contact sales if you need random App keys before purchase. 3) Select OTAA mode if you use Milesight IoT cloud to manage devices. 4) Only OTAA mode supports rejoin mode.

  • Page 9: Basic Settings

    Note: For -868M model, default frequency is EU868; For -915M model, default frequency is AU915. 3.3 Basic Settings Go to “Device -> Setting -> General Settings of ToolBox App to change the reporting interval, etc. Parameters Description Reporting interval of transmitting data to network server. Default: 10 mins Reporting Interval Range: 1-1080 mins Tilt &...

  • Page 10: Advanced Settings

    3.4 Advanced Settings 3.4.1 Calibration Settings Go to Device -> Setting -> Calibration Settings of ToolBox App to enable calibration. EM310-UDL supports two calibration types: Numerical Calibration: users can define calibration value to correct every distance.  Measure Outlier Calibration: users can define either outlier range or value. When the device ...

  • Page 11: Maintenance

    2) Only Android version ToolBox supports the upgrade feature. 3.5.2 Backup EM310-UDL support configuration backup for easy and quick device configuration in bulk. Backup is allowed only for devices with the same model and LoRa frequency band. 1. Go to “Template” page on the App and save current settings as a template. You can also edit the template file.

  • Page 12: Reset To Factory Default

    Note: Slide the template item left to edit or delete the template. Click the template to edit the configurations. 3.5.3 Reset to Factory Default Please select one of following methods to reset device: Via Hardware: Hold on power button (internal) for more than 10s. Via ToolBox App: Go to “Device ->...

  • Page 13: Installation

    5. Milesight IoT Cloud Management EM310-UDL can be managed by Milesight IoT Cloud platform. Milesight IoT cloud is a comprehensive platform that provides multiple services including device remote management and data visualization with the easiest operation procedures.

  • Page 14: Device Payload

    2. Go to “My Devices” page and click “+New Devices”. Fill in the SN of the device and select an associated gateway. 3. After the device is online in Milesight IoT Cloud, you can check the data via webpage or mobile App and create dashboard for it.

  • Page 15: Basic Information

    Value 0100 (Software (V1.0) (Device Type) (Class A) version) 6.2 Sensor Data EM310-UDL reports sensor data according to reporting interval (10 mins by default). Channel Type Description 75(Battery Level) UINT8, Unit: % 82 (Distance) UINT16, Unit: mm 00: Normal (horizontal offset angle < 20°) 00 (Device Position) 01: Tilt (horizontal offset angle ≥...

  • Page 16: Downlink Commands

    Channel Type Value 00 (Device 00=Normal Position) 6.3 Downlink Commands EM310-UDL supports downlink commands to configure the device. Application port is 85 by default. Channel Type Description 03 (Set Reporting Interval) 2 Bytes, unit: s Example: Set reporting interval as 20 minutes.
