- Page 1 Environment Monitoring Sensor Featuring LoRaWAN ® EM300 Series User Guide...
- Page 2 In order to protect the security of the device, please change device password when first configuration. The default password is 123456. The device is not intended to be used as a reference sensor, and Milesight will not should responsibility for any damage which may result from inaccurate readings.
- Page 3 For assistance, please contact Milesight technical support: Email: iot.support@milesight.com Tel: 86-592-5085280 Fax: 86-592-5023065 Address: Building C09, Software Park III, Xiamen 361024, China Revision History Date Doc Version Description Oct. 14, 2020 V 1.0 Initial version Oct. 21, 2020 V 1.1 Model name change and pictures replace Nov.
-
Page 4: Table Of Contents
3.4.2 Threshold Settings......................11 3.4.3 Alarm Settings........................12 3.5 Maintenance..........................12 3.5.1 Upgrade..........................12 3.5.2 Backup..........................13 3.5.3 Reset to Factory Default....................14 4. Installation..............................14 5. Milesight IoT Cloud Management......................15 6. Device Payload............................16 6.1 Basic Information..........................17 6.2 Sensor Data............................17 6.3 Downlink Commands........................18... -
Page 5: Product Introduction
® ® enables encrypted radio transmissions over long distance while consuming very little power. The user can obtain sensor data and view the trend of data change through Milesight IoT Cloud or through the user's own Network Server. 1.2 Features Up to 11 km communication range ... -
Page 6: Hardware Overview

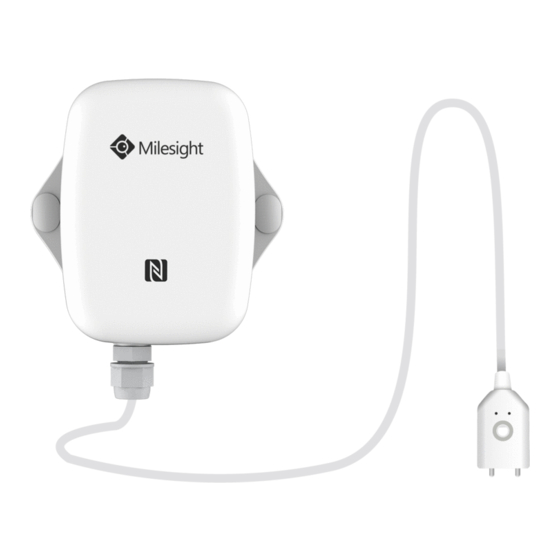

2.2 Hardware Overview Front View: ①NFC Area Bottom View: ② Vent ③ Waterproof Connectors (For water leakage and magnet switch sensor) 2.3 Dimensions(mm) 2.4 Power Button Note: The LED indicator and power button are inside the device. Switch on/off and reset can also be configured via NFC. -
Page 7: Operation Guide
3.1 NFC Configuration EM300 series can be configured via NFC. 1. Download and install “Milesight ToolBox” App from Google Play or Apple Store. 2. Enable NFC on the smartphone and open“Milesight ToolBox” App. 3. Attach the smartphone with NFC area to the device to read basic information. -
Page 8: Lorawan Settings
2) If the smartphone fails to read/write configurations via NFC, keep the phone away and back to try again. 3) EM300 series can also be configured by dedicated NFC reader provided by Milesight IoT or you can configure it via TTL interface inside the device. - Page 9 1) Please contact sales for device EUI list if there are many units. 2) Please contact sales if you need random App keys before purchase. 3) Select OTAA mode if you use Milesight IoT cloud to manage devices. 4) Only OTAA mode supports rejoin mode.
- Page 10 If frequency is one of CN470/AU915/US915, you can enter the index of the channel that you want to enable in the input box, making them separated by commas. Examples: 1, 40: Enabling Channel 1 and Channel 40 1-40: Enabling Channel 1 to Channel 40 1-40, 60: Enabling Channel 1 to Channel 40 and Channel 60 All: Enabling all channels Null: Indicates that all channels are disabled...
-
Page 11: Basic Settings
3.3 Basic Settings Go to “Device->Setting->General Settings” of ToolBox App to change the reporting interval, etc. Parameters Description Reporting Interval Reporting interval of transmitting data to network server.Default: 600s Change the temperature unit displayed on the ToolBox. Note: Temperature Unit 1) The temperature unit in the reporting package is fixed as °C. -
Page 12: Alarm Settings
3.5 Maintenance 3.5.1 Upgrade 1. Download firmware from Milesight website to your smartphone. 2. Open Toolbox App and click “Browse” to import firmware and upgrade the device. Note: 1) Operation on ToolBox is not supported during an upgrade. -
Page 13: Backup
3.5.2 Backup EM300 devices support configuration backup for easy and quick device configuration in bulk. Backup is allowed only for devices with the same model and LoRa frequency band. 1. Go to “Template” page on the App and save current settings as a template. You can also edit the template file. -
Page 14: Reset To Factory Default
3.5.3 Reset to Factory Default Please select one of following methods to reset device: Via Hardware: Hold on power button (internal) for more than 10s. Via ToolBox App: Go to “Device->Maintenance” to click “Reset”, then attach smart phone with NFC area to device to complete reset. 4. -
Page 15: Milesight Iot Cloud Management
5. Milesight IoT Cloud Management EM300 series can be managed by Milesight IoT Cloud platform. Milesight IoT cloud is a comprehensive platform that provides multiple services including device remote management and data visualization with the easiest operation procedures. -
Page 16: Device Payload
2. Go to “My Devices” page and click “+New Devices”. Fill in the SN of device and select associated gateway. 3. After the device is online in Milesight IoT Cloud, you can check the data via webpage or mobile App and create dashboard for it. -
Page 17: Basic Information
6.1 Basic Information EM300 series sensors report basic information of sensor whenever joining the network. Channel Type Description 01(Protocol Version) 01=>V1 09 (Hardware Version) 01 40 => V1.4 0a(Software Version) 01 14 => V1.14 0f(Device Type) 00: Class A, 01: Class B, 02: Class C 16(Device SN) 16 digits Example:... -
Page 18: Downlink Commands
10 01 => 01 10 = 272 64 => 100% (Temperat Temp=272*0.1=27.2°C (Battery) ure) Channel Type Value Channel Type Value 71=>113 01=>Water leakage Hum=113* (Humidity) 0.5=56.5% 6.3 Downlink Commands EM300 series sensors support downlink commands to configure the device. The application port is 85 by default.
