Summary of Contents for Milesight EM300 Series

  • Page 1 EM300 Series User Guide Milesight IoT...
  • Page 2 The device must not be disassembled or remodeled in any way.  The device is not intended to be used as a reference sensor, and Milesight will not should  responsibility for any damage which may result from inaccurate readings.
  • Page 3 For assistance, please contact Milesight technical support: Email: iot.support@milesight.com Tel: 86-592-5085280 Fax: 86-592-5023065 Address: 4/F, No.63-2 Wanghai Road, Software Park, Xiamen, China Revision History Date Doc Version Description Oct. 14, 2020 V 1.0 Initial version Oct. 21, 2020 V 1.1 Model name change and pictures replace Nov.

  • Page 4: Table Of Contents

    3.5.3 Reset to Factory Default....................15 4. Installation..............................16 5. Milesight IoT Cloud Management......................17 5.1 Add a Milesight Gateway......................17 5.2 Add EM300 to Milesight IoT Cloud.................... 18 6. Device Payload............................19 6.1 Basic Information..........................19 6.2 Sensor Data............................20 6.3 Downlink Commands........................20...

  • Page 5: Product Introduction

    LoRaWAN ® enables encrypted radio transmissions over long distance while consuming very little power. The user can obtain sensor data and view the trend of data change through Milesight IoT Cloud or through the user's own Network Server. 1.2 Features Up to 11km communication range ...

  • Page 6: Hardware Overview

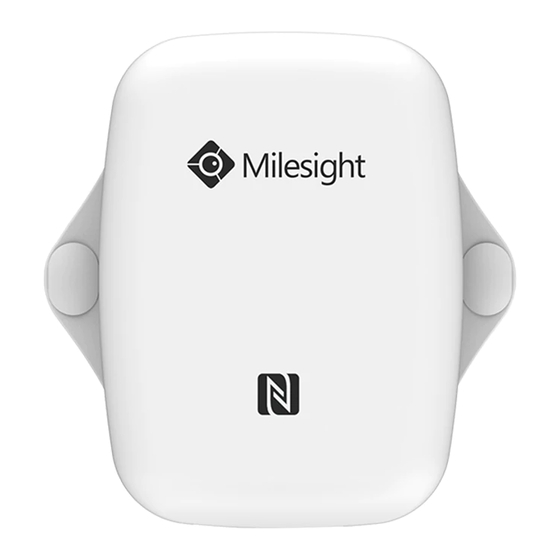

    2.2 Hardware Overview Front View: ①NFC Area Bottom View: ② Vent ③ Waterproof Connectors (For water leakage and magnet switch sensor) Internal View: ④ LED ⑤ Power Button ⑥ USB Type-C ⑦ Expandable Battery Slot ⑧ Battery 2.3 Power Button Note: The LED indicator and power button are inside the device.

  • Page 7: Dimensions(Mm)

    2.4 Dimensions(mm) 3. Operation Guide 3.1 Log in the ToolBox EM300 series can be monitored and configured via ToolBox App or ToolBox software. Please select one of them to complete configuration. 3.1.1 NFC Configuration Preparation: Smartphone (NFC supported)  Milesight ToolBox App ...

  • Page 8: Usb Configuration

    2) If the smartphone fails to read/write configurations via NFC, keep the phone away and back to try again. 3) EM300 series can also be configured by dedicated NFC reader, which can be purchased from Milesight IoT. 3.1.2 USB Configuration...

  • Page 9: Lorawan Settings

    Steps: 1. Download ToolBox from Milesight IoT website. 2. Open the case of EM300 and connect the EM300 to computer via type-C port. 3. Open the ToolBox and select type as “General”, then click password to log in ToolBox. (Default password: 123456) 4.
  • Page 10 Step 1: Go to “LoRaWAN Settings -> Basic” of ToolBox software or “Device->Setting->LoRaWAN Settings” of ToolBox App to configure join type, App EUI, App Key and other information. You can also keep all settings by default. Parameters Description Device EUI Unique ID of the device which can also be found on the label.
  • Page 11 1) Please contact sales for device EUI list if there are many units. 2) Please contact sales if you need random App keys before purchase. 3) Select OTAA mode if you use Milesight IoT cloud to manage devices. 4) Only OTAA mode supports rejoin mode.

  • Page 12: Basic Settings

    Note: For -868M model, default frequency is EU868; For -915M model, default frequency is AU915. 3.3 Basic Settings Go to “Device Settings->Basic” of ToolBox software or “Device->Setting->General Settings” of ToolBox App to change the reporting interval, etc. Parameters Description Reporting Interval Reporting interval of transmitting data to network server.Default: 600s Change the temperature unit displayed on the ToolBox.

  • Page 13: Advanced Settings

    3.4.2 Threshold Settings EM300 series will upload the current data once instantly after the threshold is triggered. Go to “Device Settings->Basic” of ToolBox software or “Device->Setting->Threshold Settings” of ToolBox App to enable the threshold settings and input the threshold.

  • Page 14: Backup

    Upgrade Locally: Step 1: Click “Browse” to import firmware from your computer. Step 2: Click “Upgrade” to start the upgrade. Upgrade Over the Air: Step 1: Select the upgraded server according to your region and make sure your computer can access the Internet.

  • Page 15: Reset To Factory Default

    Note: Slide the template item left to edit or delete the template. Click the template to edit the configurations. 3.5.3 Reset to Factory Default Please select one of following methods to reset device: Via Hardware: Hold on power button more than 10s. Via ToolBox Software: Go to “Maintenance->Backup and Reset”...

  • Page 16: Installation

    Via ToolBox App: Go to “Device->Reset” to click “Reset”, then attach smart phone with NFC area to device to complete reset. 4. Installation 1. Attach EM300 to the wall and mark the two holes on the wall. The connecting line of two holes must be a horizontal line.

  • Page 17: Milesight Iot Cloud Management

    5. Milesight IoT Cloud Management EM300 series can be managed by Milesight IoT Cloud platform. Milesight IoT cloud is a comprehensive platform that provides multiple services including device remote management and data visualization with the easiest operation procedures. Please register a Milesight IoT Cloud account before operating following steps.

  • Page 18: Add Em300 To Milesight Iot Cloud

    Step 2: Go to “My Devices” page and click “+New Devices” to add gateway to Milesight IoT Cloud via SN. Gateway will be added under “Gateways” menu. Step 3: Check if gateway is online in Milesight IoT Cloud. 5.2 Add EM300 to Milesight IoT Cloud Step 1: Go to “My Devices”...

  • Page 19: Device Payload

    Step 2: After the device is online in Milesight IoT Cloud, you can check the data via webpage or mobile App and create dashboard for it. 6. Device Payload All data are based on following format(HEX): Channel1 Type1 Data1 Channel2...

  • Page 20: Sensor Data

    0a(Software Version) 01 14 V1.14 0f(Device Type) Class A 6.2 Sensor Data EM300 series sensors report sensor data according to reporting interval (10min by default). Battery level is reported every 24 hours. Channel Type Data Example Description 64=>100 75(Battery Level) Battery level =100% 10 01 =>...
