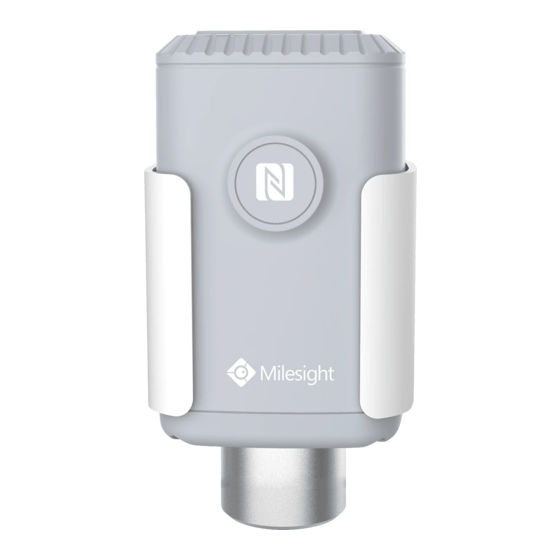

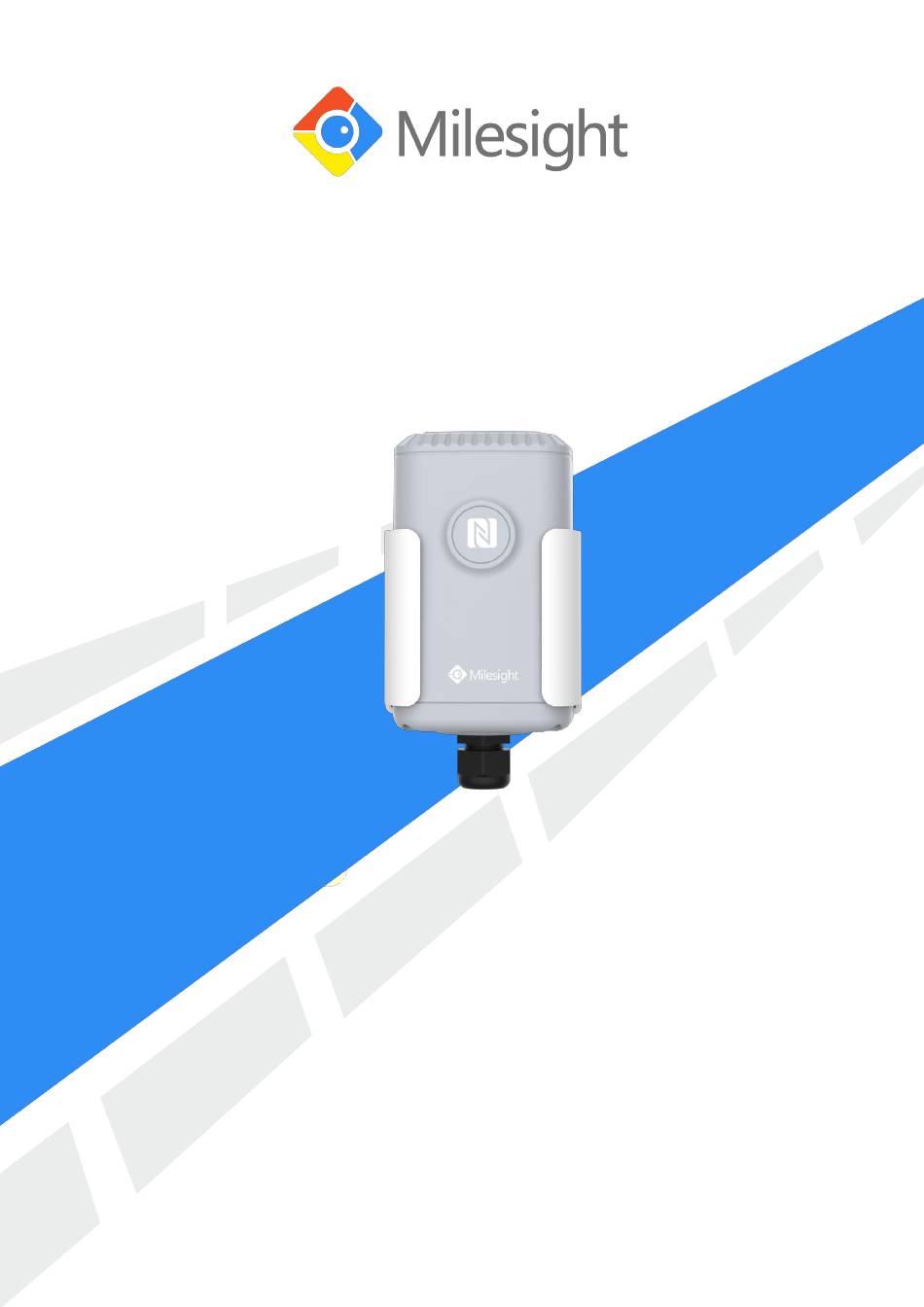

- Page 1 EM500 Series User Guide Xiamen Milesight IoT Co., Ltd.
- Page 2 The device must not be remodeled in any way. The device is not intended to be used as a reference sensor, and Milesight will not should responsibility for any damage which may result from inaccurate readings.
- Page 3 All information in this guide is protected by copyright law. Whereby, no organization or individual shall copy or reproduce the whole or part of this user guide by any means without written authorization from Xiamen Milesight IoT Co., Ltd. For assistance, please contact Milesight technical support: Email: iot.support@milesight.com...
-
Page 4: Table Of Contents
4.3 Calibration............................15 4.4 Threshold and Alarm........................15 5. Milesight IoT Cloud Management......................16 5.1 Add a Milesight Gateway......................16 5.2 Add EM500 to Milesight IoT Cloud.................... 17 6. Sensor Payload............................18 6.1 Basic Information..........................18 6.2 Sensor Data............................18 6.3 Downlink Commands........................20 Appendix............................... -
Page 5: Product Introduction
® ® enables encrypted radio transmissions over long distance while consuming very little power. The user can obtain sensor data and view the trend of data change through Milesight IoT Cloud or through the user's own Network Server. 1.2 Features Up to 11km communication range ... -
Page 6: Dimensions(Mm)
EM500 Series User Guide Front View of EM500-CO ①LoRa Antenna (Internal) ②NFC Area ③Vent Tube Front View of EM500-UDL: ①LoRa Antenna (Internal) ②NFC Area ③Ultrasonic Horn Back View: ④Battery (Internal) ⑤Wall Mounting Holes ⑥Pole Mounting Holes 2.2 Dimensions(mm) EM500 www.milesight-iot.com... -
Page 7: Power Button Descriptions
EM500 Series User Guide EM500-CO EM500-UDL 2.3 Power Button Descriptions Note: EM500 can also be turned on/off and reset via Mobile APP or Toolbox. Function Action LED Indication Turn On Press and hold the button for more than 3s. Off →... -
Page 8: Basic Configuration
EM500 Series User Guide 3. Basic Configuration EM500 sensor can be monitored and configured via one of the following methods: Mobile APP (NFC); Windows software (NFC or Type-C port). In order to protect the security of sensor, password validation is required when configuring via unused phone . -
Page 9: Template Configuration
EM500 Series User Guide 4. Go to“Device > Status” to tap“Read”and attach the smartphone with NFC area to the device to read real-time data of sensor. 3.1.2 Template Configuration Template settings only work for easy and quick device configuration in bulk. -
Page 10: Configuration Via Pc
EM500 Series User Guide 3. Select the template file from Toolbox APP and tap “Write”,keep the two devices close until the APP shows a successful prompt. 4. Slide the template item to the left to edit or delete the template. - Page 11 EM500 Series User Guide 2. Select type as “General” and click password to log in Toolbox. (Default password: 123456) NFC Connection 1. Connect the NFC reader to computer, then attach the EM500 to NFC area of the reader. 2. Select type as “NFC” and serial port as NFC reader port on Toolbox.
-
Page 12: Basic Configuration
EM500 Series User Guide 3.2.2 Basic Configuration 1. Click “Read” to read current data of the sensor. 2. When you perform one of the following operations, enter the password and wait a few seconds until toolbox shows a successful prompt. (Password is not need if you connect it via... -
Page 13: Template Settings
EM500 Series User Guide 3.2.3 Template Settings Note: Template function is allowed only for sensors with the same model and LoRa frequency band. 1. Go to “Maintenance -> Template and Reset” page in Toolbox. 2. Click “Export” to save the current settings as a template. -
Page 14: Advanced Feature Description
24E124C0002A0001 The port used for sending or receiving data. Application Port Default: OTAA or ABP mode. Join Type Note: If you use Milesight IoT cloud to manage OTAA sensors, please select OTAA mode. 5572404C696E6B4C Application Key Appkey of the sensor. -
Page 15: Basic Settings
EM500 Series User Guide Enable or disable LoRa channels. If frequency is one of CN470/AU915/US915, you can enter the index of the channel that you want to enable in the input box, making them separated by commas. Examples: Channel Appendix... -
Page 16: Milesight Iot Cloud Management
1. Enable “Milesight” type network server and “Milesight IoT Cloud” mode in gateway web GUI. Note: Ensure gateway has accessed the Internet. 2. Go to “My Devices” page and click “+New Devices” to add gateway to Milesight IoT Cloud via SN. Gateway will be added under “Gateways” menu. -
Page 17: Add Em500 To Milesight Iot Cloud
1. Go to “My Devices” page and click “+New Devices”. Fill in the SN of EM500 and select associated gateway. 2. After EM500 is connected to Milesight IoT Cloud, you could check the device information and data and create dashboard for it. -
Page 18: Sensor Payload
EM500 Series User Guide 6. Sensor Payload All data are based on following format(HEX): Channel1 Type1 Data1 Channel2 Type2 Data2 Channel 3 1 Byte 1 Byte N Bytes 1 Byte 1 Byte M Bytes 1 Byte 6.1 Basic Information EM500 sensors report basic information of sensor everytime joining the network. - Page 19 EM500 Series User Guide 10 01 => 01 10 = 272 67 (Temperature) 10 01 Temp=272*0.1=27.2°C 71=>113 68(Humidity) Hum=113*0.5=56.5% 7d（CO 67 04 67 04 => 04 67 =1127 ppm ） 73（Barometric 68 27=>27 68=10088 68 27 Pressure） Pressure=10088*0.1=1008.8hPa EM500-LGT Channel...
-
Page 20: Downlink Commands
EM500 Series User Guide 10 01 => 01 10 = 272 67 (Temperature) 10 01 Temp=272*0.1=27.2°C 71=>113 68(Moisture) Hum=113*0.5=56.5% 7d（Conductivity） f0 00 f0 00 => 00 f0 =240 µs/cm EM500-SWL Channel Type Data Example Description 64=>100 75(Battery Level) Battery level =100%... -
Page 21: Default Uplink Channels
EM500 Series User Guide Appport 0x55 NetID 0x010203 The 5 to 12 digits of SN DevAddr e.g. SN = 61 26 A1 01 84 96 00 41 Then DevAddr = A1018496 AppKey 5572404C696E6B4C6F52613230313823 NwkSKey 5572404C696E6B4C6F52613230313823 AppSKey 5572404C696E6B4C6F52613230313823 Default Uplink Channels...
