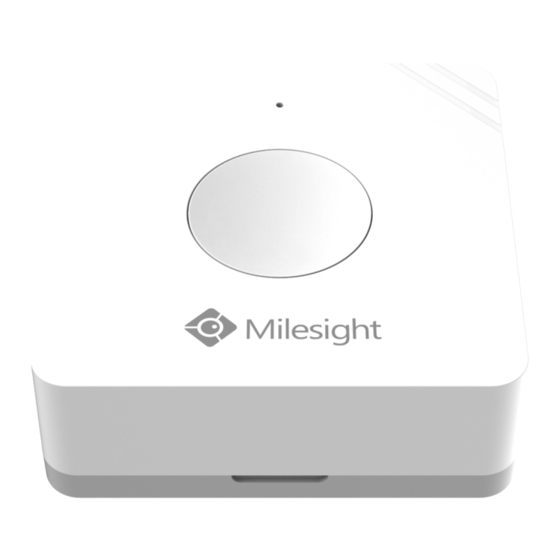

Milesight LoRaWAN WS101 User Manual

Smart button
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Smart Button
Featuring LoRaWAN
®
WS101
User Guide
Milesight IoT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LoRaWAN WS101 and is the answer not in the manual?

Questions and answers

Related Manuals for Milesight LoRaWAN WS101

Summary of Contents for Milesight LoRaWAN WS101

  • Page 1 Smart Button Featuring LoRaWAN ® WS101 User Guide Milesight IoT...
  • Page 2 Safety Precautions Milesight will not shoulder responsibility for any loss or damage resulting from not following the instructions of this operating guide. The device must not be modified in any way.  Do not place the device close to objects with naked flames.

  • Page 3: Table Of Contents

    Contents 1. Product Introduction..........................4 1.1 Overview............................4 1.2 Features............................4 2. Hardware Introduction..........................4 2.1 Packing List............................4 2.2 Hardware Overview.........................5 2.3 Dimensions (mm)........................... 5 2.4 LED Patterns............................ 5 3. Operation Guide............................6 3.1 Button Mode............................ 6 3.2 NFC Configuration.......................... 6 3.3 LoRaWAN Settings..........................7 3.4 General Settings..........................

  • Page 4: Product Introduction

    Besides, Milesight also provides a red button version that is primarily used for emergency situation. Compact and battery-powered, WS101 is easy to install and carry everywhere.

  • Page 5: Hardware Overview

    2.2 Hardware Overview 2.3 Dimensions (mm) 2.4 LED Patterns WS101 equips with a LED indicator to indicate the network status and reset button features. Besides, when button is pressed, the indicator will light up at the same time. Red indicator means network is unregistered, while green indicator means device has registered on network.

  • Page 6: Operation Guide

    1. Pull out the battery insulating sheet to power on the device. The indicator will light up in green for 3 seconds when device turns on. 2. Download and install “Milesight ToolBox” App from Google Play or App Store. 3. Enable NFC on the smartphone and open Milesight ToolBox.

  • Page 7: Lorawan Settings

    3) WS101 can also be configured by ToolBox software via dedicated NFC reader provided by Milesight IoT, you can also configure it via TTL interface inside the device. 3.3 LoRaWAN Settings LoRaWAN settings are used for configuring the transmission parameters in LoRaWAN network.
  • Page 8 1) Please contact sales representative for device EUI list if there are many units. 2) Please contact sales representative if you need random App keys before purchase. 3) Select OTAA mode if you use Milesight IoT Cloud to manage devices. 4) Only OTAA mode supports rejoin mode.

  • Page 9: General Settings

    1-40, 60: Enabling Channel 1 to Channel 40 and Channel 60 All: Enabling all channels Null: Indicates that all channels are disabled Note: For -868M model, default frequency is EU868; For -915M model, default frequency is AU915. 3.4 General Settings Go to Device->Setting->General Settings of ToolBox App to change the reporting interval, etc.

  • Page 10: Maintenance

    Change the password for ToolBox App to write this device. 3.5 Maintenance 3.5.1 Upgrade 1. Download firmware from Milesight website to your smartphone. 2. Open ToolBox App and click “Browse” to import firmware and upgrade the device. Note: 1) Operation on ToolBox is not supported during upgrade.

  • Page 11: Reset To Factory Default

    Note: Slide the template item to the left to edit or delete the template. Click the template to edit the configurations. 3.5.3 Reset to Factory Default Please select one of the following methods to reset device: Via Hardware: Hold on the reset button for more than 10s. After reset complete, the indicator will blink in green twice and device will reboot.

  • Page 12: Installation

    Type2 Data2 Channel 3 1 Byte 1 Byte N Bytes 1 Byte 1 Byte M Bytes 1 Byte For decoder examples you can find at https://github.com/Milesight-IoT/SensorDecoders. 5.1 Basic Information WS101 reports basic information of button every time joining the network.

  • Page 13: Button Message

    Channel Type Data Example Description 01(Protocol Version) Device SN is 08（Device SN） 61 27 a2 17 41 32 6127a2174132 09 (Hardware Version) 01 40 V1.4 0a (Software Version) 01 14 V1.14 0f(Device Type) Class A Example: ff 09 01 00 ff 0a 01 02 ff 0f 00 Channel Type Value...

  • Page 14: Downlink Commands

    5.3 Downlink Commands WS101 supports downlink commands to configure the device. Application port is 85 by default. Channel Type Data Example Description 03(Set Reporting Interval) b0 04 b0 04 => 04 b0 = 1200s -END-...
