- Page 1 Tilt Sensor Featuring LoRaWAN ® EM320-TILT User Guide...
- Page 2 Do not place the device where the temperature is below/above the operating range. The device is not intended to be used as a reference sensor, and Milesight will not should responsibility for any damage which may result from inaccurate readings.
- Page 3 Revision History Date Doc Version Description Feb.14, 2023 V 1.0 Initial version...
-
Page 4: Table Of Contents
Contents 1. Product Introduction ......................... 5 1.1 Overview ...........................5 1.2 Features ........................... 5 2. Hardware Introduction ........................5 2.1 Packing List ..........................5 2.2 Hardware Overview ......................... 6 2.3 Dimensions(mm) ........................6 3. Operation Guide ..........................7 3.1 NFC Configuration ........................7 3.2 LoRaWAN Settings ........................ -
Page 5: Product Introduction

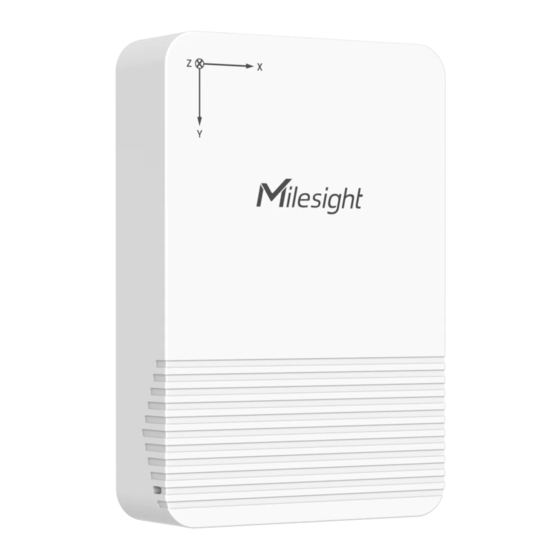

® tilt sensor mainly for angle measurement and asset movement detection. With a compact size and 3-axis accelerometer, EM320-TILT can be installed to the objects easily to measure its X,Y,Z tilt angles. In addition, EM320-TILT supports customizing initial position to detect movement based on angle changes and send threshold alarms. -
Page 6: Hardware Overview
2.2 Hardware Overview When you install EM320-TILT on site, below is the angle number you can expect with corresponding device gesture. 2.3 Dimensions(mm) -
Page 7: Operation Guide
Light Off: Device is off. 3. Operation Guide 3.1 NFC Configuration EM320-TILT sensor can be monitored and configured via NFC. Please refer the following steps to complete configuration. 1. Download and install “Milesight ToolBox” App from Google Play or Apple App Store. -
Page 8: Lorawan Settings
3.2 LoRaWAN Settings LoRaWAN settings is used for configuring the transmission parameters in LoRaWAN ® network. Basic LoRaWAN Settings: Go to Device > Settings > LoRaWAN Settings of ToolBox App to configure join type, App EUI, App Key and other information. You can also keep all settings by default. Parameters Description Device EUI... - Page 9 1) Please contact sales for device EUI list if there are many units. 2) Please contact sales if you need random App keys before purchase. 3) Select OTAA mode if you use Milesight IoT cloud to manage devices. 4) Only OTAA mode supports rejoin mode.
-
Page 10: Basic Settings
uplinks. Make sure the channels match the LoRaWAN gateway. ® If frequency is one of CN470/AU915/US915, you can enter the index of the channel that you want to enable in the input box, making them separated by commas. Examples: 1, 40: Enabling Channel 1 and Channel 40 1-40: Enabling Channel 1 to Channel 40 1-40, 60: Enabling Channel 1 to Channel 40 and Channel 60 All: Enabling all channels... -
Page 11: Threshold Settings
Parameters Description Reporting interval of transmitting current sensor values to network Reporting Interval server. Default: 1080 mins, Range: 1-1080 mins Change the password for ToolBox App or software to read/write this Change Password device. 3.4 Threshold Settings Go to Device > Settings > Threshold Settings to enable the threshold settings and input the angle threshold. - Page 12 Parameters Description Click Setting to set current position of device as initial position to measure the deflection angle. Initial Position Click Clear to change the initial position back to (0.00°, 0.00°, -90.00°). Note: after writing Setting or Clear configuration, click Read to read the device to check if the initial position changes successfully.
-
Page 13: Maintenance
3.5 Maintenance 3.5.1 Upgrade 1. Download firmware from www.milesight-iot.com to your smartphone. 2. Open ToolBox App and click Browse to import firmware and upgrade the device. Note: 1) Operation on ToolBox is not supported during the upgrade. 2) Only Android version ToolBox supports the upgrade feature. -
Page 14: Backup
3.5.2 Backup EM320-TILT sensor supports configuration backup for easy and quick device configuration in bulk. Backup is allowed only for devices with the same model and LoRaWAN frequency band. ® 1. Go to Template page on the App and save current settings as a template. You can also edit the template file. -
Page 15: Reset To Factory Default
3.5.3 Reset to Factory Default Please select one of following methods to reset device: Via Hardware: Hold on reset button inside the device more than 10s. Via ToolBox App: Go to Device > Maintenance > Reset to click Reset, then attach smart phone with NFC area to device to complete reset. -
Page 16: Device Payload
N Bytes 1 Byte 1 Byte M Bytes 1 Byte For decoder examples please find files on https://github.com/Milesight-IoT/SensorDecoders. 5.1 Basic Information EM320-TILT sensors report basic information of sensor whenever joining the network. Channel Type Description 01(Protocol Version) 01=>V1 09 (Hardware Version) 01 40 =>... -
Page 17: Sensor Data
Value 0101 (Software (V1.1) (Device Type) (Class A) version) 5.2 Sensor Data EM320-TILT sensors report sensor data according to reporting interval (1080mins by default). Item Channel Type Description Battery Level UINT8, Unit: % 6 Bytes, INT16 angle_x (2B) + angle_y(2B) + angle_z(2B), Unit:°, Resolution: 0.01°... -
Page 18: Downlink Commands
1001 1000 X_bit0: 0 => normal Y_bit0: 0 => normal Z_bit0: 1 => trigger 5.3 Downlink Commands EM320-TILT sensors support downlink commands to configure the device. The application port is 85 by default. Channel Type Description 03 (Set Reporting Interval) - Page 19 end to meet the size. Note: before setting the condition, ensure the corresponding axis threshold is enabled, or this condition will not work Example: 1. Set reporting interval as 20 minutes. ff03b004 Channel Type Value 03 (Set Reporting Interval) b0 04=>04 b0=1200s =20 minutes 2.
