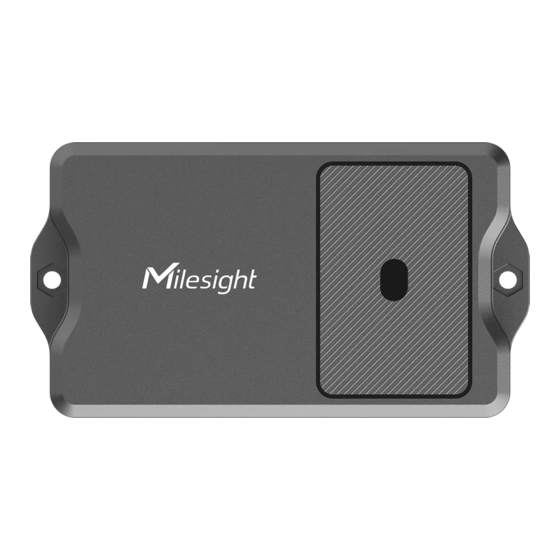

- Page 1 ToF Laser Distance Sensor Featuring LoRaWAN ® EM400-TLD User Guide...
- Page 2 In order to protect the security of the device, please change device password when first configuration. Default password is 123456. The device is not intended to be used as a reference sensor, and Milesight won’t should responsibility for any damage which may result from inaccurate readings.
-
Page 3: Table Of Contents
Contents 1. Product Introduction ......................... 4 1.1 Overview ...........................4 1.2 Features ........................... 4 2. Hardware Introduction ........................4 2.1 Packing List ..........................4 2.2 Hardware Overview ......................... 5 2.3 Dimensions (mm) ........................5 2.4 Power Button ........................... 5 3. Operation Guide ..........................5 3.1 NFC Configuration ........................ -
Page 4: Product Introduction
With IP67 waterproof rating and internal damp-proof coating, it is suitable for outdoor applications. Besides, EM400-TLD is equipped with 3-axis accelerometer to detect the status of container lid. Compatible with Milesight LoRaWAN gateway and IoT Cloud solution, users can ®... -
Page 5: Hardware Overview
2.2 Hardware Overview 2.3 Dimensions (mm) 2.4 Power Button EM400-TLD can be switched on/off via NFC. Besides, users can use power button to switch on/off and reset the device manually. Function Action LED Indication Switch On Press and hold the button for more than 3 seconds. -
Page 6: Lorawan Settings
2) If the smartphone fails to read/write configurations via NFC, keep the phone away and back to try again. 3) EM400-TLD can also be configured by dedicated NFC reader provided by Milesight IoT or you can configure it via TTL interface inside the device. - Page 8 1) Please contact sales for device EUI list if there are many units. 2) Please contact sales if you need random App keys before purchase. 3) Select OTAA mode if you use Milesight IoT cloud to manage devices. 4) Only OTAA mode supports rejoin mode.
- Page 9 LoRaWAN Frequency Settings: Go to Setting > LoRaWAN Settings to select supported frequency and select channels to send uplinks. Make sure the channels match the LoRaWAN ® gateway. If frequency is one of CN470/AU915/US915, you can enter the index of the channel that you want to enable in the input box, making them separated by commas.
-
Page 10: Basic Settings
Go to Device > Setting > Threshold Settings to enable the threshold settings and input the distance threshold. EM400-TLD will detect whether the distance reaches the threshold according to collecting interval. If threshold is triggered, it uploads the current data once... -
Page 11: Maintenance
3.5 Maintenance 3.5.1 Upgrade 1. Download firmware from Milesight website to your smartphone. 2. Open Toolbox App, go to Device > Maintenance and click Browse to import firmware and upgrade the device. -
Page 12: Backup
3.5.2 Backup EM400-TLD support configuration backup for easy and quick device configuration in bulk. Backup is allowed only for devices with the same model and LoRaWAN frequency band. ® 1. Go to Template page on the App and save current settings as a template. You can also edit the template file. -
Page 13: Installation
area to device to complete reset. 4. Installation 1. Drill two holes on the container cover according to the location of device mounting holes. 2. Put the device under container cover and align the holes in order to perfectly screw the bolts into the holes from the other side of the cover. -
Page 14: Device Payload
N Bytes 1 Byte 1 Byte M Bytes 1 Byte For decoder examples please find files on https://github.com/Milesight-IoT/SensorDecoders. 5.1 Basic Information EM400-TLD reports basic information of sensor whenever it joins the network. Channel Type Description 01(Protocol Version) 01=>V1 09 (Hardware Version) 01 40 =>... -
Page 15: Sensor Data
Value 0101 (Software (V1.1) (Device Type) (Class A) version) 5.2 Sensor Data EM400-TLD reports sensor data according to reporting interval (10 mins or 20 mins by default). Channel Type Description 75(Battery Level) UINT8, Unit: % 67 (Temperature) INT16, Unit: °C... -
Page 16: Downlink Commands
Value Temperature: 22 01 =>01 22 = 290 * 0.1 = 29 °C (Temperature) Alarm Status: 01= Alarm 5.3 Downlink Commands EM400-TLD supports downlink commands to configure the device. Application port is 85 by default. Channel Type Description 10 (Reboot) - Page 17 71 (Set Device Mode) 00 = Standard Mode; 01 = Bin Mode 3e (Set Tilt & Distance Switch) 00 = Disable; 01 = Enable 56 (Set ToF Distance Sensor) 00 = Disable; 01 = Enable 9 Bytes, CTRL(1B)+Min(2B)+Max(2B)+00000000 (4 CTRL: Bit2~Bit0: 000-disable 001-below...
- Page 18 4. When the distance is below 3mm or above 20mm, the sensor will send threshold alarm. ff06 8c 0300 1400 00000000 Channel Type Value CTRL: 8c=10 001 100 100=below or above 001=standard mode 06 (Set Threshold Alarm) 10=enable threshold dismiss report Min: 03 00=>...
