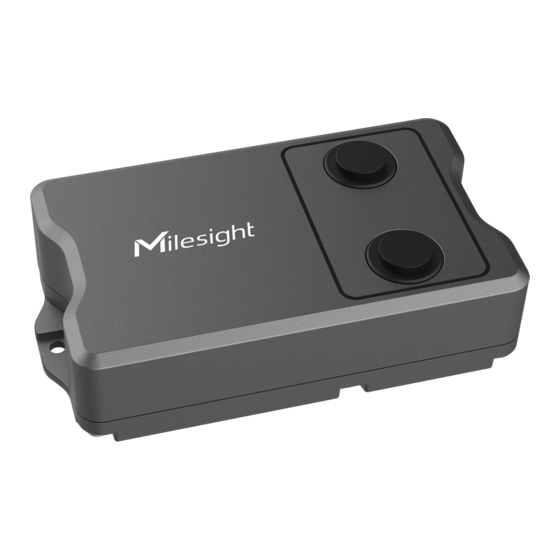

Multifunctional Ultrasonic
Distance Sensor
Featuring LoRaWAN
®
EM400-MUD
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EM400-MUD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Milesight EM400-MUD

  • Page 1 Multifunctional Ultrasonic Distance Sensor Featuring LoRaWAN ® EM400-MUD User Guide...
  • Page 2 In order to protect the security of the device, please change the device password when first configuration. Default password is 123456.  The device is not intended to be used as a reference sensor, and Milesight won’t should responsibility for any damage which may result from inaccurate readings. ...
  • Page 3: Table Of Contents

    Contents 1. Product Introduction ......................... 4 1.1 Overview ...........................4 1.2 Features ........................... 4 2. Hardware Introduction ........................4 2.1 Packing List ..........................4 2.2 Hardware Overview ......................... 5 2.3 Dimensions (mm) ........................5 2.4 Power Button ........................... 5 3. Operation Guide ..........................5 3.1 NFC Configuration ........................
  • Page 4: Product Introduction

    1. Product Introduction 1.1 Overview EM400-MUD is a multifunctional ultrasonic distance sensor with small blind spot. Besides a wide measuring rage, EM400-MUD is equipped with three pre-set modes including standard mode, trash bin mode, and parking lot mode for different applications. Featuring low power consumption LoRaWAN ®...
  • Page 5: Hardware Overview

    2.2 Hardware Overview 2.3 Dimensions (mm) 2.4 Power Button EM400-MUD can be switched on/off via NFC. Besides, users can use power button to switch on/off and reset the device manually. Function Action LED Indication Switch On Press and hold the button for more than 3 seconds.
  • Page 6: Lorawan Settings

    2) If the smartphone fails to read/write configurations via NFC, keep the phone away and back to try again. 3) EM400-MUD can also be configured by dedicated NFC reader provided by Milesight IoT or you can configure it via TTL interface inside the device.
  • Page 7 Parameters Description...
  • Page 8 1) Please contact sales for device EUI list if there are many units. 2) Please contact sales if you need random App keys before purchase. 3) Select OTAA mode if you use Milesight IoT cloud to manage devices. 4) Only OTAA mode supports rejoin mode.
  • Page 9 LoRaWAN Frequency Settings: Go to Setting > LoRaWAN Settings of ToolBox App to select supported frequency and select channels to send uplinks. Make sure the channels match the LoRaWAN ® gateway. If frequency is one of CN470/AU915/US915, you can enter the index of the channel that you want to enable in the input box, making them separated by commas.
  • Page 10: Basic Settings

    3.3 Basic Settings Go to Device > Setting > General Settings of ToolBox App to change the reporting interval, etc. Parameters Description Device Mode Select from Standard Mode, Bin Mode or Parking Lot Mode. Reporting interval of transmitting data to network server. Standard Mode: 10 minutes as default;...
  • Page 11: Advanced Settings

    Change the password for ToolBox App or software to access this device. 3.4 Advanced Settings 3.4.1 Calibration Settings Go to Device > Setting > Calibration Settings to enable calibration. EM400-MUD supports two calibration types. Numerical Calibration: users can define calibration value to correct every distance.
  • Page 12: Maintenance

    3.5 Maintenance 3.5.1 Upgrade 1. Download firmware from Milesight website to your smartphone. 2. Open Toolbox App, go to Device > Maintenance and click Browse to import firmware and upgrade the device.
  • Page 13: Backup

    3.5.2 Backup EM400-MUD support configuration backup for easy and quick device configuration in bulk. Backup is allowed only for devices with the same model and LoRaWAN ® frequency band. 1. Go to Template page on the App and save current settings as a template. You can also edit the template file.
  • Page 14: Reset To Factory Default

    3.5.3 Reset to Factory Default Please select one of following methods to reset device: Via Hardware: Hold on power button (internal) for more than 10s. Via ToolBox App: Go to Device > Maintenance to click Reset, then attach smartphone with NFC area to device to complete reset.
  • Page 15 2. Put the device under container cover and align the holes in order to perfectly screw the bolts into the holes from the other side of the cover. Besides, the device can also be fixed by two M4 mounting screws and wall plugs. Installation location: In order to provide the best data transmission, please ensure the device is deployed within ...
  • Page 16: Device Payload

    When EM400-MUD is in waste bin mode, place the device in the center of waste bin mode  and here are some recommended sizes of waste bins: when the height is 88cm, the minimum radius should be 24cm. 5. Device Payload...
  • Page 17 =0.257m Threshold Packet: When collected distance exceeds threshold, EM400-MUD will report a distance alarm packet; besides, it will also report a alarm dismiss packet if distance returns back to normal value. When the abrupt change of temperature is greater than 5 °C, it will report a temperature alarm packet.
  • Page 18: Downlink Commands

    Type Value Temperature: 22 01 =>01 22 = 290 * 0.1 = 29°C (Temperature) Alarm Status: 01= Alarm 5.3 Downlink Commands EM400-MUD supports downlink commands to configure the device. Application port is 85 by default. Channel Type Description 10 (Reboot)
  • Page 19 010-Bin Mode Bit6=0 Bit7: 0 - disable threshold dismiss report 1 - enable threshold dismiss report 70 (Set Height Threshold in 2 Bytes, unit: mm Parking Lot Mode) 77 (Set Installation Height) 2 Bytes, unit: mm Example: 1. Set reporting interval as 20 minutes. ff03b004 Channel Type...
  • Page 20 Min: c8 00 => 00 c8 = 200 mm = 20 cm Max: 2003 => 03 20 = 800 mm = 80cm 6. Set the height threshold in parking lot mode as 0.03m. ff701e00 Channel Type Value 70 (Set Height Threshold in 1e 00 =>...
