U M
SING THE ULTIMETER
A C
BOUT THIS HAPTER
This chapter provides step-by-step instructions for using the Multimeter functions.
These instructions also provide basic examples of menus and other basic operations.
M M C
AKING ETER ONNECTIONS
Use the four 4-mm safety banana jack inputs for the Meter functions:
10A, mA
.
The four (4) banana jack inputs on the face of the meter are, L to R, 10A current, mA
current, COM (ground/negative), and Volts/Resistance/Capacitance
M D
ULTIMETER ISPLAY

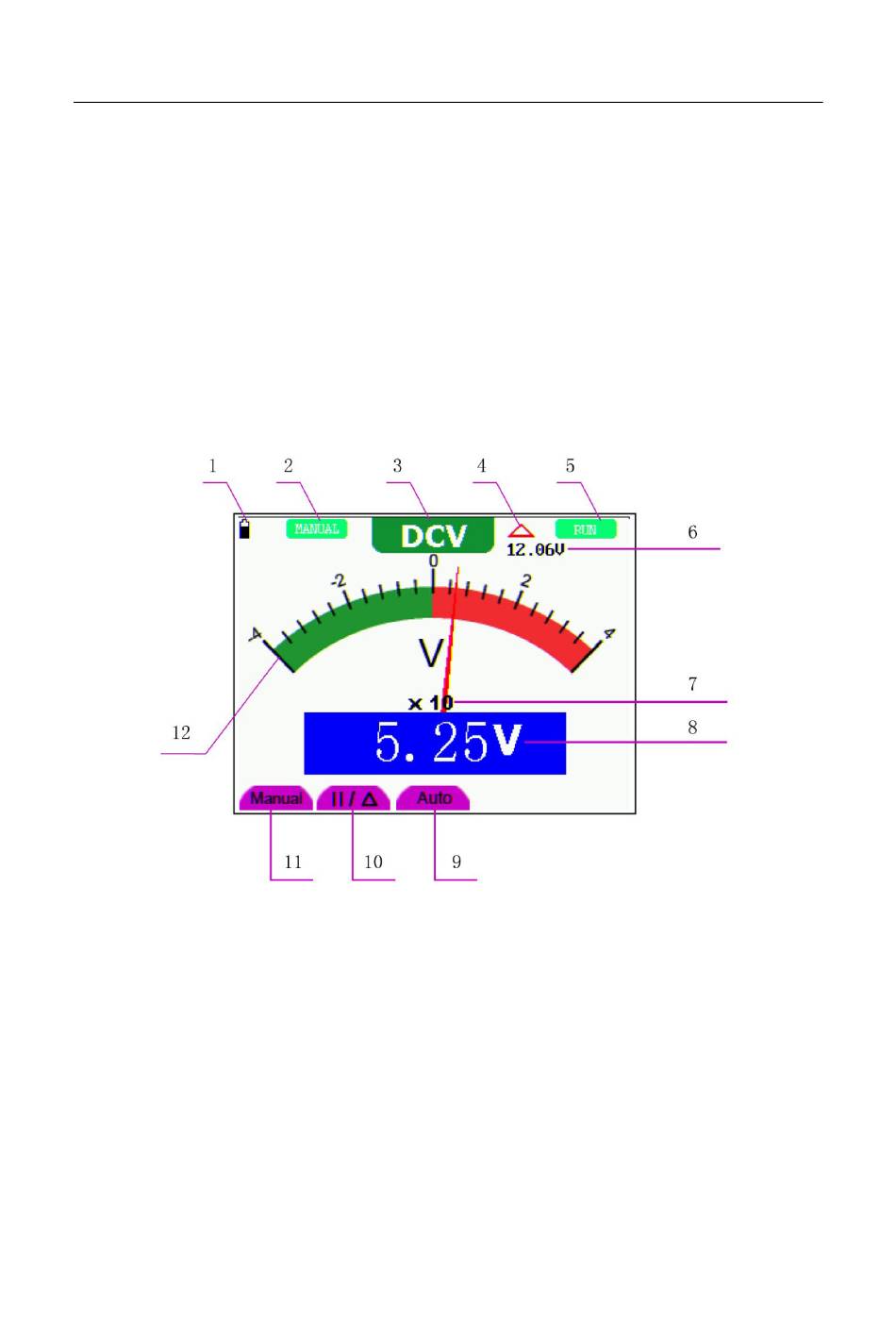

Figure 1: Multimeter Display Window
Description
1. Battery status indicator
2. Manual range indicator. In MANUAL mode the user selects the measurement
range
3. Measurement mode indicators:
DCV: DC Voltage measurement
W
INDOW
58
COM, V/Ω/C,
MS420-en-US_V6.0 2/23
