DIGITAL MULTIMETER INSTRUCTIONS
DESCRIPTIONS

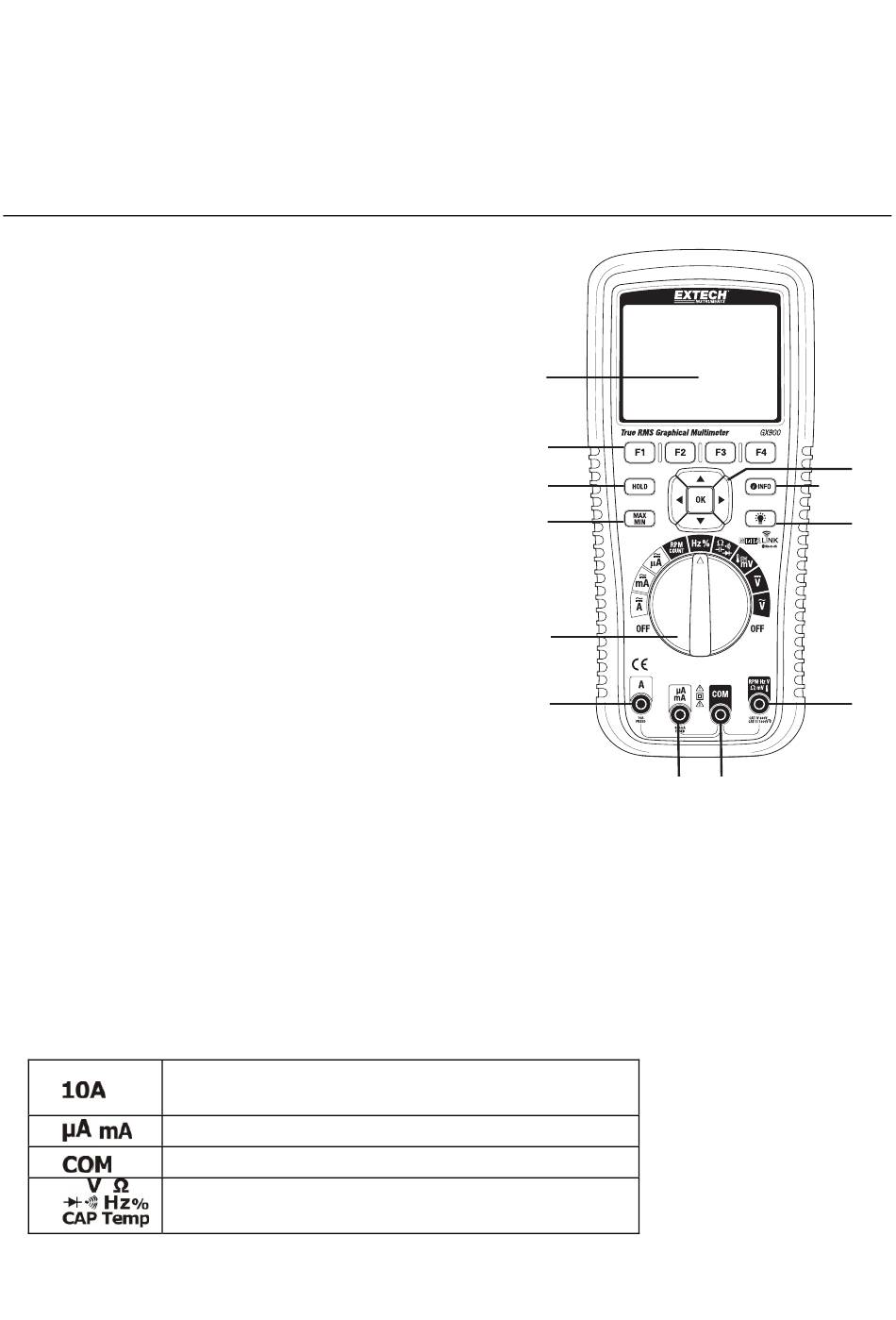

METER DESCRIPTION
1. LCD display
2. Sub‐function keys F1, F2, F3, and F4
3. Data HOLD button
4. MAX‐MIN memory button
5. Rotary Primary Function Select Switch
6. Input jack for Amperes (A)
7. Input jack mA, uA (milli‐ & micro‐Amperes)
8. Input jack (COM) negative
9. Input jack (positive) for all functions
10. Display Backlight control
11. Information button
12. Navigation arrow keys and OK confirmation button
Note: Battery compartment and tilt stand are located on the rear of the instrument
INPUT TERMINAL DESCRIPTION
All functions, excepting current, use the V and COM input terminals. Separate
terminals are provided for current above 500mA and for current below 500mA.
Input for 0 A to 10.00 A current (20VA overload for
30 seconds on, 10 minutes off)
Input for 0 A to 500 mA current measurements
Return terminal for all measurements
Input for voltage, continuity, resistance, diode
test, conductance, capacitance
1
2
3
4
5
6
12
Extech Instruments
7 8
GX900-GX930-EN V1.1 5/14
12
11
10
9
