I
C
NPUT
ONNECTIONS
I
C
NPUT
ONNECTIONS
See Figure 2 below
6

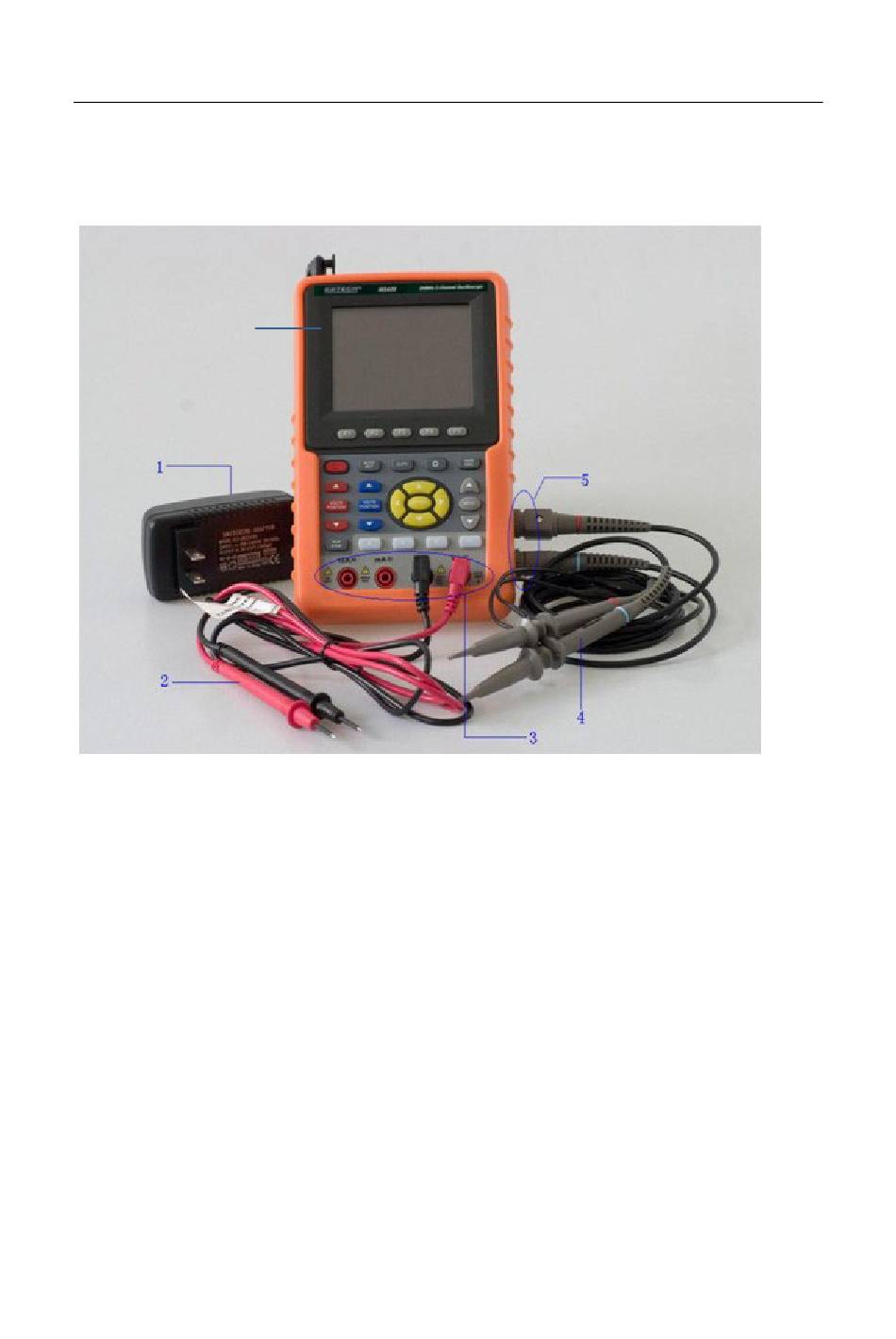

Figure 2
Description
1. The power adapter is use to supply AC power and for battery recharging
2. Multimeter test leads
3. Multimeter input jacks (L to R: Current 2A-10A input, mA Current input, COM
ground input, Voltage/Resistance/Capacitance input)
4. Oscilloscope probes
5. Oscilloscope channel inputs
6. Square wave output jack
9
MS420-en-US_V6.0 2/23
