Extech Instruments MS420 User Manual page 30

Digital 20mhz oscilloscope
Hide thumbs
Table of Contents

Advertisement

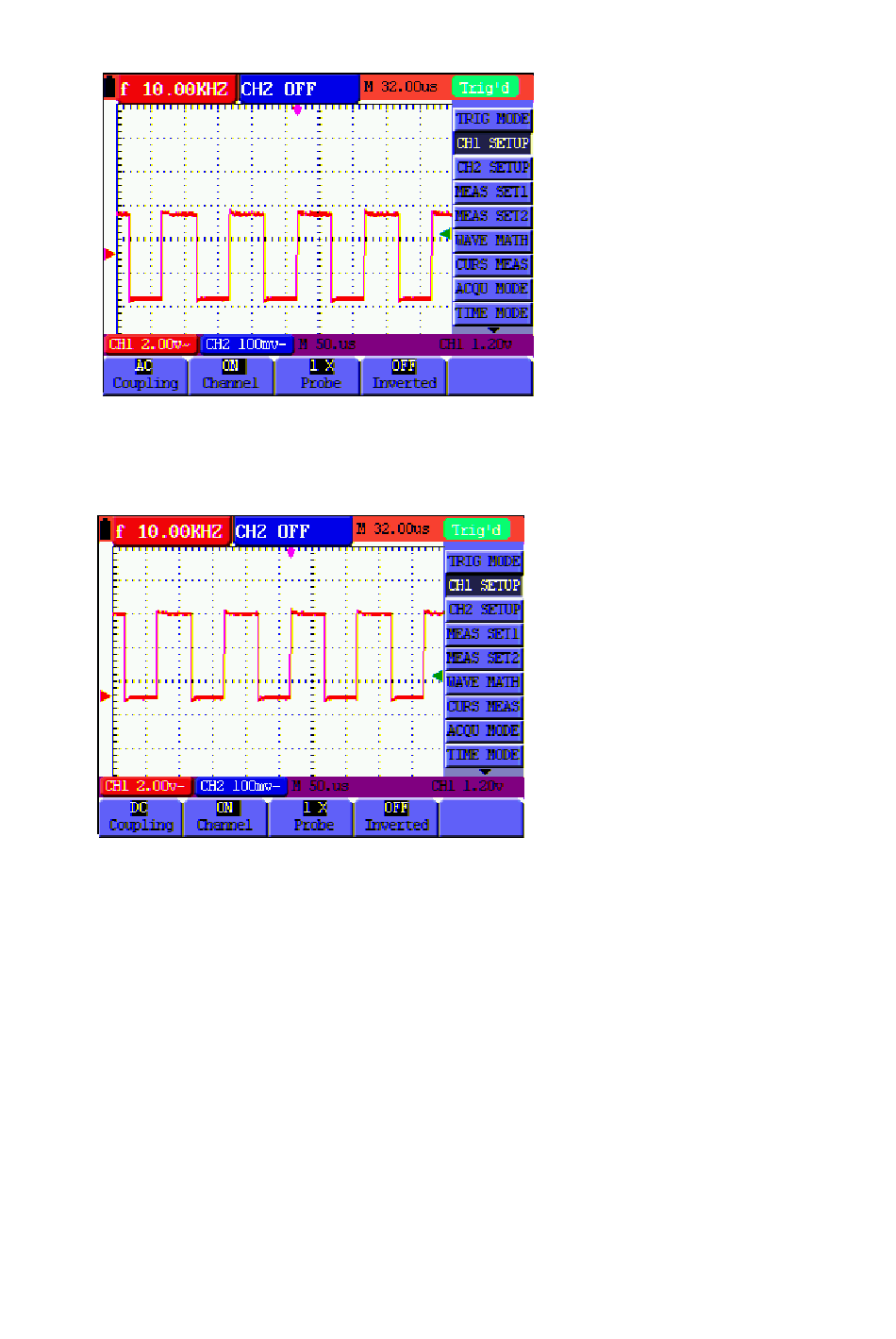

Figure 20: AC Coupling
Figure 21: DC Coupling
O
C
M
C
PEN AND
LOSE
EASUREMENT
HANNELS
CH1 will be used in this example.
Press the F2 Channel key and then OFF to Close CH1.
Press the F2 Channel key and then ON to Open CH1.
30
MS420-en-US_V6.0 2/23
