A O
DVANCED SCILLOSCOPE
About this Chapter
Advanced Oscilloscope functions are covered in this chapter.
V S
ERTICAL ETTINGS FOR
Each channel has its own independent vertical menu and each item can be set respectively
based on the specific channel.
To make vertical CH1 and CH2 settings, perform the following steps:
1. Press the MENU key; the function menu will appear at the right of the screen.
Press MENU ▲ or MENU ▼ to select CH1 SETUP. Four (4) selectable options will
2.
appear at the bottom of the screen.
Use the soft function keys (F1 through F4) to adjust settings as desired.
3.
Refer to Figure 19.

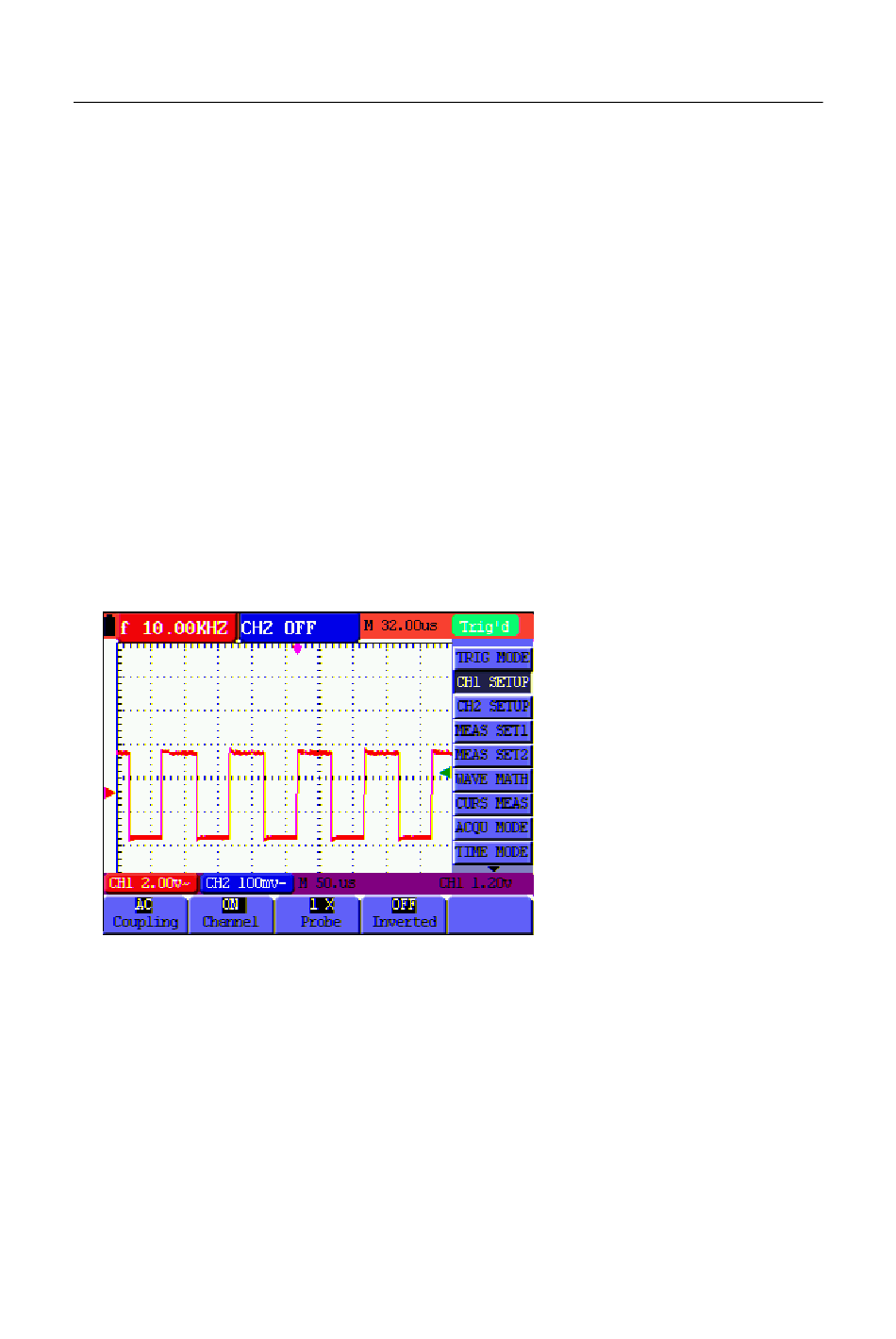

Figure 19: Vertical Settings
F
UNCTIONS
CH1 CH2
AND
