To use the cursor for a Time measurement on CH1, perform the following steps:
Press the MENU key; the function menus will appear at the right of the
1.
screen.
Press the MENU ▲ or MENU ▼ key to select Cursor measurement. Two
2.
(2) selectable options will then appear at the bottom of the screen.
3. Press the F1 key to select the measurement type Time. Two vertical dashed
lines T1 and T2 will appear on the screen.
4. Press the F2 key and select the channel CH1.
5. Press OPTION and the display will show:
—Cursor 2
—Cursor 1
Press ▲ (yellow) or ▼ (yellow) to move T1 left and right; the value of T1 (relative to
the middle of the screen) will display. Press ◄(yellow) or ►(yellow) to move T2 left
and right; the value of T2(relative to the middle of the screen) will display as shown in
Figure 37-a:

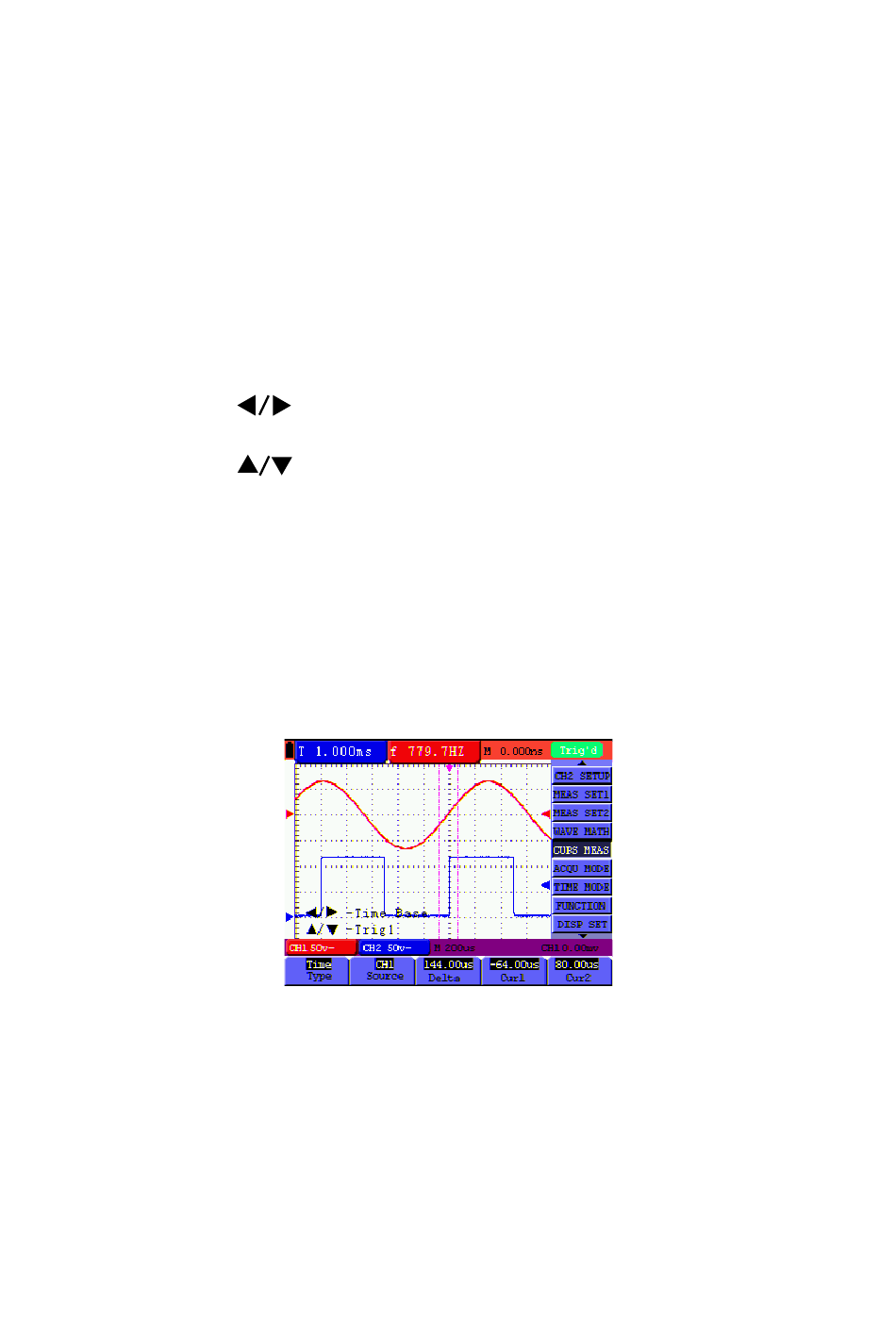

Figure 37-a: Time Measurement using cursor
