Figure 14: Persistence Mode to Observe Dynamic Signals
U P D
SING EAK ETECTION TO
Use Peak Detect to display events (glitches or other asynchronous waveforms) down
to 50 ns (nanoseconds).
1. Press the MENU key; the function menu will appear at the right side of the
screen.
Press MENU ▲ or MENU ▼ to select the ACQU MODE. Four (4) selectable
2.
options will appear at the bottom of the screen.
3. Press the F2 key to select Glitch Detect.
Refer to Figure 15.

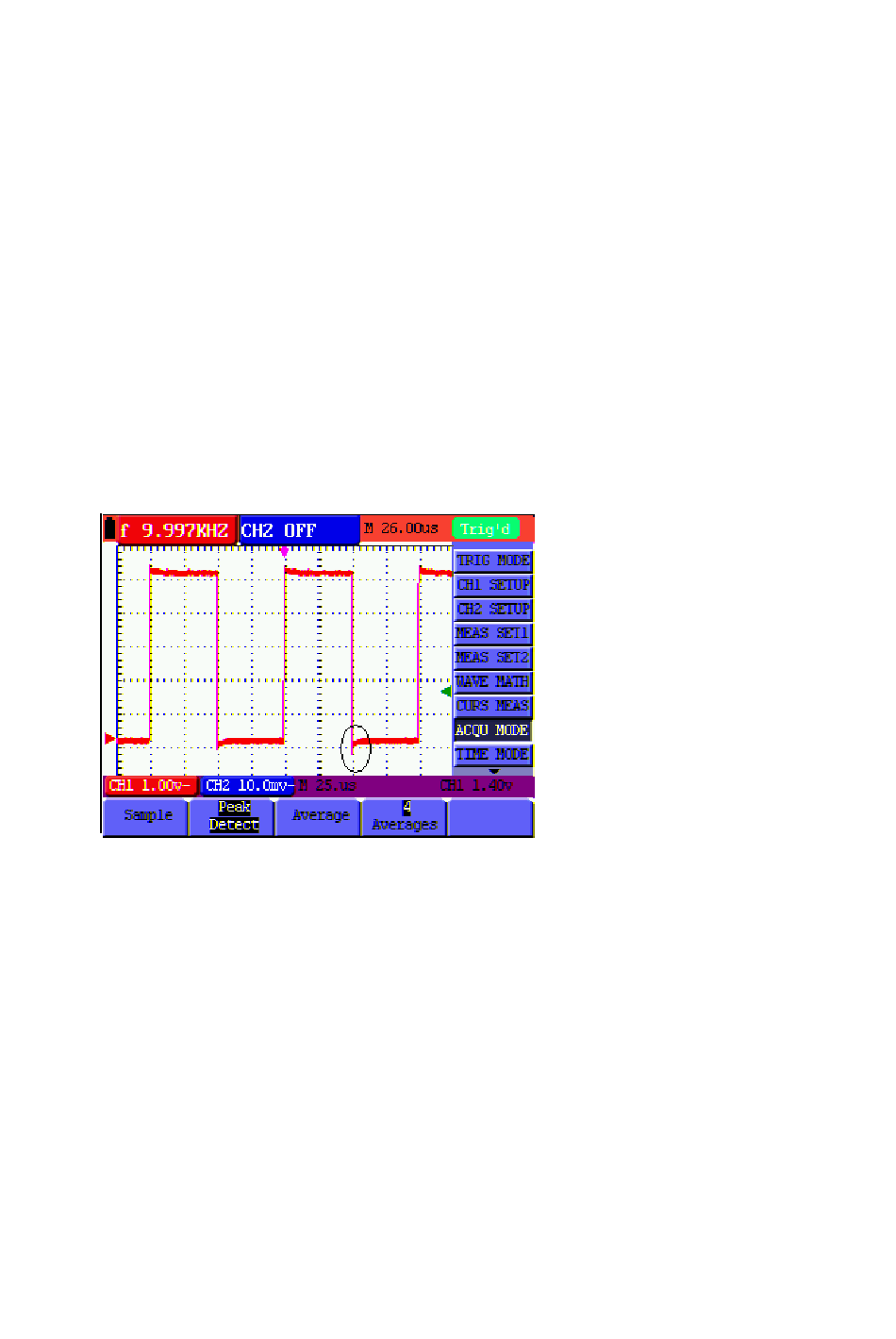

Figure 15: Peak Detection
C G
APTURE LITCHES
