System Status Menu - Extech Instruments MS420 User Manual

Fig 40: 5V square wave output adaptor
S S M
YSTEM TATUS
The system status menu is used to display configuration information concerning horizontal,
vertical, trigger, and other systems. Follow the steps below to check status:
1. Press the MENU key; the function menu will then appear at the right side of the
screen.
2. Press the MENU ▲ or MENU ▼ key to select SYSTEM STAT. Four (4) selectable
options will then appear at the bottom of the screen.
3. Sequentially press F1 through F4 to view the corresponding status information.
Refer to Figure 46.
ENU

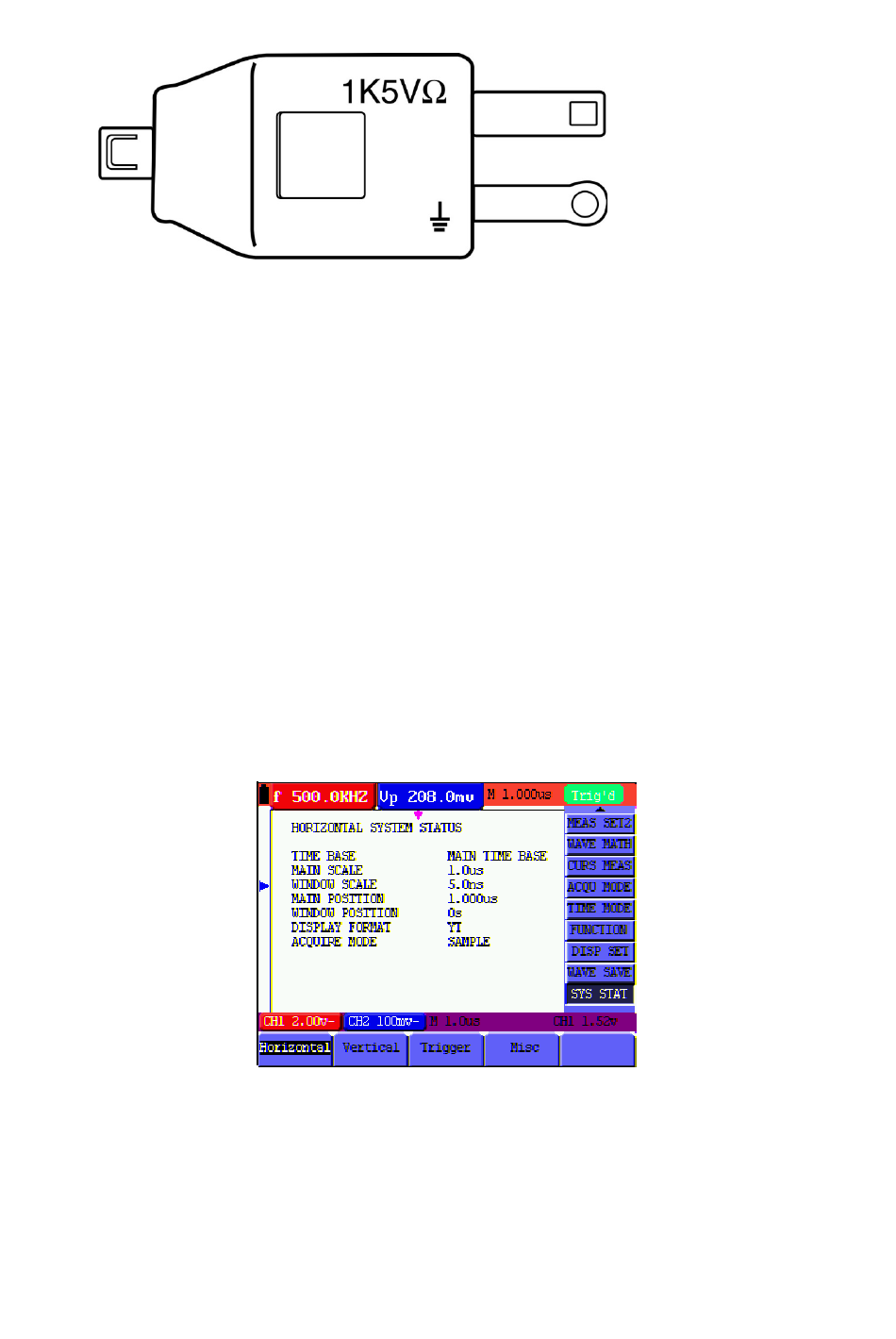

Figure 46: System Status
